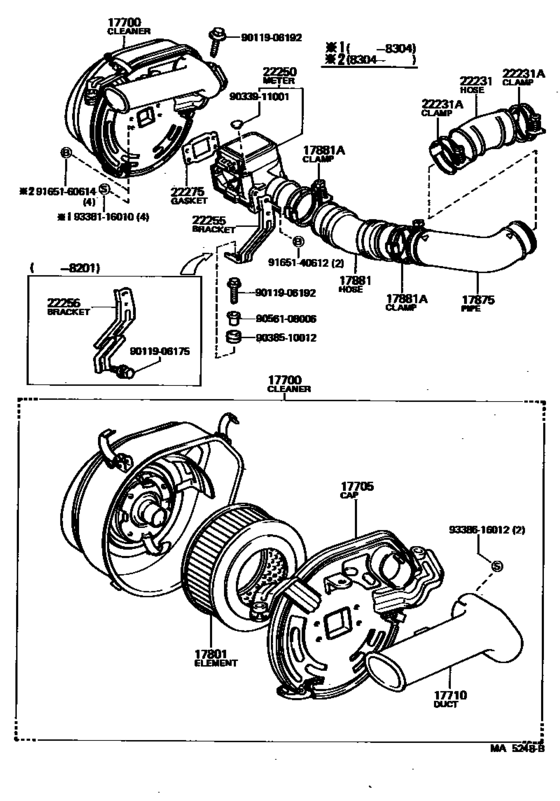

Air Cleaner ([07.1981 - 08.1983] (8107-8308)3TEU) Diagram Toyota CELICA
- Year
- 1981 - 1982
- Sales region
- Japan
- Frame
- TA63
- grade
- ST
- body
- CP
- ENGINE
- 3TEU
- TRANSMISSION
- ATM
- From
- 07.1981
- To
- 10.1982
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-28070 Cleaner Assy, Air[07.1981 - 08.1983] 3TEU..TA63 |
17700-28070 |
US $375.65 |
||
|
17705
|
17705
17705-28040
Cap Sub-Assy, Air Cleaner
[07.1981 - 08.1983] 3TEU..TA63 |
17705-28040 |
— | ||
|
17710
|
17710
17751-34040
Duct Sub-Assy, Air Cleaner Inlet, No.1
[07.1981 - 07.1985] 18RGEU..RA63; 2TGEU,3T#,4TGTEU..TA6# |
17751-34040 |
— | ||
|
17801
|
17801
17801-24010 Element Sub-Assy, Air Cleaner Filter[07.1981 - 08.1983] 18RGEU..RA63; 2TGEU,3TEU..TA61,63 |
17801-24010 |
US $17.63 |
||
|
17875
|
17875
17875-28010 Pipe, Intake Air Connector[07.1981 - 08.1983] 3TEU..TA63 |
17875-28010 |
US $35.67 |
||
|
17881
|
17881
17881-28010 Hose, Air Cleaner, No.1[07.1981 - 08.1983] 3TEU..TA63 |
17881-28010 |
US $61.44 |
||
|
17881A
|
17881A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[07.1981 - 08.1983] 2TGEU,3TEU..TA61,63 |
96111-10710 |
from US $2.56 |
||
|
22231
|
22231
22231-28020
Hose, Throttle Body
[07.1981 - 08.1983] 3TEU..TA63 |
22231-28020 |
— | ||
|
22231A
|
22231A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[07.1981 - 08.1983] 3TEU..TA63 |
96111-10710 |
from US $2.56 |
||
|
22250
|
22250
22250-28010 Meter Assy, Intake Air Flow[07.1981 - 08.1983] 3TEU..TA63 |
22250-28010 |
US $1,014.83 |
||
|
22255
|
22255
22255-34020
Bracket, Air Flow Meter
[07.1981 - 01.1982] 18RGEU..RA63; 2TGEU,3TEU..TA6# |
22255-34020 |
— | ||
| replacements | |||||
|
22255
|
22255
22255-34030
Bracket, Air Flow Meter
[07.1981 - 01.1982] 18RGEU..RA63; 2TGEU,3TEU..TA6# |
22255-34030 |
— | ||
|
22255
|
22255
90119-06192 BOLT[07.1981 - 01.1982] 18RGEU..RA63; 2TGEU,3TEU..TA6# |
90119-06192 |
US $1.44 |
||
|
22255
|
22255
90385-10012 New Genuine Part[07.1981 - 01.1982] 18RGEU..RA63; 2TGEU,3TEU..TA6# |
90385-10012 |
US $5.42 |
||
|
22255
|
22255
90561-08006 New Genuine Part[07.1981 - 01.1982] 18RGEU..RA63; 2TGEU,3TEU..TA6# |
90561-08006 |
US $2.80 |
||
|
22255
|
22255
22255-34030
Bracket, Air Flow Meter
[01.1982 - 07.1985] 18RGEU..RA63; 2TGEU,3T#,4TGTEU..TA6# |
22255-34030 |
— | ||
|
22275
|
22275
22275-26021 Gasket, Air Flow Meter[07.1981 - 08.1983] 2TGEU,3TEU..TA61,63 |
22275-26021 |
US $5.39 |
||
| replacement | |||||
|
22275
|
22275
22275-26022 Gasket, Air Flow Meter[07.1981 - 08.1983] 2TGEU,3TEU..TA61,63 |
22275-26022 |
US $5.82 |
||
|
9011906175
|
9011906175
90119-06175 New Genuine Part |
90119-06175 |
US $1.75 |
||
|
9011906192
|
9011906192
90119-06192 BOLT |
90119-06192 |
US $1.44 |
||
|
9033911001
|
9033911001
90339-11001
New Genuine Part
|
90339-11001 |
— | ||
|
9038510012
|
9038510012
90385-10012 New Genuine Part |
90385-10012 |
US $5.42 |
||
|
9056108006
|
9056108006
90561-08006 New Genuine Part |
90561-08006 |
US $2.80 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $0.87 |
||
|
9338616012
|
9338616012
93386-16012 New Genuine Part |
93386-16012 |
US $1.02 |
||
