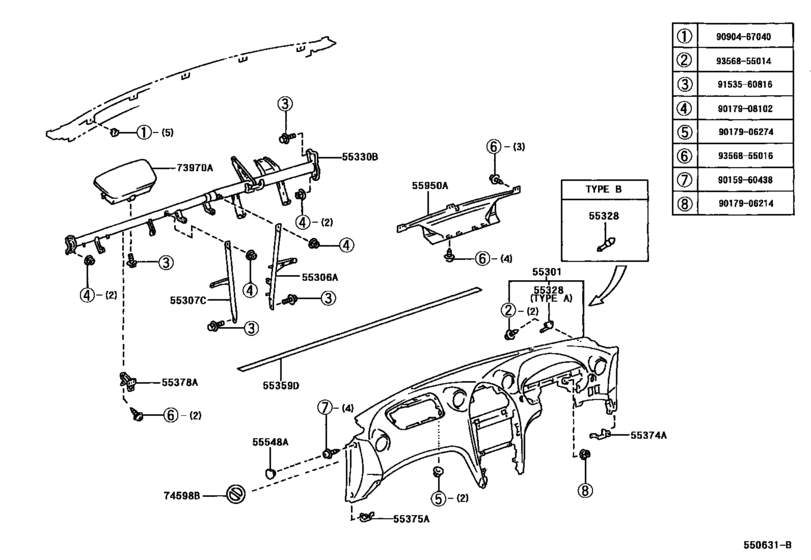

Instrument Panel & Glove Compartment ([08.1999 - 09.2005] (9908-0509)) Diagram Toyota CELICA
- Year
- 1999 - 2005
- Sales region
- General
- Frame
- ZZT231
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 08.1999
- To
- 09.2005
- Gear Shift Type
- 6F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55301-20190-B0 Panel Sub-Assy, Instrument[08.1999 - 08.2002] ZZT231 AMETHYST,TRIM20,21,22 |
55301-20190-B0 |
US $662.48 |
||
| replacement | |||||
|
55301
|
55301
55301-20190-B1 Panel Sub-Assy, Instrument[08.1999 - 08.2002] ZZT231 AMETHYST,TRIM20,21,22 |
55301-20190-B1 |
US $663.94 |
||
|
55301
|
55301
55301-20190-B1 Panel Sub-Assy, Instrument[08.2002 - 09.2005] ZZT231 DK.GRAY,TRIM20,21,22 |
55301-20190-B1 |
US $663.94 |
||
|
55306A
|
55306A
55306-20310 Brace Sub-Assy, Instrument Panel, No.1[08.1999 - 08.2002] ZZT231 |
55306-20310 |
US $29.12 |
||
|
55307C
|
55307C
55307-20190 Brace Sub-Assy, Instrument Panel, No.2[08.1999 - 08.2002] ZZT231 |
55307-20190 |
US $29.12 |
||
|
55328
|
55328
55328-20120 Pin, Instrument Panel, No.1[08.1999 - 08.2002] ZZT231 TYPE A:REFER TO ILLUSTRATION |
55328-20120 |
US $4.95 |
||
|
55328
|
55328
90249-04029 Pin, Instrument Panel, No.1[08.1999 - 08.2002] ZZT231 TYPE B:REFER TO ILLUSTRATION |
90249-04029 |
US $3.32 |
||
|
55330B
|
55330B
55330-20290 Reinforcement Assy, Instrument Panel[08.1999 - 08.2002] ZZT231 |
55330-20290 |
US $206.75 |
||
|
55359D
|
55359D
55359-20030 Cushion, Instrument Panel, No.5[08.1999 - 08.2002] ZZT231 |
55359-20030 |
US $22.28 |
||
|
55374A
|
55374A
55376-20180 Bracket, Instrument Panel Lower Mounting, Rh[08.1999 - 08.2002] ZZT231 |
55376-20180 |
US $4.95 |
||
|
55375A
|
55375A
55375-20110 Bracket, Instrument Panel Lower Mounting, Lh[08.1999 - 08.2002] ZZT231 |
55375-20110 |
US $4.95 |
||
|
55378A
|
55378A
55308-20230 Bracket, Glove Compartment Door Lock Mounting[08.1999 - 08.2002] ZZT231 |
55308-20230 |
US $11.07 |
||
|
55548A
|
55548A
55548-20120-B0
Cover, Instrument Panel Hole
[08.1999 - 08.2002] ZZT231 AMETHYST,TRIM20,21,22 |
55548-20120-B0 |
— | ||
| replacement | |||||
|
55548A
|
55548A
55548-20120-B1 Cover, Instrument Panel Hole[08.1999 - 08.2002] ZZT231 AMETHYST,TRIM20,21,22 |
55548-20120-B1 |
US $2.45 |
||
|
55548A
|
55548A
55548-20120-B1 Cover, Instrument Panel Hole[08.2002 - 09.2005] ZZT231 DK.GRAY,TRIM20,21,22 |
55548-20120-B1 |
US $2.45 |
||
|
55950A
|
55950A
55950-20190 Nozzle Assy, Defroster[08.1999 - 08.2002] ZZT231 |
55950-20190 |
US $62.32 |
||
|
73970A
|
73970A
73970-20070-B0 Air Bag Assy, Instrument Panel Passenger[08.1999 - 08.2002] ZZT231 AMETHYST,TRIM20,21,22 |
73970-20070-B0 |
US $1,776.32 |
||
| replacement | |||||
|
73970A
|
73970A
73970-20070-B1 Air Bag Assy, Instrument Panel Passenger[08.1999 - 08.2002] ZZT231 AMETHYST,TRIM20,21,22 |
73970-20070-B1 |
US $1,776.32 |
||
|
73970A
|
73970A
73970-20070-B1 Air Bag Assy, Instrument Panel Passenger[08.2002 - 09.2005] ZZT231 DK.GRAY,TRIM20,21,22 |
73970-20070-B1 |
US $1,776.32 |
||
|
74598B
|
74598B
74598-20010 Label, Driver & Passenger Air Bag Caution[08.1999 - 08.2002] ZZT231 |
74598-20010 |
US $1.44 |
||
|
9015960438
|
9015960438
90159-60438 New Genuine Part |
90159-60438 |
US $1.60 |
||
|
9017906214
|
9017906214
90179-06214 NUT |
90179-06214 |
from US $0.96 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.56 |
||
|
9090467040
|
9090467040
90904-67040 New Genuine Part |
90904-67040 |
US $3.06 |
||
|
9153560816
|
9153560816
91535-60816 BOLT WWASHER |
91535-60816 |
US $1.05 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
