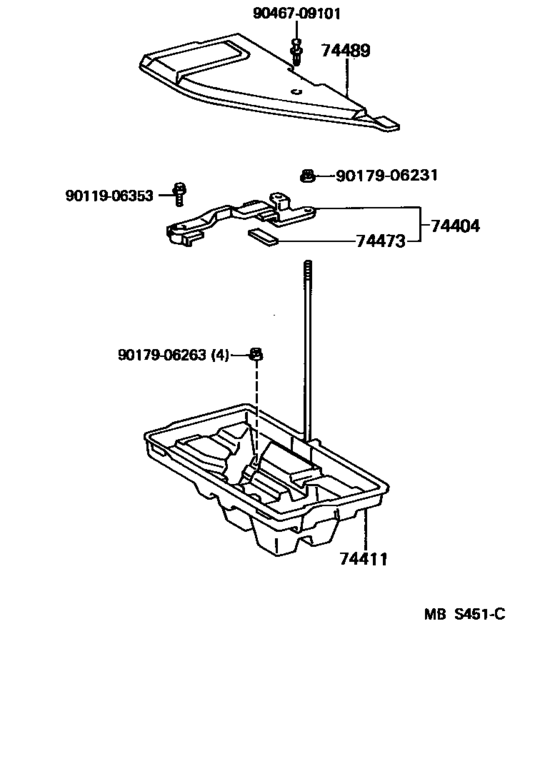

Battery Carrier ([11.1989 - ] (8911- )) Diagram Toyota CELSIOR
- Year
- 1989 - 1994
- Sales region
- Japan
- Frame
- UCF10
- grade
- A
- body
- SED
- ENGINE
- 1UZFE
- From
- 11.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74404
|
74404
74404-50010
Plate Sub-Assy, Battery Set
[11.1989 - 10.1994] UCF1# |
74404-50010 |
— | ||
|
74411
|
74411
74410-50010 Carrier, Battery[11.1989 - 10.1994] UCF1# |
74410-50010 |
US $135.41 |
||
|
74473
|
74473
74473-22010 Spacer, Battery[11.1989 - 10.1994] UCF1# |
74473-22010 |
US $4.89 |
||
|
74489
|
74489
74489-50010
Cover, Battery Clamp
[11.1989 - 08.1992] UCF1# |
74489-50010 |
— | ||
|
74489
|
74489
74489-50020
Cover, Battery Clamp
[08.1992 - 10.1994] UCF1# |
74489-50020 |
— | ||
|
9011906353
|
9011906353
90119-06353
LEXSCREW
|
90119-06353 |
— | ||
| replacement | |||||
|
9011906353
|
9011906353
90119-06420 BOLT WWASHER |
90119-06420 |
from US $1.46 |
||
|
9017906231
|
9017906231
90179-06231
Clip(For Front Bumper), No.1
|
90179-06231 |
— | ||
| replacement | |||||
|
9017906231
|
9017906231
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9017906263
|
9017906263
90179-06263 Nut (For Rear Wiper Arm Setting) |
90179-06263 |
US $1.89 |
||
| replacement | |||||
|
9017906263
|
9017906263
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046709101
|
9046709101
90467-09101 CLIP |
90467-09101 |
from US $1.28 |
||
