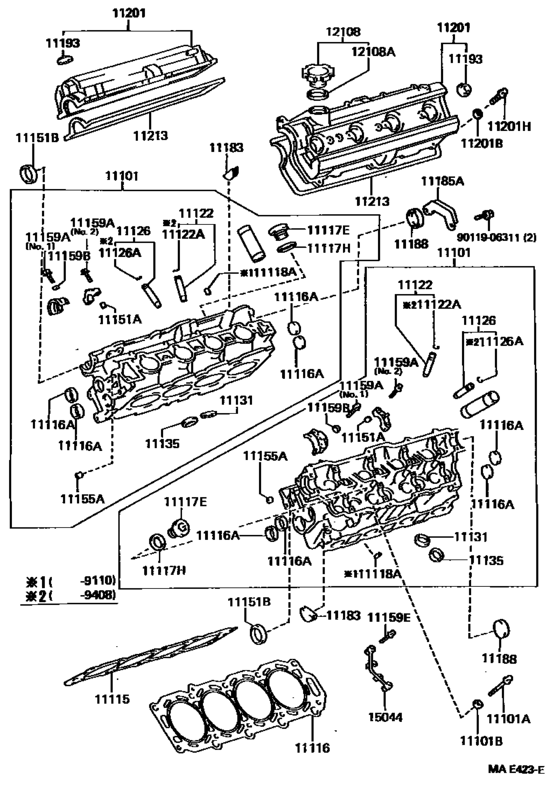

Cylinder Head ([11.1989 - ] (8911- )) Diagram Toyota CELSIOR
- Year
- 1989 - 1994
- Sales region
- Japan
- Frame
- UCF10
- grade
- A
- body
- SED
- ENGINE
- 1UZFE
- From
- 11.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-59115 Head Sub-Assy, Cylinder[11.1989 - 10.1991] 1UZFE..UCF1# |
11101-59115 |
US $2,198.56 |
||
| replacements | |||||
|
11101
|
11101
11101-59145 Head Sub-Assy, Cylinder[11.1989 - 10.1991] 1UZFE..UCF1# |
11101-59145 |
US $2,169.44 |
||
|
11101
|
11101
11101-59116 Head Sub-assy, Cylinder[11.1989 - 10.1991] 1UZFE..UCF1# |
11101-59116 |
US $2,184 |
||
|
11101
|
11101
90913-02123 Seal Or Ring, O(For Valve Stem Oil)[11.1989 - 10.1991] 1UZFE..UCF1# |
90913-02123 |
US $6.24 |
||
|
11101
|
11101
90919-15444
Cord, Spark Plug Resistive, No.1
[11.1989 - 10.1991] 1UZFE..UCF1# |
90919-15444 |
— | ||
|
11101
|
11101
90919-15445
Cord, Spark Plug Resistive, No.2
[11.1989 - 10.1991] 1UZFE..UCF1# |
90919-15445 |
— | ||
|
11101
|
11101
90919-15446
Cord, Spark Plug Resistive, No.3
[11.1989 - 10.1991] 1UZFE..UCF1# |
90919-15446 |
— | ||
|
11101
|
11101
90919-15447
Cord, Spark Plug Resistive, No.4
[11.1989 - 10.1991] 1UZFE..UCF1# |
90919-15447 |
— | ||
|
11101
|
11101
90919-15448 Cord, Spark Plug Resistive, No.5[11.1989 - 10.1991] 1UZFE..UCF1# |
90919-15448 |
US $35.24 |
||
|
11101
|
11101
90919-15449
Cord, Spark Plug Resistive, No.6
[11.1989 - 10.1991] 1UZFE..UCF1# |
90919-15449 |
— | ||
|
11101
|
11101
90919-15450 Cord, Spark Plug Resistive, No.7[11.1989 - 10.1991] 1UZFE..UCF1# |
90919-15450 |
US $30.87 |
||
|
11101
|
11101
90919-15451
Cord, Spark Plug Resistive, No.8
[11.1989 - 10.1991] 1UZFE..UCF1# |
90919-15451 |
— | ||
|
11101
|
11101
11101-59125 Head Sub-Assy, Cylinder[10.1991 - 08.1994] 1UZFE..UCF1# |
11101-59125 |
US $2,169.44 |
||
| replacements | |||||
|
11101
|
11101
11101-59145 Head Sub-Assy, Cylinder[10.1991 - 08.1994] 1UZFE..UCF1# |
11101-59145 |
US $2,169.44 |
||
|
11101
|
11101
90919-15444
Cord, Spark Plug Resistive, No.1
[10.1991 - 08.1994] 1UZFE..UCF1# |
90919-15444 |
— | ||
|
11101
|
11101
90919-15445
Cord, Spark Plug Resistive, No.2
[10.1991 - 08.1994] 1UZFE..UCF1# |
90919-15445 |
— | ||
|
11101
|
11101
90919-15446
Cord, Spark Plug Resistive, No.3
[10.1991 - 08.1994] 1UZFE..UCF1# |
90919-15446 |
— | ||
|
11101
|
11101
90919-15447
Cord, Spark Plug Resistive, No.4
[10.1991 - 08.1994] 1UZFE..UCF1# |
90919-15447 |
— | ||
|
11101
|
11101
90919-15448 Cord, Spark Plug Resistive, No.5[10.1991 - 08.1994] 1UZFE..UCF1# |
90919-15448 |
US $35.24 |
||
|
11101
|
11101
90919-15449
Cord, Spark Plug Resistive, No.6
[10.1991 - 08.1994] 1UZFE..UCF1# |
90919-15449 |
— | ||
|
11101
|
11101
90919-15450 Cord, Spark Plug Resistive, No.7[10.1991 - 08.1994] 1UZFE..UCF1# |
90919-15450 |
US $30.87 |
||
|
11101
|
11101
90919-15451
Cord, Spark Plug Resistive, No.8
[10.1991 - 08.1994] 1UZFE..UCF1# |
90919-15451 |
— | ||
|
11101
|
11101
90913-02123 Seal Or Ring, O(For Valve Stem Oil)[10.1991 - 08.1994] 1UZFE..UCF1# |
90913-02123 |
US $6.24 |
||
|
11101
|
11101
11101-59145 Head Sub-Assy, Cylinder[08.1994 - 10.1994] 1UZFE..UCF1# |
11101-59145 |
US $2,169.44 |
||
|
11101A
|
11101A
90910-02088 Bolt(For Cylinder Head Set)[11.1989 - 10.1994] 1UZFE..UCF1# |
90910-02088 |
US $5.12 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[11.1989 - 10.1994] 1UZFE..UCF1# |
90201-10344 |
from US $1.07 |
||
|
11115
|
11115
11115-50020
Gasket, Cylinder Head
[11.1989 - 10.1994] 1UZFE..UCF1# |
11115-50020 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-50021 Gasket, Cylinder Head[11.1989 - 10.1994] 1UZFE..UCF1# |
11115-50021 |
from US $72.79 |
||
|
11116
|
11116
11116-50010
Gasket, Cylinder Head, No.2
[11.1989 - 10.1994] 1UZFE..UCF1# |
11116-50010 |
— | ||
| replacement | |||||
|
11116
|
11116
11116-50011 Gasket, Cylinder Head, No.2[11.1989 - 10.1994] 1UZFE..UCF1# |
11116-50011 |
US $75.26 |
||
|
11116A
|
11116A
96411-43000 Plug, Tight, No.1[11.1989 - 10.1994] 1UZFE..UCF1# |
96411-43000 |
from US $3.84 |
||
|
11117E
|
11117E
90341-27006 Plug, W/head Straight Screw, No.1[11.1989 - 10.1994] 1UZFE..UCF1# |
90341-27006 |
from US $5.12 |
||
|
11117H
|
11117H
90430-27005 Gasket(For Cylinder Head Screw Plug)[11.1989 - 10.1994] 1UZFE..UCF1# |
90430-27005 |
from US $1.12 |
||
|
11118A
|
11118A
90334-10009 Plug, Straight, No.1[11.1989 - 10.1991] 1UZFE..UCF1# |
90334-10009 |
US $2.62 |
||
|
11122
|
11122
11122-16020 Bush, Intake Valve Guide[11.1989 - 08.1994] 1UZFE..UCF1# ＳＴＤ |
11122-16020 |
from US $12.46 |
||
|
11122
|
11122
11122-74030 Bush, Intake Valve Guide[08.1994 - 10.1994] 1UZFE..UCF1# ＳＴＤ |
11122-74030 |
US $8.80 |
||
|
11122
|
11122
11123-16020 Bush, Intake Valve Guide[11.1989 - 08.1994] 1UZFE..UCF1# Ｏ／Ｓ ０．０５ |
11123-16020 |
US $11.18 |
||
|
11122
|
11122
11123-74030 Bush, Intake Valve Guide[08.1994 - 10.1994] 1UZFE..UCF1# Ｏ／Ｓ ０．０５ |
11123-74030 |
US $7.86 |
||
|
11122A
|
11122A
90520-10004
Ring, Shaft Snap (For Valve Guide Bush)
[11.1989 - 08.1994] 1UZFE..UCF1# |
90520-10004 |
— | ||
|
11126
|
11126
11126-50040 Bush, Exhaust Valve Guide[11.1989 - 08.1994] 1UZFE..UCF1# ＳＴＤ |
11126-50040 |
US $10.31 |
||
|
11126
|
11126
11126-50050 Bush, Exhaust Valve Guide[08.1994 - 10.1994] 1UZFE..UCF1# ＳＴＤ |
11126-50050 |
US $10.34 |
||
|
11126
|
11126
11127-50040 Bush, Exhaust Valve Guide[11.1989 - 08.1994] 1UZFE..UCF1# Ｏ／Ｓ ０．０５ |
11127-50040 |
US $6.70 |
||
|
11126
|
11126
11127-50050 Bush, Exhaust Valve Guide[08.1994 - 10.1994] 1UZFE..UCF1# Ｏ／Ｓ ０．０５ |
11127-50050 |
US $10.34 |
||
|
11126A
|
11126A
90520-10004
Ring, Shaft Snap (For Valve Guide Bush)
[11.1989 - 08.1994] 1UZFE..UCF1# |
90520-10004 |
— | ||
|
11131
|
11131
11131-50020 Seat, Intake Valve[11.1989 - 10.1994] 1UZFE..UCF1# ＳＴＤ |
11131-50020 |
US $16.45 |
||
|
11131
|
11131
11132-50020 Seat, Intake Valve[11.1989 - 10.1994] 1UZFE..UCF1# Ｏ／Ｓ ０．０３ |
11132-50020 |
US $10.34 |
||
|
11135
|
11135
11135-50020 Seat, Exhaust Valve[11.1989 - 10.1994] 1UZFE..UCF1# ＳＴＤ |
11135-50020 |
US $16.45 |
||
|
11135
|
11135
11136-50020 Seat, Exhaust Valve[11.1989 - 10.1994] 1UZFE..UCF1# Ｏ／Ｓ ０．０３ |
11136-50020 |
US $10.34 |
||
|
11151A
|
11151A
90253-10006 Pin, Ring(For Camshaft Bearing Cap Setting)[11.1989 - 10.1994] 1UZFE..UCF1# 長さ＝７，外径＝１０ |
90253-10006 |
US $0.79 |
||
|
11151B
|
11151B
90311-38036 Seal, Oil(For Camshaft Setting)[11.1989 - 10.1994] 1UZFE..UCF1# |
90311-38036 |
from US $4.96 |
||
|
11155A
|
11155A
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[11.1989 - 10.1994] 1UZFE..UCF1# |
90253-11001 |
US $1.92 |
||
|
11159A
|
11159A
90105-07003 Bolt(For Head To Camshaft Bearing Cap)[11.1989 - 10.1994] 1UZFE..UCF1# ＮＯ．１ |
90105-07003 |
US $1.89 |
||
|
11159A
|
11159A
90119-07007 Bolt(For Head To Camshaft Bearing Cap)[11.1989 - 10.1994] 1UZFE..UCF1# ＮＯ．２ |
90119-07007 |
US $0.96 |
||
|
11159B
|
11159B
90210-07003 Washer, Seal(For Head To Camshaft Bearing Cap)[11.1989 - 10.1994] 1UZFE..UCF1# |
90210-07003 |
from US $3.84 |
||
|
11159E
|
11159E
90119-07006 Bolt(For Head To Camshaft Bearing Cap)[11.1989 - 10.1994] 1UZFE..UCF1# |
90119-07006 |
US $1.31 |
||
|
11183
|
11183
11183-50010 Plug, Semicircular[11.1989 - 10.1994] 1UZFE..UCF1# |
11183-50010 |
from US $7.78 |
||
|
11185A
|
11185A
11185-50010 Cover, Camshaft Rear Housing, No.1[02.1990 - 10.1994] 1UZFE..UCF1# |
11185-50010 |
US $6.84 |
||
| replacement | |||||
|
11185A
|
11185A
11185-50011 Cover, Camshaft Rear Housing, No.1[02.1990 - 10.1994] 1UZFE..UCF1# |
11185-50011 |
US $6.70 |
||
|
11188
|
11188
11188-62010 Plug, Camshaft Housing[11.1989 - 10.1994] 1UZFE..UCF1# |
11188-62010 |
from US $9.61 |
||
|
11193
|
11193
11193-15010 Gasket(For Spark Plug Tube)[11.1989 - 10.1994] 1UZFE..UCF1# |
11193-15010 |
from US $8.39 |
||
|
11201
|
11201
11201-50020 Cover Sub-Assy, Cylinder Head[11.1989 - 10.1994] 1UZFE..UCF1# 右側 |
11201-50020 |
US $346.53 |
||
| replacements | |||||
|
11201
|
11201
11201-50021
Cover Sub-Assy, Cylinder Head
[11.1989 - 10.1994] 1UZFE..UCF1# 右側 |
11201-50021 |
— | ||
|
11201
|
11201
12260-50010 Hose Assy, Ventilation[11.1989 - 10.1994] 1UZFE..UCF1# 右側 |
12260-50010 |
US $17.47 |
||
|
11201
|
11201
90467-16014 Clip(For Vacuum Hose)[11.1989 - 10.1994] 1UZFE..UCF1# 右側 |
90467-16014 |
US $3.68 |
||
|
11201
|
11201
90467-22009 Clip(For Ventilation Hose No.2)[11.1989 - 10.1994] 1UZFE..UCF1# 右側 |
90467-22009 |
US $0.52 |
||
|
11201
|
11201
11202-50020 Cover Sub-Assy, Cylinder Head[11.1989 - 10.1994] 1UZFE..UCF1# 左側 |
11202-50020 |
US $346.53 |
||
|
11201B
|
11201B
90210-07001 Washer, Seal(For Cylinder Head Cover)[11.1989 - 10.1994] 1UZFE..UCF1# |
90210-07001 |
from US $2.34 |
||
|
11201H
|
11201H
90109-06163 Bolt(For Cylinder Head Cover)[11.1989 - 10.1994] 1UZFE..UCF1# |
90109-06163 |
from US $1.40 |
||
|
11213
|
11213
11213-50020
Gasket, Cylinder Head Cover
[11.1989 - 10.1994] 1UZFE..UCF1# |
11213-50020 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-50021 Gasket, Cylinder Head Cover[11.1989 - 10.1994] 1UZFE..UCF1# |
11213-50021 |
from US $22.50 |
||
|
12108
|
12108
12180-50010 Cap Sub-Assy, Oil Filler[11.1989 - 10.1994] 1UZFE..UCF1# |
12180-50010 |
from US $15.35 |
||
|
12108A
|
12108A
12195-50010 Gasket(For Oil Filler Cap)[11.1989 - 10.1994] 1UZFE..UCF1# |
12195-50010 |
US $14.72 |
||
|
15044
|
15044
15044-50010 Pipe Sub-Assy, Camshaft Oil Feed[11.1989 - 10.1994] 1UZFE..UCF1# |
15044-50010 |
US $13.10 |
||
|
9011906311
|
9011906311
90119-06311 BOLT |
90119-06311 |
US $1.60 |
||
