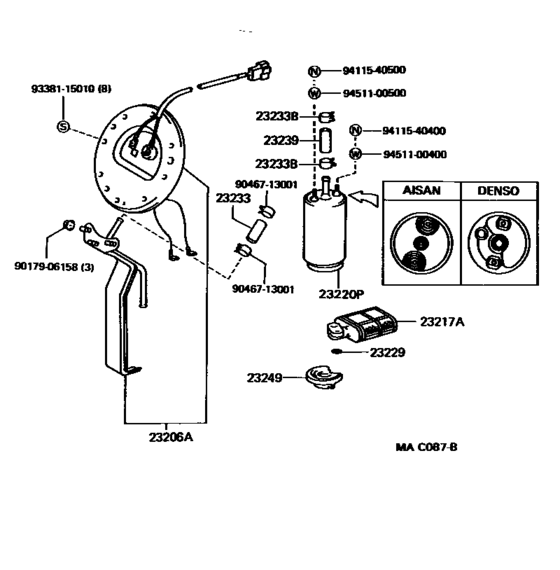

Fuel Injection System ([11.1989 - ] (8911- )) Diagram Toyota CELSIOR
- Year
- 1989 - 1994
- Sales region
- Japan
- Frame
- UCF10
- grade
- A
- body
- SED
- ENGINE
- 1UZFE
- From
- 11.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23206A
|
23206A
23206-50011
Bracket, Fuel Pump
[08.1992 - 10.1994] 1UZFE..UCF1# |
23206-50011 |
— | ||
|
23206A
|
23206A
23206-50020
Bracket, Fuel Pump
[11.1989 - 08.1992] 1UZFE..UCF1# |
23206-50020 |
— | ||
|
23217A
|
23217A
23217-16043 Filter, Fuel Pump[11.1989 - 10.1994] 1UZFE..UCF1# ＡＩＳＡＮ |
23217-16043 |
US $8 |
||
|
23217A
|
23217A
23217-50020 Filter, Fuel Pump[11.1989 - 10.1994] 1UZFE..UCF1# ＮＩＰＰＯＮＤＥＮＳＯ |
23217-50020 |
from US $6.38 |
||
|
23220P
|
23220P
23221-50010
Pump Assy, Fuel
[11.1989 - 10.1994] 1UZFE..UCF1# ＡＩＳＡＮ |
23221-50010 |
— | ||
| replacement | |||||
|
23220P
|
23220P
23221-50040 Pump Assy, Fuel[11.1989 - 10.1994] 1UZFE..UCF1# ＡＩＳＡＮ |
23221-50040 |
US $485.72 |
||
|
23220P
|
23220P
23221-50020 Pump Assy, Fuel[11.1989 - 10.1994] 1UZFE..UCF1# ＮＩＰＰＯＮＤＥＮＳＯ |
23221-50020 |
US $519.40 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[11.1989 - 08.1992] 1UZFE..UCF1# |
23229-16010 |
from US $0.88 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[11.1989 - 08.1992] 1UZFE..UCF1# |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23239-16010 Hose, Fuel Pump[11.1989 - 10.1994] 1UZFE..UCF1# |
23239-16010 |
from US $1.72 |
||
|
23233B
|
23233B
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.1989 - 10.1994] 1UZFE..UCF1# |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[11.1989 - 10.1994] 1UZFE..UCF1# |
96135-51300 |
from US $1.92 |
||
|
23239
|
23239
23239-63010 Hose, Fuel Pump[11.1989 - 10.1994] 1UZFE..UCF1# |
23239-63010 |
US $14.56 |
||
|
23249
|
23249
23249-74150 Rubber, Cushion(For Fuel Pump)[11.1989 - 10.1994] 1UZFE..UCF1# |
23249-74150 |
US $17.63 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $0.96 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
