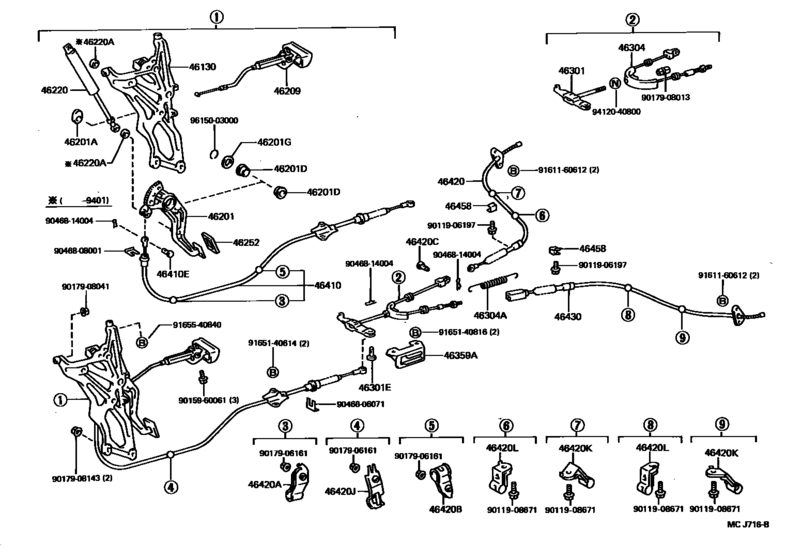

Parking Brake & Cable ([11.1989 - ] (8911- )) Diagram Toyota CELSIOR
- Year
- 1989 - 1994
- Sales region
- Japan
- Frame
- UCF10
- grade
- A
- body
- SED
- ENGINE
- 1UZFE
- From
- 11.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46130
|
46130
46130-50020 Bracket Assy, Parking Brake Pedal[11.1989 - 12.1989] UCF1# |
46130-50020 |
US $133.95 |
||
| replacement | |||||
|
46130
|
46130
46130-50021 Bracket Assy, Parking Brake Pedal[11.1989 - 12.1989] UCF1# |
46130-50021 |
US $132.50 |
||
|
46130
|
46130
46130-50021 Bracket Assy, Parking Brake Pedal[12.1989 - 10.1994] UCF1# |
46130-50021 |
US $132.50 |
||
|
46201
|
46201
46201-50020 Pedal Sub-Assy, Parking Brake[11.1989 - 10.1994] UCF1# |
46201-50020 |
US $65.08 |
||
|
46201A
|
46201A
90541-15013 Cushion(For Parking Brake Pedal)[11.1989 - 10.1994] UCF1# |
90541-15013 |
US $5.68 |
||
|
46201D
|
46201D
90386-30002 Bush(For Parking Brake Pedal)[11.1989 - 10.1994] UCF1# 右側 |
90386-30002 |
US $1.60 |
||
|
46201D
|
46201D
90386-30003 Bush(For Parking Brake Pedal)[11.1989 - 10.1994] UCF1# 左側 |
90386-30003 |
US $1.60 |
||
|
46201G
|
46201G
90560-30010 Spacer(For Parking Brake Pedal)[11.1989 - 10.1994] UCF1# |
90560-30010 |
US $1.46 |
||
|
46209
|
46209
46209-50020-03 Cable Sub-Assy, Parking Brake Release[11.1989 - 08.1992] UCF1# SHADOW GRAY,TRIM1# |
46209-50020-03 |
US $45.72 |
||
| replacement | |||||
|
46209
|
46209
46209-50020-P0 Cable Sub-Assy, Parking Brake Release[11.1989 - 08.1992] UCF1# SHADOW GRAY,TRIM1# |
46209-50020-P0 |
US $45.72 |
||
|
46209
|
46209
46209-50020-04 Cable Sub-Assy, Parking Brake Release[11.1989 - 08.1992] UCF1# DARK BLUE,TRIM8# |
46209-50020-04 |
US $45.72 |
||
| replacement | |||||
|
46209
|
46209
46209-50020-W3 Cable Sub-Assy, Parking Brake Release[11.1989 - 08.1992] UCF1# DARK BLUE,TRIM8# |
46209-50020-W3 |
US $45.72 |
||
|
46209
|
46209
46209-50020-P0 Cable Sub-Assy, Parking Brake Release[08.1992 - 10.1994] UCF1# SHADOW GRAY,TRIM1# |
46209-50020-P0 |
US $45.72 |
||
|
46209
|
46209
46209-50020-W3 Cable Sub-Assy, Parking Brake Release[08.1992 - 10.1994] UCF1# DK.BLUE,TRIM8# |
46209-50020-W3 |
US $45.72 |
||
|
46220
|
46220
46220-30010 Absorber Assy, Parking Brake Pedal Return[11.1989 - 10.1994] UCF1# |
46220-30010 |
US $108.33 |
||
|
46220A
|
46220A
90540-07010 Cushion(For Parking Brake Pedal Return Absorber)[11.1989 - 01.1994] UCF1# |
90540-07010 |
US $2.62 |
||
|
46252
|
46252
46252-20010 Pad, Parking Pedal[10.1991 - 10.1994] UCF1# |
46252-20010 |
from US $6.90 |
||
|
46252
|
46252
46252-50010 Pad, Parking Pedal[11.1989 - 10.1991] UCF1# |
46252-50010 |
from US $7.39 |
||
|
46301
|
46301
46301-50010 Lever Sub-Assy, Parking Brake Intermediate[11.1989 - 05.1994] UCF1# |
46301-50010 |
US $22.86 |
||
| replacement | |||||
|
46301
|
46301
46301-50020 Lever Sub-Assy, Parking Brake Intermediate[11.1989 - 05.1994] UCF1# |
46301-50020 |
US $15.87 |
||
|
46301
|
46301
46301-50020 Lever Sub-Assy, Parking Brake Intermediate[05.1994 - 10.1994] UCF1# |
46301-50020 |
US $15.87 |
||
|
46301E
|
46301E
90240-08059 Pin, W/hole(For Intermediate Lever)[11.1989 - 10.1994] UCF1# |
90240-08059 |
from US $2.15 |
||
|
46304
|
46304
46304-50010
Equalizer Sub-Assy, Parking Brake
[11.1989 - 08.1992] UCF1# |
46304-50010 |
— | ||
| replacement | |||||
|
46304
|
46304
46304-50020
Equalizer Sub-Assy, Parking Brake
[11.1989 - 08.1992] UCF1# |
46304-50020 |
— | ||
|
46304
|
46304
46304-50020
Equalizer Sub-Assy, Parking Brake
[08.1992 - 10.1994] UCF1# |
46304-50020 |
— | ||
|
46304A
|
46304A
90507-20022 Spring, Tension(For Parking Brake Equalizer)[11.1989 - 08.1992] UCF1# |
90507-20022 |
US $9.03 |
||
| replacement | |||||
|
46304A
|
46304A
90507-22002 Spring, Tension(For Intermediate Lever)[11.1989 - 08.1992] UCF1# |
90507-22002 |
US $9.03 |
||
|
46304A
|
46304A
90905-07003 Spring, Tension(For Parking Brake Equalizer)[08.1992 - 10.1994] UCF1# |
90905-07003 |
US $9.90 |
||
|
46359A
|
46359A
46359-50010 Bracket, Parking Brake Intermediate Lever Support[11.1989 - 05.1994] UCF1# |
46359-50010 |
US $6.41 |
||
| replacement | |||||
|
46359A
|
46359A
46359-50020 Guide, Parking Brake Intermediate Lever[11.1989 - 05.1994] UCF1# |
46359-50020 |
US $4.37 |
||
|
46359A
|
46359A
46359-50020 Guide, Parking Brake Intermediate Lever[05.1994 - 10.1994] UCF1# |
46359-50020 |
US $4.37 |
||
|
46410
|
46410
46410-50020 Cable Assy, Parking Brake, No.1[11.1989 - 08.1992] UCF1# |
46410-50020 |
US $58.24 |
||
| replacement | |||||
|
46410
|
46410
46410-50040 Cable Assy, Parking Brake, No.1[11.1989 - 08.1992] UCF1# |
46410-50040 |
US $57.95 |
||
|
46410
|
46410
46410-50040 Cable Assy, Parking Brake, No.1[08.1992 - 10.1994] UCF1# |
46410-50040 |
US $57.95 |
||
|
46410E
|
46410E
90240-08062 Pin, W/hole(For Intermediate Lever)[11.1989 - 10.1994] UCF1# |
90240-08062 |
US $1.60 |
||
|
46420
|
46420
46420-50010
Cable Assy, Parking Brake, No.2
[11.1989 - 08.1992] UCF1# |
46420-50010 |
— | ||
| replacement | |||||
|
46420
|
46420
46420-50020
Cable Assy, Parking Brake, No.2
[11.1989 - 08.1992] UCF1# |
46420-50020 |
— | ||
|
46420
|
46420
46420-50020
Cable Assy, Parking Brake, No.2
[08.1992 - 10.1994] UCF1# |
46420-50020 |
— | ||
|
46420A
|
46420A
90949-01578 Clamp, No.1(For Parking Brake Cable)[11.1989 - 10.1994] UCF1# |
90949-01578 |
US $3.93 |
||
|
46420B
|
46420B
90949-01512
Clamp, No.2(For Parking Brake Cable)
[11.1989 - 10.1994] UCF1# |
90949-01512 |
— | ||
|
46420C
|
46420C
90240-08059 Pin, W/hole(For Intermediate Lever)[11.1989 - 10.1994] UCF1# |
90240-08059 |
from US $2.15 |
||
|
46420J
|
46420J
90949-01515 Clamp, No.3(For Parking Brake Cable)[11.1989 - 10.1994] UCF1# |
90949-01515 |
US $3.06 |
||
|
46420K
|
46420K
90949-01517 Clamp, No.4(For Parking Brake Cable)[11.1989 - 10.1994] UCF1# 右側 |
90949-01517 |
US $7.43 |
||
|
46420K
|
46420K
90949-01533 Clamp, No.4(For Parking Brake Cable)[11.1989 - 10.1994] UCF1# 左側 |
90949-01533 |
US $7.43 |
||
|
46420L
|
46420L
90949-01518 Clamp, No.5(For Parking Brake Cable)[11.1989 - 10.1994] UCF1# 右側 |
90949-01518 |
US $7.86 |
||
|
46420L
|
46420L
90949-01519 Clamp, No.5(For Parking Brake Cable)[11.1989 - 10.1994] UCF1# 左側 |
90949-01519 |
US $7.43 |
||
|
46430
|
46430
46430-50010
Cable Assy, Parking Brake, No.3
[11.1989 - 08.1992] UCF1# |
46430-50010 |
— | ||
| replacement | |||||
|
46430
|
46430
46430-50020
Cable Assy, Parking Brake, No.3
[11.1989 - 08.1992] UCF1# |
46430-50020 |
— | ||
|
46430
|
46430
46430-50020
Cable Assy, Parking Brake, No.3
[08.1992 - 10.1994] UCF1# |
46430-50020 |
— | ||
|
46458
|
46458
46458-30060 Retainer, Cable[03.1993 - 10.1994] UCF1# |
46458-30060 |
US $4.89 |
||
|
46458
|
46458
46458-50010 Retainer, Cable[11.1989 - 03.1993] UCF1# |
46458-50010 |
from US $5.44 |
||
|
9011906197
|
9011906197
90119-06197 New Genuine Part |
90119-06197 |
US $0.87 |
||
|
9011908671
|
9011908671
90119-08671 Bolt |
90119-08671 |
US $0.70 |
||
|
9015960061
|
9015960061
90159-60061 New Genuine Part |
90159-60061 |
US $1.60 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.84 |
||
|
9017908013
|
9017908013
90179-08013 Nut, Wire Adjusting, No.1 |
90179-08013 |
from US $5.12 |
||
|
9017908041
|
9017908041
90179-08041
NUT
|
90179-08041 |
— | ||
| replacement | |||||
|
9017908041
|
9017908041
90179-08017 NUT |
90179-08017 |
from US $0.80 |
||
|
9017908143
|
9017908143
90179-08143 NUT |
90179-08143 |
US $1.76 |
||
|
9046806071
|
9046806071
90468-06071 New Genuine Part |
90468-06071 |
US $1.31 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.36 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.72 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165540840
|
9165540840
91655-40840 New Genuine Part |
91655-40840 |
US $2.48 |
||
| replacement | |||||
|
9165540840
|
9165540840
91651-60840 BOLT |
91651-60840 |
US $1.44 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9615003000
|
9615003000
96150-03000 Ring, Snap(For Idle Gear No.1) |
96150-03000 |
US $2.56 |
||
