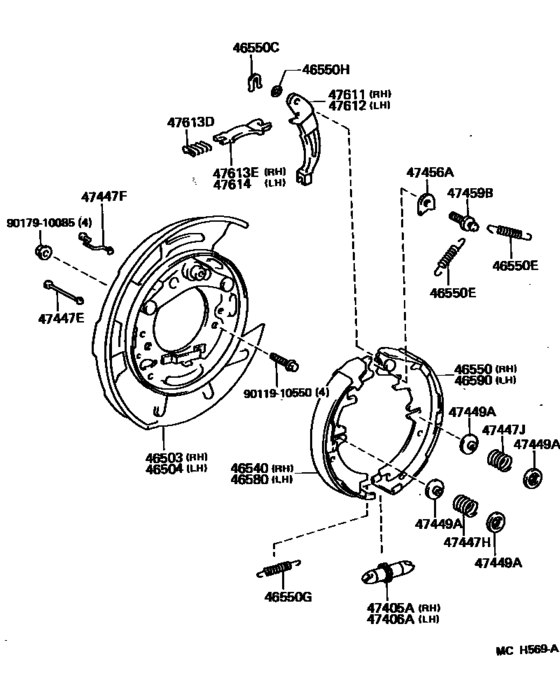

Parking Brake & Cable ([11.1989 - ] (8911- )) Diagram Toyota CELSIOR
- Year
- 1989 - 1994
- Sales region
- Japan
- Frame
- UCF10
- grade
- A
- body
- SED
- ENGINE
- 1UZFE
- From
- 11.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46503
|
46503
46503-50010
Plate Sub-Assy, Parking Brake, Rh
[11.1989 - 08.1992] UCF1# |
46503-50010 |
— | ||
|
46503
|
46503
46503-50020
Plate Sub-Assy, Parking Brake, Rh
[08.1992 - 10.1994] UCF1# |
46503-50020 |
— | ||
|
46504
|
46504
46504-50010
Plate Sub-Assy, Parking Brake, Lh
[11.1989 - 08.1992] UCF1# |
46504-50010 |
— | ||
|
46504
|
46504
46504-50020
Plate Sub-Assy, Parking Brake, Lh
[08.1992 - 10.1994] UCF1# |
46504-50020 |
— | ||
|
46540
|
46540
46540-50010 Shoe Assy, Parking Brake, Rh Or Center No.1[11.1989 - 10.1994] UCF1# |
46540-50010 |
US $28.83 |
||
|
46550
|
46550
46550-50010 Shoe Assy, Parking Brake, Rh Or Center No.2[11.1989 - 10.1994] UCF1# |
46550-50010 |
from US $24.04 |
||
|
46550C
|
46550C
90213-07018 Washer, Type C(For Parking Brake Shoe)[11.1989 - 10.1994] UCF1# |
90213-07018 |
from US $0.92 |
||
|
46550E
|
46550E
90507-20023 Spring, Tension, No.2(For Parking Brake Shoe Return)[11.1989 - 10.1994] UCF1# |
90507-20023 |
US $6.41 |
||
|
46550G
|
46550G
90507-12034 Spring, Tension, No.3(For Parking Brake Shoe Return)[11.1989 - 10.1994] UCF1# |
90507-12034 |
US $2.18 |
||
|
46550H
|
46550H
90564-09184 Shim(For Parking Brake Shoe)[11.1989 - 10.1994] UCF1# 厚さ＝０．３ |
90564-09184 |
from US $1.44 |
||
|
46550H
|
46550H
90564-09185 Shim(For Parking Brake Shoe)[11.1989 - 10.1994] UCF1# 厚さ＝０．６ |
90564-09185 |
from US $1.44 |
||
|
46550H
|
46550H
90564-09186 Shim(For Parking Brake Shoe)[11.1989 - 10.1994] UCF1# 厚さ＝０．９ |
90564-09186 |
US $1.44 |
||
|
46580
|
46580
46540-50010 Shoe Assy, Parking Brake, Rh Or Center No.1[11.1989 - 10.1994] UCF1# |
46540-50010 |
US $28.83 |
||
|
46590
|
46590
46590-50010 Shoe Assy, Parking Brake, Lh No.2[11.1989 - 10.1994] UCF1# |
46590-50010 |
from US $27.48 |
||
|
47405A
|
47405A
47405-30040 Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center[11.1989 - 10.1994] UCF1# |
47405-30040 |
from US $21.28 |
||
|
47406A
|
47406A
47406-30040 Adjuster Sub-Assy, Parking Brake Shoe, Lh[11.1989 - 10.1994] UCF1# |
47406-30040 |
from US $21.28 |
||
|
47447E
|
47447E
47447-30020 Pin, Shoe Hold Down Spring(For Front Brake)[11.1989 - 10.1994] UCF1# |
47447-30020 |
from US $1.44 |
||
| replacement | |||||
|
47447E
|
47447E
47447300201
Pin Shoe Hold Down *
[11.1989 - 10.1994] UCF1# |
47447300201 |
— | ||
|
47447F
|
47447F
47447-50010 Pin, Shoe Hold Down Spring(For Parking Brake)[11.1989 - 10.1994] UCF1# |
47447-50010 |
from US $1.50 |
||
|
47447H
|
47447H
90501-16053 Spring, Brake Shoe Hold Down[11.1989 - 10.1994] UCF1# |
90501-16053 |
from US $1.48 |
||
|
47447J
|
47447J
90501-16118 Spring, Compression(For Parking Brake Shoe Hold Down)[11.1989 - 10.1994] UCF1# |
90501-16118 |
from US $0.99 |
||
|
47449A
|
47449A
47449-22010 Cup, Brake Shoe Hold Down[11.1989 - 08.1992] UCF1# 内側 |
47449-22010 |
US $3.64 |
||
| replacement | |||||
|
47449A
|
47449A
47449-40010 Cup, Brake Shoe Hold Down[11.1989 - 08.1992] UCF1# 内側 |
47449-40010 |
from US $2.15 |
||
|
47449A
|
47449A
47449-30030 Cup, Brake Shoe Hold Down[11.1989 - 10.1994] UCF1# 外側 |
47449-30030 |
from US $1.66 |
||
|
47449A
|
47449A
47449-40010 Cup, Brake Shoe Hold Down[08.1992 - 10.1994] UCF1# 内側 |
47449-40010 |
from US $2.15 |
||
|
47456A
|
47456A
47456-20030 Plate, Shoe Guide(For Parking Brake)[11.1989 - 03.1994] UCF1# |
47456-20030 |
from US $0.86 |
||
|
47456A
|
47456A
47456-33010 Plate, Shoe Guide(For Parking Brake)[03.1994 - 10.1994] UCF1# |
47456-33010 |
US $1.92 |
||
|
47459B
|
47459B
47459-30010 Bolt, Parking Brake Shoe Guide Plate Set[11.1989 - 10.1994] UCF1# |
47459-30010 |
from US $3.71 |
||
|
47611
|
47611
47611-50010 Lever, Parking Brake Shoe, Rh[11.1989 - 10.1994] UCF1# |
47611-50010 |
US $24.64 |
||
|
47612
|
47612
47612-50010 Lever, Parking Brake Shoe, Lh[11.1989 - 10.1994] UCF1# |
47612-50010 |
US $24.64 |
||
|
47613D
|
47613D
90504-14002 Spring, Compression(For Parking Brake Shoe Strut)[11.1989 - 10.1994] UCF1# |
90504-14002 |
US $3.20 |
||
|
47613E
|
47613E
47613-28010 Strut, Parking Brake Shoe[12.1993 - 10.1994] UCF1# |
47613-28010 |
from US $8.64 |
||
|
47613E
|
47613E
47613-50010
Strut, Parking Brake Shoe
[11.1989 - 12.1993] UCF1# |
47613-50010 |
— | ||
| replacement | |||||
|
47613E
|
47613E
47613-28010 Strut, Parking Brake Shoe[11.1989 - 12.1993] UCF1# |
47613-28010 |
from US $8.64 |
||
|
47614
|
47614
47614-28010 Strut, Parking Brake Shoe[12.1993 - 10.1994] UCF1# |
47614-28010 |
from US $8.64 |
||
|
47614
|
47614
47614-50010 Strut, Parking Brake Shoe[11.1989 - 12.1993] UCF1# |
47614-50010 |
US $13.40 |
||
| replacement | |||||
|
47614
|
47614
47614-28010 Strut, Parking Brake Shoe[11.1989 - 12.1993] UCF1# |
47614-28010 |
from US $8.64 |
||
|
9011910550
|
9011910550
90119-10550 New Genuine Part |
90119-10550 |
US $1.60 |
||
| replacement | |||||
|
9011910550
|
9011910550
90080-11399 New Genuine Part |
90080-11399 |
US $2.73 |
||
|
9017910085
|
9017910085
90179-10085 NUT |
90179-10085 |
from US $2.56 |
||
