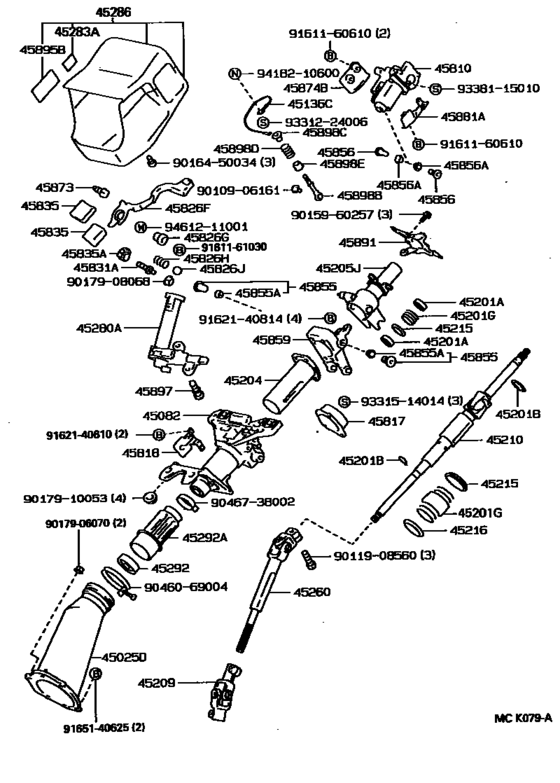

Steering Column & Shaft ([11.1989 - ] (8911- )A) Diagram Toyota CELSIOR
- Year
- 1989 - 1994
- Sales region
- Japan
- Frame
- UCF10
- grade
- A
- body
- SED
- ENGINE
- 1UZFE
- From
- 11.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-50020 Cover Sub-Assy, Steering Column Hole, No.1[11.1989 - 10.1994] UCF1# |
45025-50020 |
US $168.90 |
||
|
45082
|
45082
45082-50050 Bracket Sub-Assy, Break Away W/capsule[11.1989 - 10.1994] UCF10..A |
45082-50050 |
US $136.86 |
||
|
45136C
|
45136C
90980-07312 Cable, Bond(For Horn Earth)[11.1989 - 10.1994] UCF1# |
90980-07312 |
US $6.84 |
||
| replacement | |||||
|
45136C
|
45136C
45832-41010 Cable, Bond(For Horn Earth)[11.1989 - 10.1994] UCF1# |
45832-41010 |
US $6.81 |
||
|
45201A
|
45201A
90363-18005 Bearing(For Steering Main Shaft)[11.1989 - 10.1994] UCF1# |
90363-18005 |
from US $6.03 |
||
|
45201B
|
45201B
90520-16002 Ring, Shaft Snap(For Steering Main Shaft)[11.1989 - 10.1994] UCF1# 厚さ＝２．００，内径＝１５．３ |
90520-16002 |
US $1.31 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[11.1989 - 10.1994] UCF1# 厚さ＝１．２０ |
90520-17042 |
from US $0.86 |
||
|
45201G
|
45201G
90501-20098
Spring, Compression(For Steering Main Shaft)
[11.1989 - 10.1994] UCF10..A 下側 |
90501-20098 |
— | ||
|
45201G
|
45201G
90501-40017 Spring, Compression(For Steering Main Shaft)[11.1989 - 10.1994] UCF10..A 上側; UCF1#..B,C |
90501-40017 |
from US $4.02 |
||
|
45204
|
45204
45204-50021 Tube Assy, Steering Column, Lower[11.1989 - 10.1994] UCF10..A |
45204-50021 |
US $63.77 |
||
|
45205J
|
45205J
45205-50010 Tube Sub-Assy, Steering Column[11.1989 - 10.1994] UCF1# |
45205-50010 |
US $63.04 |
||
| replacement | |||||
|
45205J
|
45205J
45205-50011 Tube Sub-Assy, Steering Column[11.1989 - 10.1994] UCF1# |
45205-50011 |
US $63.48 |
||
|
45209
|
45209
45209-50010 Yoke Sub-Assy, Steering Sliding[11.1989 - 10.1994] UCF1# |
45209-50010 |
from US $99.59 |
||
|
45210
|
45210
45210-50010 Shaft Assy, Steering Main[11.1989 - 10.1994] UCF1# |
45210-50010 |
US $209.66 |
||
| replacement | |||||
|
45210
|
45210
45210-50011 Shaft Assy, Steering Main[11.1989 - 10.1994] UCF1# |
45210-50011 |
US $209.66 |
||
|
45215
|
45215
45215-12010 Collar, Main Shaft Bearing Thrust[11.1989 - 10.1994] UCF10..A 上側; UCF1#..B,C |
45215-12010 |
from US $1.66 |
||
|
45215
|
45215
45215-22020
Collar, Main Shaft Bearing Thrust
[11.1989 - 10.1994] UCF10..A 下側 |
45215-22020 |
— | ||
|
45216
|
45216
45216-22010
Shaft, Steering Sliding
[11.1989 - 10.1994] UCF10..A |
45216-22010 |
— | ||
|
45260
|
45260
45260-50020 Shaft Assy, Steering Intermediate, No.2[11.1989 - 08.1992] UCF1# |
45260-50020 |
US $196.56 |
||
| replacement | |||||
|
45260
|
45260
45260-50030
Shaft Assy, Steering Intermediate, No.2
[11.1989 - 08.1992] UCF1# |
45260-50030 |
— | ||
|
45260
|
45260
45260-50030
Shaft Assy, Steering Intermediate, No.2
[08.1992 - 10.1994] UCF1# |
45260-50030 |
— | ||
|
45280A
|
45280A
45280-50031 Bracket Assy, Steering Column, Upper[11.1989 - 08.1992] UCF1# |
45280-50031 |
US $327.60 |
||
| replacement | |||||
|
45280A
|
45280A
45280-50032 Bracket Assy, Steering Column, Upper[11.1989 - 08.1992] UCF1# |
45280-50032 |
US $315.95 |
||
|
45280A
|
45280A
45280-50032 Bracket Assy, Steering Column, Upper[08.1992 - 10.1994] UCF1# |
45280-50032 |
US $315.95 |
||
|
45283A
|
45283A
45283-50010-03 Plate, Beam Change & Turn Signal Caution[11.1989 - 08.1992] UCF1# GRAY,TRIM1# |
45283-50010-03 |
US $2.18 |
||
| replacement | |||||
|
45283A
|
45283A
45283-50010-B0 Plate, Beam Change & Turn Signal Caution[11.1989 - 08.1992] UCF1# GRAY,TRIM1# |
45283-50010-B0 |
US $1.31 |
||
|
45283A
|
45283A
45283-50010-04 Plate, Beam Change & Turn Signal Caution[11.1989 - 08.1992] UCF1# BLUE,TRIM8# |
45283-50010-04 |
US $2.18 |
||
| replacement | |||||
|
45283A
|
45283A
45283-22010 Plate, Safety Caution[11.1989 - 08.1992] UCF1# BLUE,TRIM8# |
45283-22010 |
US $2.40 |
||
|
45283A
|
45283A
45283-50010-B0 Plate, Beam Change & Turn Signal Caution[08.1992 - 01.1994] UCF1# SHADOW GRAY,TRIM1#,8# |
45283-50010-B0 |
US $1.31 |
||
|
45283A
|
45283A
45283-50010-J0 Plate, Beam Change & Turn Signal Caution[08.1992 - 10.1994] UCF10..A DK.BLUE,TRIM8# |
45283-50010-J0 |
US $2.18 |
||
| replacement | |||||
|
45283A
|
45283A
45283-22010 Plate, Safety Caution[08.1992 - 10.1994] UCF10..A DK.BLUE,TRIM8# |
45283-22010 |
US $2.40 |
||
|
45286
|
45286
45286-50905-03 Cover, Steering Column[12.1989 - 08.1992] UCF10..A SHADOW GRAY,TRIM1# |
45286-50905-03 |
US $68.72 |
||
| replacement | |||||
|
45286
|
45286
45286-50905-P0 Cover, Steering Column[12.1989 - 08.1992] UCF10..A SHADOW GRAY,TRIM1# |
45286-50905-P0 |
US $68.72 |
||
|
45286
|
45286
45286-50905-04 Cover, Steering Column[12.1989 - 08.1992] UCF10..A DARK BLUE,TRIM8# |
45286-50905-04 |
US $68.72 |
||
| replacement | |||||
|
45286
|
45286
45286-50905-P0 Cover, Steering Column[12.1989 - 08.1992] UCF10..A DARK BLUE,TRIM8# |
45286-50905-P0 |
US $68.72 |
||
|
45286
|
45286
45286-50905-P0 Cover, Steering Column[08.1992 - 10.1994] UCF10..A SHADOW GRAY,TRIM1# |
45286-50905-P0 |
US $68.72 |
||
|
45286
|
45286
45286-50905-W3 Cover, Steering Column[08.1992 - 10.1994] UCF10..A DK.BLUE,TRIM8# |
45286-50905-W3 |
US $68.72 |
||
| replacement | |||||
|
45286
|
45286
45286-50905-P0 Cover, Steering Column[08.1992 - 10.1994] UCF10..A DK.BLUE,TRIM8# |
45286-50905-P0 |
US $68.72 |
||
|
45292
|
45292
45292-22130
Seal, Main Shaft Lower Dust
[11.1989 - 10.1994] UCF1# |
45292-22130 |
— | ||
|
45292A
|
45292A
45292-50020 Cover, Main Shaft Lower Dust[11.1989 - 10.1994] UCF10..A |
45292-50020 |
US $21.99 |
||
|
45810
|
45810
45810-50010 Gear Assy, Tilt Steering, W/motor[11.1989 - 10.1994] UCF1# |
45810-50010 |
US $531.44 |
||
|
45817
|
45817
45817-50011 Stopper, Steering Shaft Thrust[11.1989 - 10.1994] UCF10..A |
45817-50011 |
US $6.99 |
||
|
45818
|
45818
45818-50010 Bracket, Connector[11.1989 - 10.1994] UCF1# |
45818-50010 |
US $11.65 |
||
|
45826F
|
45826F
45826-50020 Lever, Steering Telescopic[11.1989 - 10.1994] UCF10..A |
45826-50020 |
US $51.11 |
||
| replacement | |||||
|
45826F
|
45826F
45826-50010-C0 Lever, Steering Telescopic[11.1989 - 10.1994] UCF10..A |
45826-50010-C0 |
US $51.11 |
||
|
45826G
|
45826G
90389-10022 Collar(For Steering Telescopic Lever)[11.1989 - 10.1994] UCF10..A |
90389-10022 |
US $3.49 |
||
|
45826H
|
45826H
90501-12014 Spring, Compression(For Steering Telescopic Lever)[11.1989 - 10.1994] UCF10..A |
90501-12014 |
US $4.22 |
||
|
45826J
|
45826J
90360-06001 Ball (For Hoist Cylinder)[11.1989 - 10.1994] UCF10..A |
90360-06001 |
US $1.60 |
||
|
45831A
|
45831A
45831-22010 Bolt, Telescope Lever Lock[11.1989 - 10.1994] UCF10..A |
45831-22010 |
US $5.39 |
||
|
45835
|
45835
45835-22030 Wedge, Lock[11.1989 - 10.1994] UCF10..A TUBE SIDE |
45835-22030 |
US $7.72 |
||
|
45835
|
45835
45835-22040 Wedge, Lock[11.1989 - 10.1994] UCF10..A BOLT SIDE |
45835-22040 |
US $14.41 |
||
|
45835A
|
45835A
45835-22010 Attachment, Tilt Lever Serration[11.1989 - 10.1994] UCF10..A |
45835-22010 |
US $14.41 |
||
|
45855
|
45855
45086-50010 Bolt, Tilt Steering, No.1[11.1989 - 10.1994] UCF1# 外径＝２０ |
45086-50010 |
US $4.72 |
||
|
45855A
|
45855A
90389-10024 Bush(For Tilt Steering Bolt No.1)[11.1989 - 10.1994] UCF1# |
90389-10024 |
US $2.62 |
||
|
45856
|
45856
45856-50010 Bolt, Tilt Steering, No.2[11.1989 - 10.1994] UCF1# 外径＝１６．２ |
45856-50010 |
US $3.93 |
||
|
45856A
|
45856A
90389-08081 Bush(For Tilt Steering Bolt No.2)[11.1989 - 10.1994] UCF1# |
90389-08081 |
US $2.62 |
||
|
45859
|
45859
45859-50010 Support, Tilt Steering Housing[11.1989 - 10.1994] UCF1# |
45859-50010 |
US $50.09 |
||
|
45873
|
45873
45873-50020 Stopper, Steering Column Tube[11.1989 - 10.1994] UCF10..A |
45873-50020 |
US $3.06 |
||
|
45874B
|
45874B
45874-50010 Protector, Steering Column, No.1[11.1989 - 10.1994] UCF1# |
45874-50010 |
US $9.03 |
||
|
45881A
|
45881A
45881-50010 Protector, Steering Column, No.2[11.1989 - 10.1994] UCF1# |
45881-50010 |
US $9.03 |
||
|
45891
|
45891
45891-50010 Bracket, Turn Signal[11.1989 - 10.1994] UCF1# |
45891-50010 |
US $10.19 |
||
|
45895B
|
45895B
45895-50030-03 Plate, Tilt Lever Instruction[11.1989 - 08.1992] UCF1# GRAY,TRIM1# |
45895-50030-03 |
US $2.18 |
||
| replacement | |||||
|
45895B
|
45895B
45895-50030-P0 Plate, Tilt Lever Instruction[11.1989 - 08.1992] UCF1# GRAY,TRIM1# |
45895-50030-P0 |
US $2.18 |
||
|
45895B
|
45895B
45895-50030-04 Plate, Tilt Lever Instruction[11.1989 - 08.1992] UCF1# BLUE,TRIM8# |
45895-50030-04 |
US $2.18 |
||
|
45895B
|
45895B
45895-50030-P0 Plate, Tilt Lever Instruction[08.1992 - 05.1993] UCF1# SHADOW GRAY,TRIM1#,8# |
45895-50030-P0 |
US $2.18 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[11.1989 - 10.1994] UCF1# |
45897-12020 |
from US $3.36 |
||
|
45898B
|
45898B
45898-50010 Bolt, Tilt Steering Support Stopper[11.1989 - 04.1991] UCF1# |
45898-50010 |
US $4.08 |
||
| replacement | |||||
|
45898B
|
45898B
45898-41010 Bolt, Tilt Steering Support Stopper[11.1989 - 04.1991] UCF1# |
45898-41010 |
US $3.20 |
||
|
45898B
|
45898B
45898-50011 Bolt, Tilt Steering Support Stopper[04.1991 - 10.1994] UCF1# |
45898-50011 |
US $3.93 |
||
| replacement | |||||
|
45898B
|
45898B
45898-41010 Bolt, Tilt Steering Support Stopper[04.1991 - 10.1994] UCF1# |
45898-41010 |
US $3.20 |
||
|
45898C
|
45898C
90561-06010 Spacer(For Tilt Steering Support Stopper Bolt)[11.1989 - 10.1994] UCF1# |
90561-06010 |
US $2.48 |
||
|
45898D
|
45898D
90501-18082 Spring(For Tilt Steering Support Stopper Bolt)[11.1989 - 04.1991] UCF1# |
90501-18082 |
US $2.48 |
||
| replacement | |||||
|
45898D
|
45898D
90501-18096 Spring(For Tilt Steering Support Stopper Bolt)[11.1989 - 04.1991] UCF1# |
90501-18096 |
US $2.18 |
||
|
45898D
|
45898D
90501-18096 Spring(For Tilt Steering Support Stopper Bolt)[04.1991 - 10.1994] UCF1# |
90501-18096 |
US $2.18 |
||
|
45898E
|
45898E
90389-11010 Bush(For Tilt Steering Support Bolt)[11.1989 - 10.1994] UCF1# |
90389-11010 |
US $3.49 |
||
|
9010906161
|
9010906161
90109-06161 New Genuine Part |
90109-06161 |
US $1.02 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9015960257
|
9015960257
90159-60257 New Genuine Part |
90159-60257 |
US $1.60 |
||
|
9016450034
|
9016450034
90164-50034 Direct |
90164-50034 |
US $1.12 |
||
| replacement | |||||
|
9016450034
|
9016450034
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.88 |
||
|
9017910053
|
9017910053
90179-10053 New Genuine Part |
90179-10053 |
US $2.04 |
||
|
9046069004
|
9046069004
90460-69004 New Genuine Part |
90460-69004 |
US $3.06 |
||
|
9046738002
|
9046738002
90467-38002 Clamp(For Air Cleaner Hose, No.1) |
90467-38002 |
US $6.26 |
||
| replacement | |||||
|
9046738002
|
9046738002
90467-38003 Clamp(For Air Cleaner Hose, No.1)NO.1) |
90467-38003 |
US $5.97 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9162140610
|
9162140610
91621-40610 BOLT |
91621-40610 |
from US $0.70 |
||
|
9162140814
|
9162140814
91621-40814 Bolt |
91621-40814 |
US $1.44 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9331224006
|
9331224006
93312-24006 New Genuine Part |
93312-24006 |
US $1.60 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $0.96 |
||
|
9418210600
|
9418210600
94182-10600 Nut, Tilt Steering Adjusting, No.1 |
94182-10600 |
US $1.89 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
