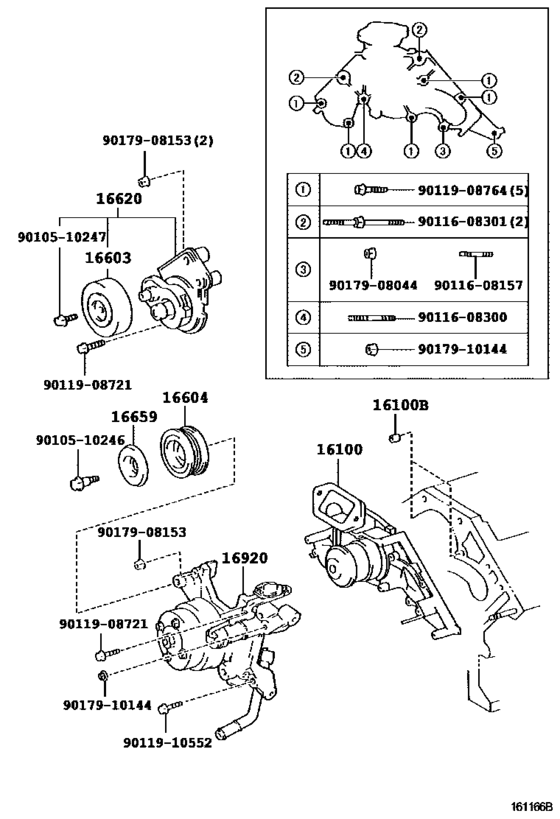

Water Pump ([11.1989 - ] (8911- )) Diagram Toyota CELSIOR
- Year
- 1989 - 1994
- Sales region
- Japan
- Frame
- UCF10
- grade
- A
- body
- SED
- ENGINE
- 1UZFE
- From
- 11.1989
- To
- 10.1994
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-50020
Pump Assy, Engine Water
[11.1989 - 12.1993] 1UZFE..UCF1# |
16100-50020 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-50023 Pump Assy, Engine Water[11.1989 - 12.1993] 1UZFE..UCF1# |
16100-50023 |
from US $195.68 |
||
|
16100
|
16100
16100-50021 Pump Assy, Engine Water[12.1993 - 10.1994] 1UZFE..UCF1# |
16100-50021 |
US $215.49 |
||
| replacement | |||||
|
16100
|
16100
16100-50023 Pump Assy, Engine Water[12.1993 - 10.1994] 1UZFE..UCF1# |
16100-50023 |
from US $195.68 |
||
|
16100B
|
16100B
90253-11021 Pin, Ring[11.1989 - 10.1994] 1UZFE..UCF1# |
90253-11021 |
from US $1.50 |
||
|
16603
|
16603
16603-50010 Pulley Sub-Assy, Idler, No.1[11.1989 - 02.1994] 1UZFE..UCF1# ＬＩＴＥＮＳ |
16603-50010 |
US $123.76 |
||
| replacement | |||||
|
16603
|
16603
16603-0W010 Pulley Sub-Assy, Idler, No.1[11.1989 - 02.1994] 1UZFE..UCF1# ＬＩＴＥＮＳ |
16603-0W010 |
from US $79.44 |
||
|
16603
|
16603
16603-50020 Pulley Sub-Assy, Idler, No.1[11.1989 - 02.1994] 1UZFE..UCF1# ＡＩＳＩＮ |
16603-50020 |
US $126.67 |
||
| replacement | |||||
|
16603
|
16603
16603-0W010 Pulley Sub-Assy, Idler, No.1[11.1989 - 02.1994] 1UZFE..UCF1# ＡＩＳＩＮ |
16603-0W010 |
from US $79.44 |
||
|
16604
|
16604
16604-50010 Pulley Sub-Assy, Idler, No.2[11.1989 - 10.1994] 1UZFE..UCF1# |
16604-50010 |
US $115.02 |
||
| replacement | |||||
|
16604
|
16604
16604-50030 Pulley Sub-Assy, Idler, No.2[11.1989 - 10.1994] 1UZFE..UCF1# |
16604-50030 |
from US $64.21 |
||
|
16620
|
16620
16620-0W030
Tensioner Assy, V-Ribbed Belt
[06.1994 - 10.1994] 1UZFE..UCF1# |
16620-0W030 |
— | ||
| replacement | |||||
|
16620
|
16620
16620-0W035
Tensioner Assy, V-Ribbed Belt
[06.1994 - 10.1994] 1UZFE..UCF1# |
16620-0W035 |
— | ||
|
16620
|
16620
16620-50011 Tensioner Assy, V-Ribbed Belt[01.1994 - 06.1994] 1UZFE..UCF1# |
16620-50011 |
US $390.21 |
||
| replacement | |||||
|
16620
|
16620
16620-0W035
Tensioner Assy, V-Ribbed Belt
[01.1994 - 06.1994] 1UZFE..UCF1# |
16620-0W035 |
— | ||
|
16620
|
16620
16620-50020 Tensioner Assy, V-Ribbed Belt[11.1989 - 01.1994] 1UZFE..UCF1# |
16620-50020 |
US $390.21 |
||
| replacement | |||||
|
16620
|
16620
16620-0W035
Tensioner Assy, V-Ribbed Belt
[11.1989 - 01.1994] 1UZFE..UCF1# |
16620-0W035 |
— | ||
|
16659
|
16659
16659-50010 Plate, Idler Pulley Cover, No.2[11.1989 - 01.1993] 1UZFE..UCF1# |
16659-50010 |
US $6.84 |
||
| replacement | |||||
|
16659
|
16659
16659-50021
Plate, Idler Pulley Cover, No.2
[11.1989 - 01.1993] 1UZFE..UCF1# |
16659-50021 |
— | ||
|
16659
|
16659
16659-50020 Plate, Idler Pulley Cover, No.2[01.1993 - 10.1994] 1UZFE..UCF1# |
16659-50020 |
US $6.84 |
||
| replacement | |||||
|
16659
|
16659
16659-50021
Plate, Idler Pulley Cover, No.2
[01.1993 - 10.1994] 1UZFE..UCF1# |
16659-50021 |
— | ||
|
16920
|
16920
16920-50010 Pump Assy, Hydraulic Motor Vane[11.1989 - 08.1992] 1UZFE..UCF1# |
16920-50010 |
US $1,630.72 |
||
| replacement | |||||
|
16920
|
16920
16920-50012 Pump Assy, Hydraulic Motor Vane[11.1989 - 08.1992] 1UZFE..UCF1# |
16920-50012 |
US $1,630.72 |
||
|
16920
|
16920
16920-50011 Pump Assy, Hydraulic Motor Vane[08.1992 - 10.1994] 1UZFE..UCF1# |
16920-50011 |
US $1,630.72 |
||
| replacement | |||||
|
16920
|
16920
16920-50012 Pump Assy, Hydraulic Motor Vane[08.1992 - 10.1994] 1UZFE..UCF1# |
16920-50012 |
US $1,630.72 |
||
|
9010510246
|
9010510246
90105-10246 BOLT WASHER BASED |
90105-10246 |
US $3.68 |
||
|
9010510247
|
9010510247
90105-10247 Bolt(For Idler Pulley) |
90105-10247 |
US $3.32 |
||
|
9011608157
|
9011608157
90116-08157 Bolt, Stud(For Oil Filter) |
90116-08157 |
US $1.75 |
||
|
9011608300
|
9011608300
90116-08300 New Genuine Part |
90116-08300 |
US $4.08 |
||
|
9011608301
|
9011608301
90116-08301 BOLT STUD |
90116-08301 |
US $5.68 |
||
|
9011908721
|
9011908721
90119-08721 BOLT WWASHER |
90119-08721 |
US $3.68 |
||
|
9011908764
|
9011908764
90119-08764 BOLT W-WASHER |
90119-08764 |
US $2.04 |
||
|
9011910552
|
9011910552
90119-10552 BOLT WWASHER |
90119-10552 |
US $5.68 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.33 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9017910144
|
9017910144
90179-10144 NUT |
90179-10144 |
US $2.77 |
||
