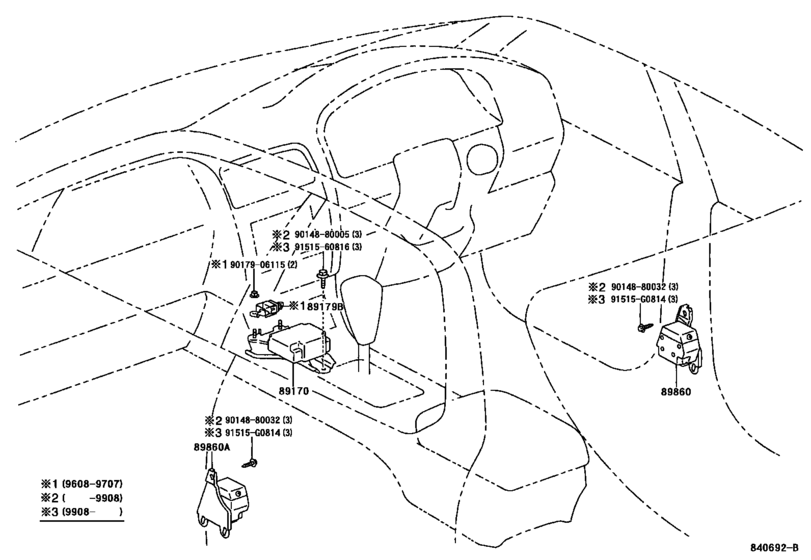

Air Bag ([10.1994 - ] (9410- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89170
|
89170
89170-50060 Sensor Assy, Air Bag[07.1997 -] UCF2# |
89170-50060 |
US $1,514.24 |
||
|
89860
|
89860
89860-50040 Sensor Assy, Side Air Bag, Rh[07.1997 -] UCF2# |
89860-50040 |
US $334.88 |
||
|
89860A
|
89860A
89830-50040 Sensor Assy, Side Air Bag, Lh[07.1997 -] UCF2# |
89830-50040 |
US $334.88 |
||
|
91515G0814
|
91515G0814
91515-G0814 New Genuine Part |
91515-G0814 |
US $1.75 |
||
| replacement | |||||
|
91515G0814
|
91515G0814
91511-G0814 New Genuine Part |
91511-G0814 |
US $2.08 |
||
|
9014880005
|
9014880005
90148-80005 New Genuine Part |
90148-80005 |
US $1.75 |
||
|
9014880032
|
9014880032
90148-80032 New Genuine Part |
90148-80032 |
US $1.46 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9151560816
|
9151560816
91515-60816 New Genuine Part |
91515-60816 |
US $1.89 |
||
| replacement | |||||
|
9151560816
|
9151560816
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
