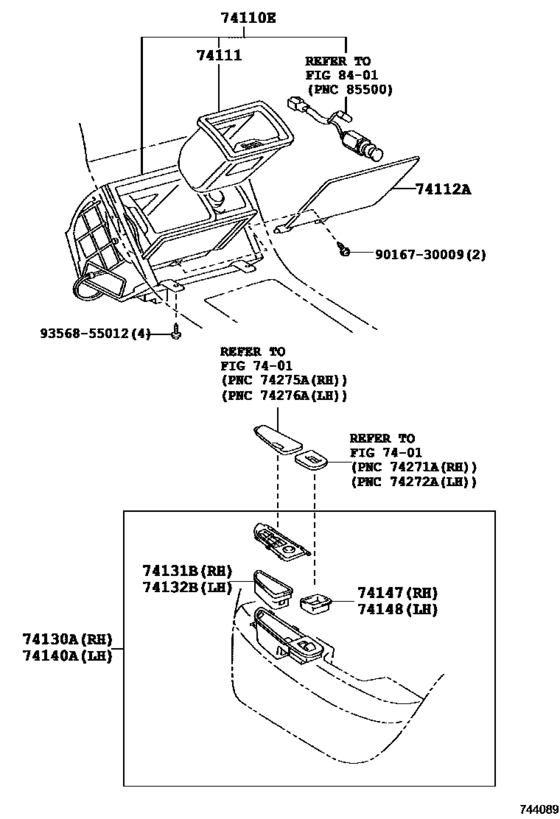

Ash Receptacle ([10.1994 - ] (9410- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74110E
|
74110E
74102-50030 Receptacle Assy, Front Ash[10.1994 -] UCF2# |
74102-50030 |
US $202.38 |
||
|
74111
|
74111
74111-50020
Box, Front Ash Receptacle
[10.1994 -] UCF2# |
74111-50020 |
— | ||
|
74112A
|
74112A
74112-50040 Door, Front Ash Receptacle[07.1997 - 08.2000] UCF2# |
74112-50040 |
US $183.46 |
||
|
74130A
|
74130A
74130-50020 Receptacle Assy, Rear Ash, Rh[10.1994 -] UCF2# |
74130-50020 |
US $85.90 |
||
|
74131B
|
74131B
74131-50020 Box, Rear Ash Receptacle, Rh[10.1994 -] UCF2# |
74131-50020 |
US $38.73 |
||
|
74132B
|
74132B
74132-50020 Box, Rear Ash Receptacle, Lh[10.1994 -] UCF2# |
74132-50020 |
US $38.73 |
||
|
74140A
|
74140A
74140-50020 Receptacle Assy, Rear Ash, Lh[10.1994 -] UCF2# |
74140-50020 |
US $85.90 |
||
|
74147
|
74147
74147-50010 Garnish, Rear Ash Receptacle[10.1994 -] UCF2# |
74147-50010 |
US $8.15 |
||
|
74148
|
74148
74148-50010 Garnish, Rear Ash Receptacle, No.2[10.1994 -] UCF2# |
74148-50010 |
US $8.15 |
||
|
9016730009
|
9016730009
90167-30009 SCREW PAN TAPPING |
90167-30009 |
US $0.73 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
