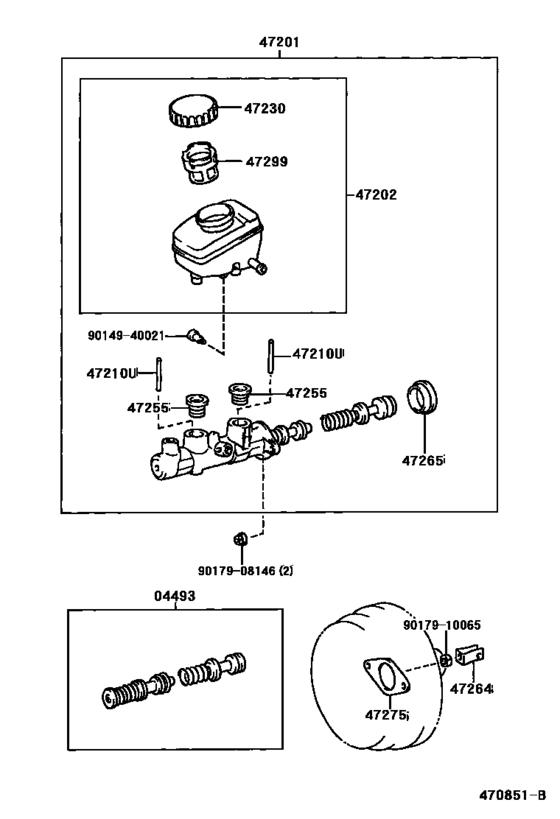

Brake Master Cylinder ([07.1997 - ] (9707- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-50050 Cylinder Kit, Brake Master[07.1997 -] UCF2# |
04493-50050 |
US $51.72 |
||
|
47201
|
47201
47201-50240
Cylinder Sub-Assy, Brake Master
[07.1997 -] UCF2# |
47201-50240 |
— | ||
|
47202
|
47202
47220-50130 Reservoir Sub-Assy, Brake Master Cylinder[07.1997 -] UCF2# |
47220-50130 |
US $131.04 |
||
|
47210U
|
47210U
90029-14204 Pin, Straight(For Brake Master Cylinder)[07.1997 -] UCF2# |
90029-14204 |
US $0.61 |
||
|
47230
|
47230
47230-20100
Cap Assy, Brake Master Cylinder Reservoir Filler
[10.1994 -] UCF2# |
47230-20100 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler[10.1994 -] UCF2# |
47230-47090 |
from US $12.32 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[10.1994 -] UCF2# |
47255-16010 |
from US $5.76 |
||
|
47264
|
47264
47264-28010 Clevis, Master Cylinder Push Rod[10.1994 -] UCF2# |
47264-28010 |
US $7.16 |
||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[08.1996 -] UCF2# |
47265-20050 |
from US $4.80 |
||
|
47275
|
47275
47275-12020 Gasket, Brake Master Cylinder[10.1994 -] UCF2# |
47275-12020 |
from US $1.17 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[08.1996 -] UCF2#..B,C;UCF20..A..5FC |
47299-20060 |
US $1.89 |
||
|
9014940021
|
9014940021
90149-40021 New Genuine Part |
90149-40021 |
US $1.28 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.44 |
||
