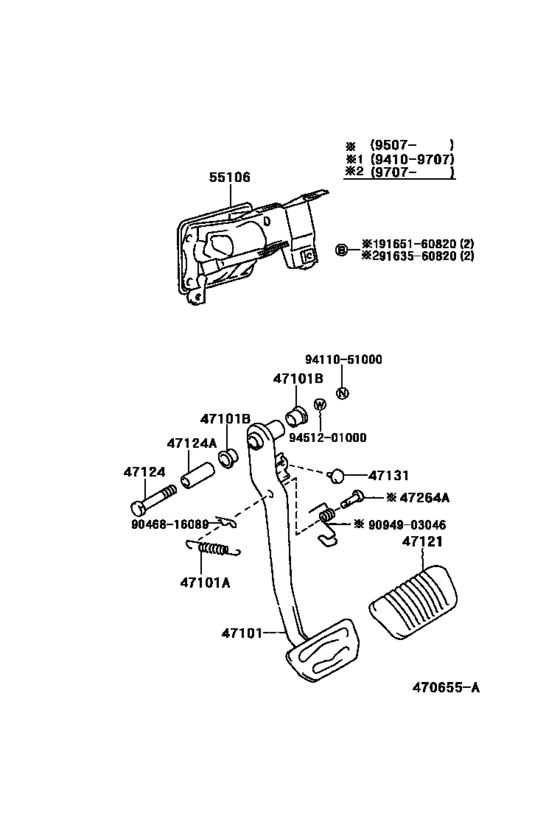

Brake Pedal & Bracket ([10.1994 - ] (9410- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-50040 Pedal Sub-Assy, Brake[10.1994 -] UCF2# |
47101-50040 |
US $35.24 |
||
|
47101A
|
47101A
90507-16026 Spring(For Brake Pedal Return)[08.1998 -] UCF2# |
90507-16026 |
US $3.49 |
||
|
47101A
|
47101A
90905-07007 Spring(For Brake Pedal Return)[10.1994 - 08.1998] UCF2# |
90905-07007 |
US $4.08 |
||
|
47101B
|
47101B
90386-13015 Bush(For Clutch Pedal)[10.1994 -] UCF2# |
90386-13015 |
from US $0.72 |
||
|
47121
|
47121
47121-50010 Pad, Brake Pedal[10.1994 -] UCF2# |
47121-50010 |
from US $8.99 |
||
|
47124
|
47124
90101-10039 Shaft, Clutch Pedal[10.1994 -] UCF2# |
90101-10039 |
US $2.56 |
||
|
47124A
|
47124A
90387-10003 Collar, Clutch Pedal Shaft[10.1994 -] UCF2# |
90387-10003 |
from US $4.11 |
||
|
47131
|
47131
90541-06036 Cushion, No.1(For Clutch Pedal)[10.1994 -] UCF2# |
90541-06036 |
from US $0.98 |
||
| replacement | |||||
|
47131
|
47131
90541060361
CUSHION
[10.1994 -] UCF2# |
90541060361 |
— | ||
|
47264A
|
47264A
90249-10199 Pin(For Push Rod)[07.1995 -] UCF2# |
90249-10199 |
US $2.04 |
||
|
55106
|
55106
55106-50060 Support Sub-Assy, Brake Pedal[07.1997 -] UCF2# |
55106-50060 |
US $45.43 |
||
|
9046816089
|
9046816089
90468-16089 New Genuine Part |
90468-16089 |
US $2.72 |
||
|
9094903046
|
9094903046
90949-03046 New Genuine Part |
90949-03046 |
US $1.46 |
||
|
9163560820
|
9163560820
91635-60820 BOLTWWASHER |
91635-60820 |
US $1.75 |
||
| replacement | |||||
|
9163560820
|
9163560820
91631-B0818 BOLTWWASHER |
91631-B0818 |
US $2.08 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $2.08 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
