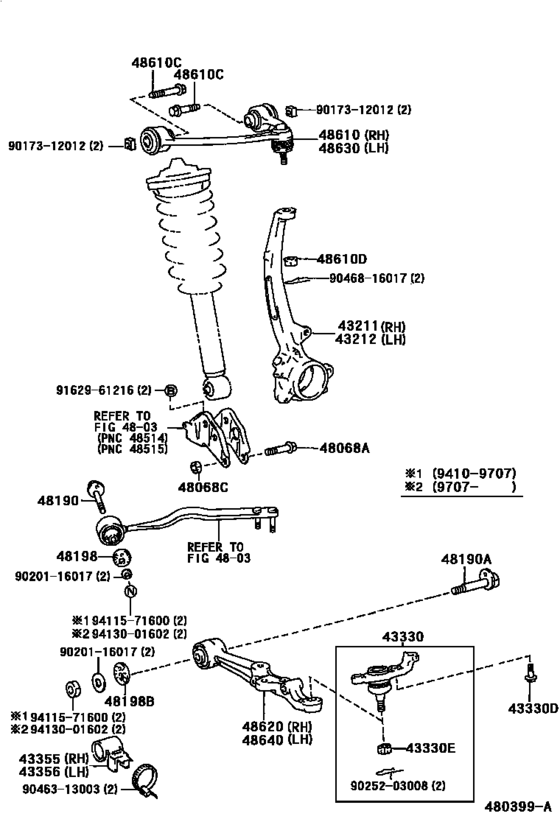

Front Axle Arm & Steering Knuckle ([10.1994 - ] (9410- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-50050 Knuckle, Steering, Rh[10.1994 -] UCF2# |
43211-50050 |
US $262.08 |
||
|
43212
|
43212
43212-50050 Knuckle, Steering, Lh[10.1994 -] UCF2# |
43212-50050 |
US $262.08 |
||
|
43330
|
43330
43330-59045 Joint Assy, Lower Ball, Front[07.1997 -] UCF2# 右側 |
43330-59045 |
from US $94.72 |
||
|
43330
|
43330
43340-59045 Joint Assy, Lower Ball, Front[07.1997 -] UCF2# 左側 |
43340-59045 |
from US $94.72 |
||
|
43330D
|
43330D
90105-12141 Bolt (For Front Lower Ball Joint)[10.1994 -] UCF2# |
90105-12141 |
from US $1.99 |
||
|
43330E
|
43330E
90171-16007 Nut, Castle (For Front Lower Ball Joint Setting)[10.1994 -] UCF2# |
90171-16007 |
US $4.54 |
||
|
43355
|
43355
43355-50010 Deflector, Lower Arm Ice, Rh[10.1994 -] UCF2# ｶﾝﾚｲﾁ ｼﾖｳ |
43355-50010 |
US $3.06 |
||
|
43356
|
43356
43355-50010 Deflector, Lower Arm Ice, Rh[10.1994 -] UCF2# ｶﾝﾚｲﾁ ｼﾖｳ |
43355-50010 |
US $3.06 |
||
|
48068A
|
48068A
90105-12281 Bolt(For Front Suspension Lower Arm)[10.1994 -] UCF2# |
90105-12281 |
US $3.64 |
||
|
48068C
|
48068C
90179-12025 Nut (For Rear Axle Carrier)[10.1994 -] UCF2# |
90179-12025 |
from US $1.21 |
||
|
48190
|
48190
48190-24020 Cam Assy, Camber Adjust[10.1994 -] UCF2# |
48190-24020 |
from US $13.42 |
||
|
48190A
|
48190A
48190-50040 Cam Assy, Camber Adjust, No.2[10.1994 -] UCF2# |
48190-50040 |
US $15.20 |
||
|
48198
|
48198
48198-50030 Cam, Camber Adjust, No.2[10.1994 -] UCF2# |
48198-50030 |
US $5.97 |
||
|
48198B
|
48198B
48198-50020 Cam, Camber Adjust, No.2[10.1994 -] UCF2# |
48198-50020 |
US $5.68 |
||
|
48610
|
48610
48610-59015 Arm Assy, Front Suspension Upper, Rh[10.1994 -] UCF2# |
48610-59015 |
US $372.40 |
||
|
48610C
|
48610C
90105-12258 Bolt(For Suspension Upper Arm)[10.1994 -] UCF2# |
90105-12258 |
US $6.40 |
||
|
48610D
|
48610D
90171-12002 Nut, Castle(For Tie Rod End)[10.1994 -] UCF2# |
90171-12002 |
from US $1.19 |
||
|
48620
|
48620
48068-50020 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[10.1994 -] UCF2# |
48068-50020 |
US $281.40 |
||
|
48630
|
48630
48630-59015 Arm Assy, Front Suspension, Upper Lh[10.1994 -] UCF2# |
48630-59015 |
US $372.40 |
||
|
48640
|
48640
48069-50020 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[10.1994 -] UCF2# |
48069-50020 |
US $281.40 |
||
|
9017312012
|
9017312012
90173-12012 New Genuine Part |
90173-12012 |
US $2.33 |
||
|
9020116017
|
9020116017
90201-16017 WASHER |
90201-16017 |
from US $2.63 |
||
|
9025203008
|
9025203008
90252-03008 PIN COTTER |
90252-03008 |
US $1.12 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $2.88 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.80 |
||
|
9162961216
|
9162961216
91629-61216 New Genuine Part |
91629-61216 |
US $1.05 |
||
|
9411571600
|
9411571600
94115-71600
Nut(For Front Suspension Lower Arm)
|
94115-71600 |
— | ||
| replacement | |||||
|
9411571600
|
9411571600
94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting) |
94130-01602 |
from US $1.05 |
||
|
9413001602
|
9413001602
94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting) |
94130-01602 |
from US $1.05 |
||
