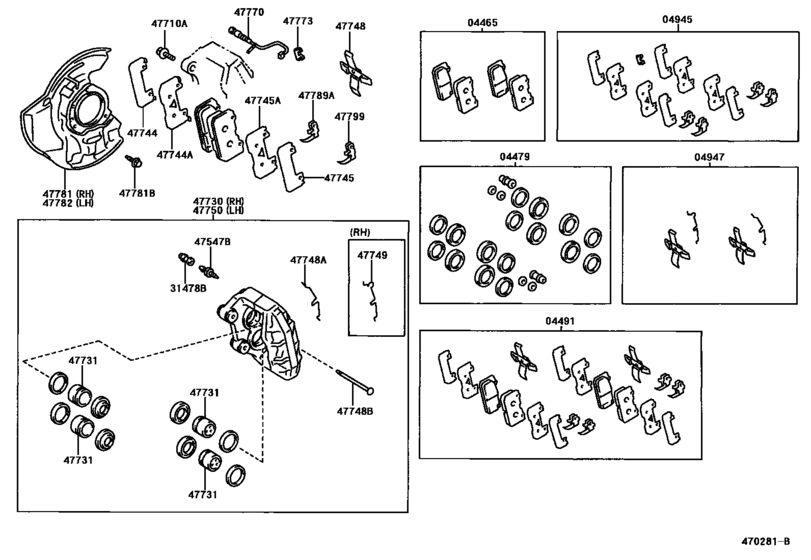

Front Disc Brake Caliper & Dust Cover ([10.1994 - ] (9410- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-50070 Pad Kit, Disc Brake, Front[10.1994 - 08.2000] UCF2# |
04465-50070 |
from US $158.40 |
||
|
04479
|
04479
04479-50091 Cylinder Kit, Disc Brake, Front[03.1995 - 08.2000] UCF2# |
04479-50091 |
from US $48.18 |
||
|
04945
|
04945
04945-50012 Shim Kit, Anti Squeal, Front[09.1996 - 08.2000] UCF2# |
04945-50012 |
US $35.26 |
||
|
04947
|
04947
04947-50082
Fitting Kit, Disc Brake, Front
[07.1997 - 08.2000] UCF2# |
04947-50082 |
— | ||
| replacement | |||||
|
04947
|
04947
04947-50083 Fitting Kit, Disc Brake, Front[07.1997 - 08.2000] UCF2# |
04947-50083 |
from US $24.12 |
||
|
31478B
|
31478B
31478-14010 Cap, Bleeder Plug(For Front Disc Brake)[10.1994 -] UCF2# |
31478-14010 |
from US $2.79 |
||
|
47547B
|
47547B
47547-20030 Plug, Bleeder(For Power Steering By-Pass Valve)[10.1994 - 08.2000] UCF2# |
47547-20030 |
from US $3.68 |
||
|
47710A
|
47710A
90105-12228 Bolt (For Transfer & Transaxle Setting)[10.1994 -] UCF2# ＊１２−１．２５ＰＸ３２−２４ |
90105-12228 |
from US $1.37 |
||
|
47730
|
47730
47730-50102 Cylinder Assy, Front Disc Brake, Rh[08.1996 - 08.2000] UCF2# |
47730-50102 |
US $435.34 |
||
|
47731
|
47731
47731-50060 Piston, Front Disc Brake[10.1994 - 08.2000] UCF2# |
47731-50060 |
US $24.32 |
||
|
47748
|
47748
47748-50010 Spring, Anti-Rattle, No.1(For Front Disc Brake)[10.1994 - 08.2000] UCF2# |
47748-50010 |
US $14.50 |
||
|
47748A
|
47748A
90468-12022 Clip(For Front Disc Brake Anti-Rattle)[10.1994 - 08.2000] UCF2# |
90468-12022 |
US $2.56 |
||
|
47748B
|
47748B
47735-50010 Pin, W/hole(For Front Disc Brake Anti-Rattle)[10.1994 - 08.2000] UCF2# |
47735-50010 |
US $15.96 |
||
|
47749
|
47749
47749-50020 Clip, Pin Hold[10.1994 - 08.2000] UCF2# |
47749-50020 |
US $2.27 |
||
|
47750
|
47750
47750-50102 Cylinder Assy, Disc Brake, Lh[08.1996 - 08.2000] UCF2# |
47750-50102 |
US $435.34 |
||
|
47770
|
47770
47770-50030
Wire Assy, Pad Wear Indicator, Front Rh
[10.1994 - 05.2000] UCF2# |
47770-50030 |
— | ||
| replacement | |||||
|
47770
|
47770
47770-50031 Wire Assy, Pad Wear Indicator, Front Rh[10.1994 - 05.2000] UCF2# |
47770-50031 |
from US $79.92 |
||
|
47770
|
47770
47770-50031 Wire Assy, Pad Wear Indicator, Front Rh[05.2000 - 08.2000] UCF2# |
47770-50031 |
from US $79.92 |
||
|
47773
|
47773
47773-50030 Retainer, Pad Wear Indicator[10.1994 - 08.2000] UCF2# |
47773-50030 |
from US $0.79 |
||
|
47781
|
47781
47781-50031 Cover, Disc Brake Dust, Front Rh[09.1996 -] UCF2# |
47781-50031 |
US $33.55 |
||
|
47781B
|
47781B
90148-60028 Bolt(For Dust Cover To Steering Knuckle Arm Setting)[09.1996 -] UCF2# ＊６−１．０ＰＸ１４−１０．５ |
90148-60028 |
US $3.20 |
||
|
47782
|
47782
47782-50031 Cover, Disc Brake Dust, Front Lh[09.1996 -] UCF2# |
47782-50031 |
US $33.55 |
||
|
47789A
|
47789A
47789-50012 Spacer, Front Disc Brake Pad, No.1[12.1996 - 08.2000] UCF2# |
47789-50012 |
US $1.41 |
||
|
47799
|
47799
47789-50012 Spacer, Front Disc Brake Pad, No.1[12.1996 - 08.2000] UCF2# |
47789-50012 |
US $1.41 |
||
