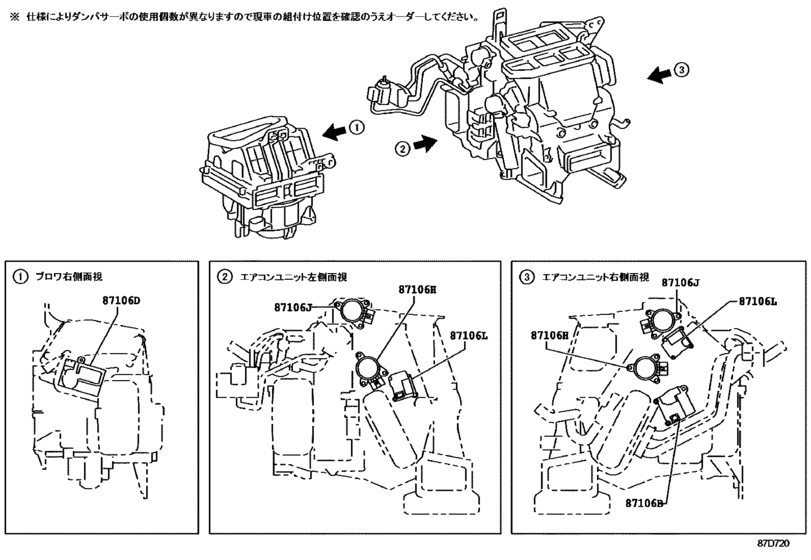

Heating & Air Conditioning - Cooler Unit ([10.1994 - ] (9410- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87106B
|
87106B
87106-50220
Servo Sub-Assy, Damper(For Cooling Unit)
[10.1994 -] UCF2# |
87106-50220 |
— | ||
|
87106D
|
87106D
87106-50270
Servo Sub-Assy, Damper, No.1
[07.1997 -] UCF2# |
87106-50270 |
— | ||
|
87106H
|
87106H
87106-50160
Servo Sub-Assy, Damper(For Airmix)
[10.1994 -] UCF2# |
87106-50160 |
— | ||
|
87106J
|
87106J
87106-50170
Servo Sub-Assy, Damper(For Airmix)
[10.1994 -] UCF2# |
87106-50170 |
— | ||
|
87106L
|
87106L
87106-50200
Servo Sub-Assy, Damper
[10.1994 -] UCF2# 運転席側 |
87106-50200 |
— | ||
|
87106L
|
87106L
87106-50210
Servo Sub-Assy, Damper
[10.1994 -] UCF2# 助手席側 |
87106-50210 |
— |
