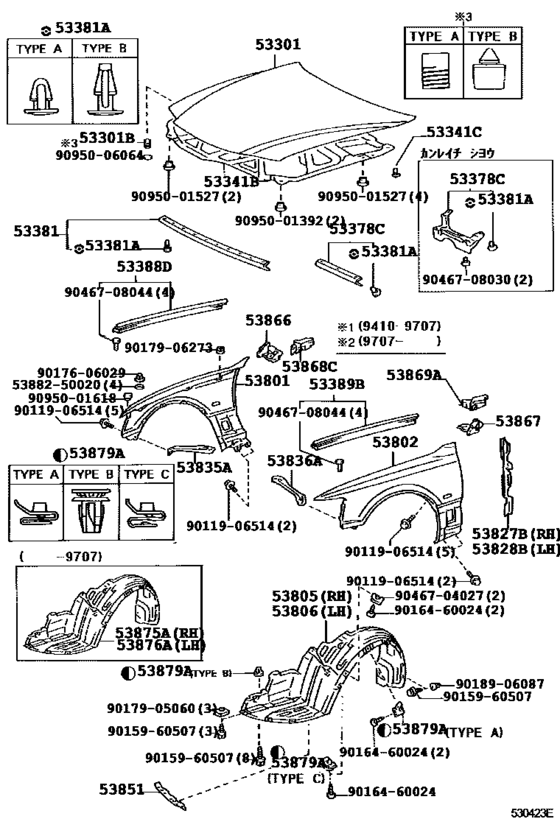

Hood & Front Fender ([10.1994 - ] (9410- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-50030 Hood Sub-Assy[07.1997 -] UCF2# |
53301-50030 |
from US $1,113.84 |
||
|
53301B
|
53301B
53388-50020 Cushion, Hood Bumper[07.1997 -] UCF2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
53388-50020 |
US $1.51 |
||
|
53301B
|
53301B
90541-15014 Cushion, Hood Bumper[07.1997 -] UCF2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90541-15014 |
US $5.12 |
||
|
53341B
|
53341B
53341-50031
Insulator, Hood
[07.1997 -] UCF2# |
53341-50031 |
— | ||
|
53341C
|
53341C
90467-08124 Clip(For Hood Insulator)[10.1994 -] UCF2# |
90467-08124 |
US $4.16 |
||
|
53378C
|
53378C
53378-50040
Seal, Hood Air Intake Duct
[07.1997 -] UCF2# |
53378-50040 |
— | ||
|
53381
|
53381
53381-50040
Seal, Hood To Radiator Support
[07.1997 -] UCF2# |
53381-50040 |
— | ||
|
53381
|
53381
53381-50050
Seal, Hood To Radiator Support
[07.1997 -] UCF2# ｶﾝﾚｲﾁ ｼﾖｳ |
53381-50050 |
— | ||
| replacement | |||||
|
53381
|
53381
53381-50040
Seal, Hood To Radiator Support
[07.1997 -] UCF2# ｶﾝﾚｲﾁ ｼﾖｳ |
53381-50040 |
— | ||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[10.1994 -] UCF2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90467-08011 |
from US $0.36 |
||
|
53381A
|
53381A
90467-08156 Clip(For Hood To Radiator Support Seal)[10.1994 -] UCF2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
90467-08156 |
from US $2.08 |
||
|
53388D
|
53388D
53388-50010
Seal, Hood To Front Fender, Rh
[07.1997 -] UCF2# |
53388-50010 |
— | ||
|
53389B
|
53389B
53389-50020
Seal, Hood To Front Fender, Lh
[07.1997 -] UCF2# |
53389-50020 |
— | ||
|
53801
|
53801
53801-50080 Fender Sub-Assy, Front Rh[07.1997 -] UCF2# |
53801-50080 |
US $880.88 |
||
|
53801
|
53801
53801-50090 Fender Sub-Assy, Front Rh[07.1997 -] UCF2# ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
53801-50090 |
US $880.88 |
||
|
53802
|
53802
53802-50080
Fender Sub-Assy, Front Lh
[07.1997 -] UCF2# |
53802-50080 |
— | ||
|
53802
|
53802
53802-50090 Fender Sub-Assy, Front Lh[07.1997 -] UCF2# ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
53802-50090 |
US $880.88 |
||
|
53805
|
53805
53805-50010 Shield Sub-Assy, Front Fender Splash, Rh[07.1997 -] UCF2# |
53805-50010 |
US $142.47 |
||
|
53806
|
53806
53806-50010 Shield Sub-Assy, Front Fender Splash, Lh[07.1997 -] UCF2# |
53806-50010 |
US $100.46 |
||
|
53827B
|
53827B
53827-50020 Protector, Front Fender Side Panel[12.1997 -] UCF2# |
53827-50020 |
US $62.32 |
||
|
53828B
|
53828B
53828-50020 Protector, Front Fender Side Panel, Lh[12.1997 -] UCF2# |
53828-50020 |
US $62.32 |
||
|
53835A
|
53835A
53835-50030
Brace, Front Fender To Apron, Rh
[10.1994 -] UCF2# |
53835-50030 |
— | ||
|
53836A
|
53836A
53836-50030
Brace, Front Fender To Apron, Lh
[10.1994 -] UCF2# |
53836-50030 |
— | ||
|
53851
|
53851
53851-50010 Brace, Front Fender To Radiator Support, Rh[07.1997 -] UCF2# |
53851-50010 |
US $29.99 |
||
|
53866
|
53866
53866-50020
Seal, Front Fender To Cowl Side, Rh
[10.1994 -] UCF2# |
53866-50020 |
— | ||
|
53867
|
53867
53867-50020
Seal, Front Fender To Cowl Side, Lh
[10.1994 -] UCF2# |
53867-50020 |
— | ||
|
53868C
|
53868C
53868-50020
Seal, Front Fender To Cowl Side, No.2 Rh
[10.1994 -] UCF2# |
53868-50020 |
— | ||
|
53869A
|
53869A
53869-50020
Seal, Front Fender To Cowl Side, No.2 Lh
[10.1994 -] UCF2# |
53869-50020 |
— | ||
|
53879A
|
53879A
53879-17020 Retainer, Front Fender Liner[10.1994 -] UCF2# TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
53879-17020 |
from US $2.09 |
||
|
53879A
|
53879A
53879-22030 Retainer, Engine Under Cover[10.1994 -] UCF2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
53879-22030 |
from US $2.36 |
||
|
53879A
|
53879A
53879-50010 Retainer, Front Fender Liner[10.1994 -] UCF2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
53879-50010 |
from US $0.91 |
||
|
5388250020
|
5388250020
53882-50020 Seal, Front Fender, Rh |
53882-50020 |
US $1.44 |
||
|
9011906514
|
9011906514
90119-06514 BOLT WWASHER |
90119-06514 |
US $1.60 |
||
|
9015960507
|
9015960507
90159-60507 SCREW WWASHER |
90159-60507 |
from US $0.92 |
||
|
9016460024
|
9016460024
90164-60024 SCREW, BINDING |
90164-60024 |
from US $0.92 |
||
|
9017606029
|
9017606029
90176-06029 New Genuine Part |
90176-06029 |
US $1.02 |
||
|
9017905060
|
9017905060
90179-05060 LEXNUT |
90179-05060 |
from US $0.78 |
||
|
9017906273
|
9017906273
90179-06273 New Genuine Part |
90179-06273 |
US $1.60 |
||
|
9018906087
|
9018906087
90189-06087 GROMMET |
90189-06087 |
from US $1.54 |
||
|
9046704027
|
9046704027
90467-04027 New Genuine Part |
90467-04027 |
US $3.84 |
||
|
9046708030
|
9046708030
90467-08030 Clip(For Hood To Cowl Top Seal) |
90467-08030 |
US $2.72 |
||
|
9046708044
|
9046708044
90467-08044
Clip(For Headlamp Cover Seal)
|
90467-08044 |
— | ||
| replacement | |||||
|
9046708044
|
9046708044
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.36 |
||
|
9095001392
|
9095001392
90950-01392 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01392 |
from US $1.21 |
||
|
9095001527
|
9095001527
90950-01527 PLUG |
90950-01527 |
US $1.76 |
||
|
9095006064
|
9095006064
90950-06064 TAPESEAL |
90950-06064 |
from US $1.76 |
||
