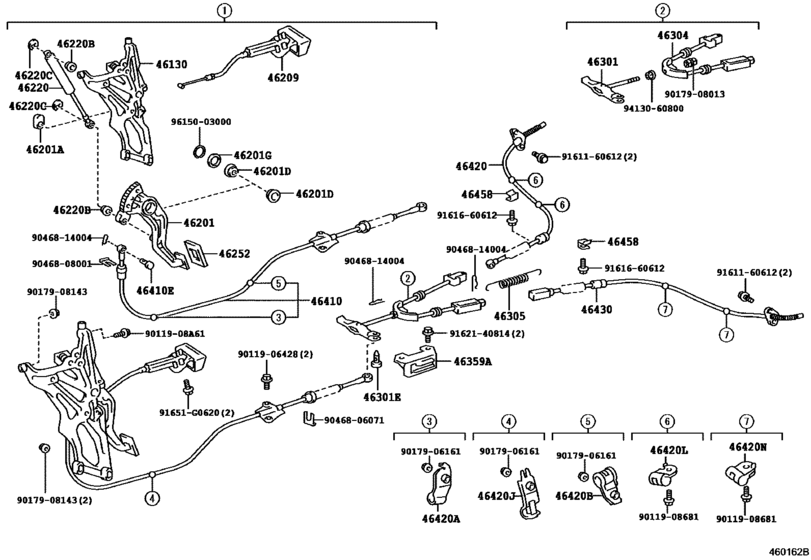

Parking Brake & Cable ([07.1997 - ] (9707- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46130
|
46130
46130-50040 Bracket Assy, Parking Brake Pedal[07.1997 -] UCF2# |
46130-50040 |
US $104.83 |
||
|
46201
|
46201
46201-40030 Pedal Sub-Assy, Parking Brake[07.1997 -] UCF2# |
46201-40030 |
US $45.28 |
||
|
46201A
|
46201A
90541-15013 Cushion(For Parking Brake Pedal)[10.1994 -] UCF2# |
90541-15013 |
US $5.68 |
||
|
46201D
|
46201D
90386-30002 Bush(For Parking Brake Pedal)[10.1994 -] UCF2# 右側 |
90386-30002 |
US $1.60 |
||
|
46201D
|
46201D
90386-30003 Bush(For Parking Brake Pedal)[10.1994 -] UCF2# 左側 |
90386-30003 |
US $1.60 |
||
|
46201G
|
46201G
90560-30010 Spacer(For Parking Brake Pedal)[10.1994 -] UCF2# |
90560-30010 |
US $1.46 |
||
|
46209
|
46209
46209-50041-B0 Cable Sub-Assy, Parking Brake Release[09.1996 - 08.2000] UCF2# DK.BLUE GRAY,TRIM1# |
46209-50041-B0 |
US $46.01 |
||
|
46209
|
46209
46209-50041-C0 Cable Sub-Assy, Parking Brake Release[09.1996 - 08.2000] UCF20 BLACK,TRIM2# |
46209-50041-C0 |
US $46.01 |
||
|
46209
|
46209
46209-50041-G0 Cable Sub-Assy, Parking Brake Release[09.1996 - 08.2000] UCF2# DK.AGATE,TRIM6# |
46209-50041-G0 |
US $46.01 |
||
|
46220
|
46220
46220-22010 Absorber Assy, Parking Brake Pedal Return[07.1997 -] UCF2# |
46220-22010 |
US $60.63 |
||
|
46220B
|
46220B
90386-08059 Bush(For Parking Brake Pedal Return Absorber)[07.1997 -] UCF2# |
90386-08059 |
US $0.87 |
||
|
46220C
|
46220C
96160-00700 Ring, E(For Chain Tensioner Slipper)[07.1997 -] UCF2# |
96160-00700 |
US $3.20 |
||
|
46252
|
46252
46252-20010 Pad, Parking Pedal[10.1994 -] UCF2# |
46252-20010 |
from US $6.49 |
||
|
46301
|
46301
46301-50020 Lever Sub-Assy, Parking Brake Intermediate[10.1994 -] UCF2# |
46301-50020 |
US $15.87 |
||
|
46301E
|
46301E
90240-08059 Pin, W/hole(For Intermediate Lever)[10.1994 -] UCF2# |
90240-08059 |
from US $2.15 |
||
|
46304
|
46304
46304-50030
Equalizer Sub-Assy, Parking Brake
[10.1994 -] UCF2# |
46304-50030 |
— | ||
|
46305
|
46305
46305-50010
Spring, Tension(For Parking Brake Equalizer)
[10.1994 -] UCF2# |
46305-50010 |
— | ||
|
46359A
|
46359A
46359-50020 Guide, Parking Brake Intermediate Lever[10.1994 -] UCF2# |
46359-50020 |
US $4.37 |
||
|
46410
|
46410
46410-50060 Cable Assy, Parking Brake, No.1[10.1994 -] UCF2# |
46410-50060 |
US $60.13 |
||
|
46410E
|
46410E
90240-08062 Pin, W/hole(For Intermediate Lever)[10.1994 -] UCF2# |
90240-08062 |
US $1.60 |
||
|
46420
|
46420
46420-40100
Cable Assy, Parking Brake, No.2
[07.1997 -] UCF2# |
46420-40100 |
— | ||
| replacement | |||||
|
46420
|
46420
46420-40101 Cable Assy, Parking Brake, No.2[07.1997 -] UCF2# |
46420-40101 |
US $59.06 |
||
|
46420A
|
46420A
90949-01578 Clamp, No.1(For Parking Brake Cable)[10.1994 -] UCF2# |
90949-01578 |
US $3.93 |
||
|
46420B
|
46420B
46411-50010 Clamp, No.2(For Parking Brake Cable)[10.1994 -] UCF2# |
46411-50010 |
US $3.79 |
||
|
46420J
|
46420J
90949-01515 Clamp, No.3(For Parking Brake Cable)[10.1994 -] UCF2# |
90949-01515 |
US $3.06 |
||
|
46420L
|
46420L
46421-50020 Clamp, No.4(For Parking Brake Cable)[07.1997 -] UCF2# |
46421-50020 |
US $3.79 |
||
|
46420N
|
46420N
46431-50020 Clamp, No.5(For Parking Brake Cable)[07.1997 -] UCF2# |
46431-50020 |
US $3.79 |
||
|
46430
|
46430
46430-40020
Cable Assy, Parking Brake, No.3
[07.1997 -] UCF2# |
46430-40020 |
— | ||
| replacement | |||||
|
46430
|
46430
46430-40021 Cable Assy, Parking Brake, No.3[07.1997 -] UCF2# |
46430-40021 |
US $59.06 |
||
|
46458
|
46458
46458-30060 Retainer, Cable[10.1994 -] UCF2# |
46458-30060 |
US $4.89 |
||
|
91651G0620
|
91651G0620
91651-G0620 New Genuine Part |
91651-G0620 |
US $1.02 |
||
|
9011908A61
|
9011908A61
90119-08A61 New Genuine Part |
90119-08A61 |
US $1.75 |
||
|
9011906428
|
9011906428
90119-06428 New Genuine Part |
90119-06428 |
US $1.28 |
||
|
9011908681
|
9011908681
90119-08681 BOLT W-WASHER |
90119-08681 |
from US $2.56 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.84 |
||
|
9017908013
|
9017908013
90179-08013 Nut, Wire Adjusting, No.1 |
90179-08013 |
from US $5.12 |
||
|
9017908143
|
9017908143
90179-08143 NUT |
90179-08143 |
US $1.76 |
||
|
9046806071
|
9046806071
90468-06071 New Genuine Part |
90468-06071 |
US $1.31 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.36 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.70 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9161660612
|
9161660612
91616-60612
Bolt (For Transfer Oil Receiver No.1)
|
91616-60612 |
— | ||
| replacement | |||||
|
9161660612
|
9161660612
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9162140814
|
9162140814
91621-40814 Bolt |
91621-40814 |
US $1.44 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.72 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9615003000
|
9615003000
96150-03000 Ring, Snap(For Idle Gear No.1) |
96150-03000 |
US $2.56 |
||
