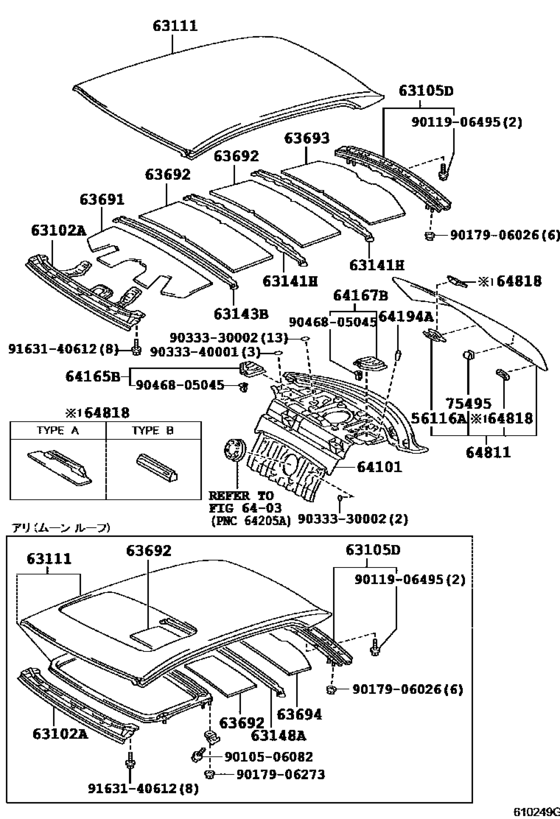

Roof Panel & Back Window Glass ([10.1994 - ] (9410- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56116A
|
56116A
56116-50020 Spacer, Windshield Glass[07.1997 -] UCF2# |
56116-50020 |
US $4.37 |
||
|
63102A
|
63102A
63102-50030 Panel Sub-Assy, Windshield Header[10.1994 - 08.1998] UCF2# |
63102-50030 |
US $77.17 |
||
| replacement | |||||
|
63102A
|
63102A
63102-50031
Panel Sub-Assy, Windshield Header
[10.1994 - 08.1998] UCF2# |
63102-50031 |
— | ||
|
63102A
|
63102A
63102-50031
Panel Sub-Assy, Windshield Header
[08.1998 -] UCF2# |
63102-50031 |
— | ||
|
63102A
|
63102A
63102-50040 Panel Sub-Assy, Windshield Header[10.1994 - 08.1998] UCF2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
63102-50040 |
US $62.46 |
||
| replacement | |||||
|
63102A
|
63102A
63102-50041 Panel Sub-Assy, Windshield Header[10.1994 - 08.1998] UCF2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
63102-50041 |
US $62.46 |
||
|
63102A
|
63102A
63102-50041 Panel Sub-Assy, Windshield Header[08.1998 -] UCF2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
63102-50041 |
US $62.46 |
||
|
63105D
|
63105D
63105-50020 Frame Sub-Assy, Back Window, Upper[10.1994 -] UCF2# |
63105-50020 |
US $155.79 |
||
|
63111
|
63111
63111-50030 Panel, Roof[10.1994 - 08.1998] UCF2# |
63111-50030 |
US $818.27 |
||
| replacement | |||||
|
63111
|
63111
63111-50031 Panel, Roof[10.1994 - 08.1998] UCF2# |
63111-50031 |
US $818.27 |
||
|
63111
|
63111
63111-50031 Panel, Roof[08.1998 -] UCF2# |
63111-50031 |
US $818.27 |
||
|
63111
|
63111
63111-50900 Panel, Roof[10.1994 - 08.1998] UCF2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
63111-50900 |
US $966.78 |
||
| replacement | |||||
|
63111
|
63111
63111-50901 Panel, Roof[10.1994 - 08.1998] UCF2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
63111-50901 |
US $966.78 |
||
|
63111
|
63111
63111-50901 Panel, Roof[08.1998 -] UCF2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
63111-50901 |
US $966.78 |
||
|
63141H
|
63141H
63141-50020 Reinforcement, Roof Panel, Center[10.1994 -] UCF2# |
63141-50020 |
US $39.46 |
||
|
63143B
|
63143B
63143-50020 Reinforcement, Roof Panel, No.3[10.1994 -] UCF2# |
63143-50020 |
US $39.31 |
||
|
63148A
|
63148A
63148-50020 Reinforcement, Roof Panel, No.7[10.1994 -] UCF2# |
63148-50020 |
US $56.64 |
||
|
63691
|
63691
63691-50030 Pad, Roof Silencer, No.21[07.1997 -] UCF2# |
63691-50030 |
US $35.67 |
||
|
63692
|
63692
63692-50020 Pad, Roof Silencer, No.22[10.1994 -] UCF2# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
63692-50020 |
US $8.74 |
||
|
63692
|
63692
63692-50030 Pad, Roof Silencer, No.22[07.1997 -] UCF2# |
63692-50030 |
US $40.77 |
||
|
63693
|
63693
63693-50020 Pad, Roof Silencer, No.23[07.1997 -] UCF2# |
63693-50020 |
US $44.99 |
||
|
63694
|
63694
63694-50020 Pad, Roof Silencer, No.24[07.1997 -] UCF2# |
63694-50020 |
US $25.19 |
||
|
64101
|
64101
64101-50140 Panel Sub-Assy, Upper Back[10.1994 - 04.1999] UCF2# |
64101-50140 |
US $496.50 |
||
| replacement | |||||
|
64101
|
64101
64101-50141 Panel Sub-Assy, Upper Back[10.1994 - 04.1999] UCF2# |
64101-50141 |
US $499.41 |
||
|
64101
|
64101
64101-50141 Panel Sub-Assy, Upper Back[04.1999 - 08.2000] UCF2# |
64101-50141 |
US $499.41 |
||
|
64165B
|
64165B
64165-50020 Cover, Upper Back Panel Hole, No.1[10.1994 -] UCF2# |
64165-50020 |
US $19.66 |
||
|
64167B
|
64167B
64167-50020 Cover, Upper Back Panel Hole, No.3[10.1994 -] UCF2# |
64167-50020 |
US $19.66 |
||
|
64194A
|
64194A
64194-30010 Pad, Back Panel Silencer, Upper[07.1997 -] UCF2# |
64194-30010 |
US $2.48 |
||
|
64811
|
64811
64810-50230 Glass, Back Window[07.1997 - 08.1999] UCF20..A ＊ＵＶＣＴＴ，厚さ＝５．０，グリーン |
64810-50230 |
US $1,645.28 |
||
|
64818
|
64818
56115-30090 Stopper, Windshield Glass, No.1[10.1994 -] UCF2# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
56115-30090 |
US $3.36 |
||
|
64818
|
64818
64818-50030 Spacer, Back Window Glass[10.1994 -] UCF2# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
64818-50030 |
US $1.75 |
||
|
75495
|
75495
75495-50040 Clip, Outside Moulding, No.4[07.1997 -] UCF2# |
75495-50040 |
US $1.75 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9011906495
|
9011906495
90119-06495 New Genuine Part |
90119-06495 |
US $0.76 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017906273
|
9017906273
90179-06273 New Genuine Part |
90179-06273 |
US $1.60 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9033340001
|
9033340001
90333-40001 Plate, Noise Control, No.1 |
90333-40001 |
from US $1.60 |
||
|
9046805045
|
9046805045
90468-05045 New Genuine Part |
90468-05045 |
US $1.31 |
||
|
9163140612
|
9163140612
91631-40612 New Genuine Part |
91631-40612 |
US $1.75 |
||
