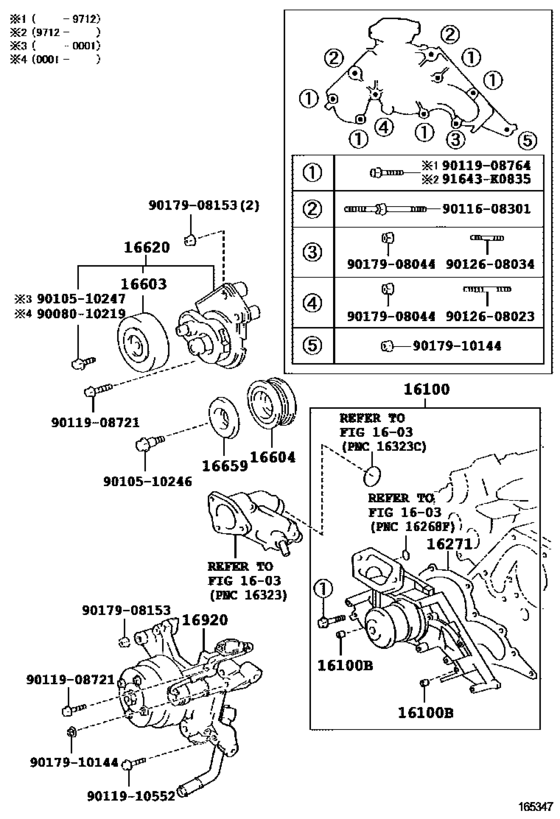

Water Pump ([07.1997 - ] (9707- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-59275
Pump Assy, Engine Water
[07.1997 -] 1UZFE..UCF2# |
16100-59275 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-59276 Pump Assy, Engine Water[07.1997 -] 1UZFE..UCF2# |
16100-59276 |
from US $179.13 |
||
|
16100B
|
16100B
90253-11021 Pin, Ring[10.1994 -] 1UZFE..UCF2# |
90253-11021 |
from US $1.50 |
||
|
16271
|
16271
16271-50010 Gasket, Water Pump[12.1997 -] 1UZFE..UCF2# |
16271-50010 |
US $10.88 |
||
|
16603
|
16603
16603-0W010 Pulley Sub-Assy, Idler, No.1[05.1995 - 01.2000] 1UZFE..UCF2# |
16603-0W010 |
from US $72.99 |
||
|
16603
|
16603
16603-0W030 Pulley Sub-Assy, Idler, No.1[01.2000 -] 1UZFE..UCF2# |
16603-0W030 |
US $134.68 |
||
|
16604
|
16604
16604-50030 Pulley Sub-Assy, Idler, No.2[07.1997 -] 1UZFE..UCF2# |
16604-50030 |
from US $62.54 |
||
|
16620
|
16620
16620-0W036
Tensioner Assy, V-Ribbed Belt
[07.1997 -] 1UZFE..UCF2# |
16620-0W036 |
— | ||
| replacement | |||||
|
16620
|
16620
16620-0W101 Tensioner Assy, V-Ribbed Belt[07.1997 -] 1UZFE..UCF2# |
16620-0W101 |
from US $72.68 |
||
|
16659
|
16659
16659-50021
Plate, Idler Pulley Cover, No.2
[10.1996 - 12.1997] 1UZFE..UCF2# |
16659-50021 |
— | ||
|
16659
|
16659
16659-50022 Plate, Idler Pulley Cover, No.2[12.1997 -] 1UZFE..UCF2# |
16659-50022 |
from US $3.45 |
||
|
16920
|
16920
16920-50060 Pump Assy, Hydraulic Motor Vane[07.1997 -] 1UZFE..UCF2# |
16920-50060 |
US $1,674.40 |
||
|
91643K0835
|
91643K0835
91643-K0835 BOLT WWASHER |
91643-K0835 |
US $1.44 |
||
|
9008010219
|
9008010219
90080-10219 Bolt(For Idler Pulley) |
90080-10219 |
US $1.89 |
||
|
9010510246
|
9010510246
90105-10246 BOLT WASHER BASED |
90105-10246 |
US $3.68 |
||
|
9010510247
|
9010510247
90105-10247 Bolt(For Idler Pulley) |
90105-10247 |
US $3.32 |
||
|
9011608301
|
9011608301
90116-08301 BOLT STUD |
90116-08301 |
US $5.68 |
||
|
9011908721
|
9011908721
90119-08721 BOLT WWASHER |
90119-08721 |
US $3.68 |
||
|
9011908764
|
9011908764
90119-08764 BOLT W-WASHER |
90119-08764 |
US $2.04 |
||
|
9011910552
|
9011910552
90119-10552 BOLT WWASHER |
90119-10552 |
US $5.68 |
||
|
9012608023
|
9012608023
90126-08023 New Genuine Part |
90126-08023 |
US $15.87 |
||
|
9012608034
|
9012608034
90126-08034 STUD HEX LOBULAR |
90126-08034 |
US $5.10 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.33 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017910144
|
9017910144
90179-10144 NUT |
90179-10144 |
US $2.77 |
||
