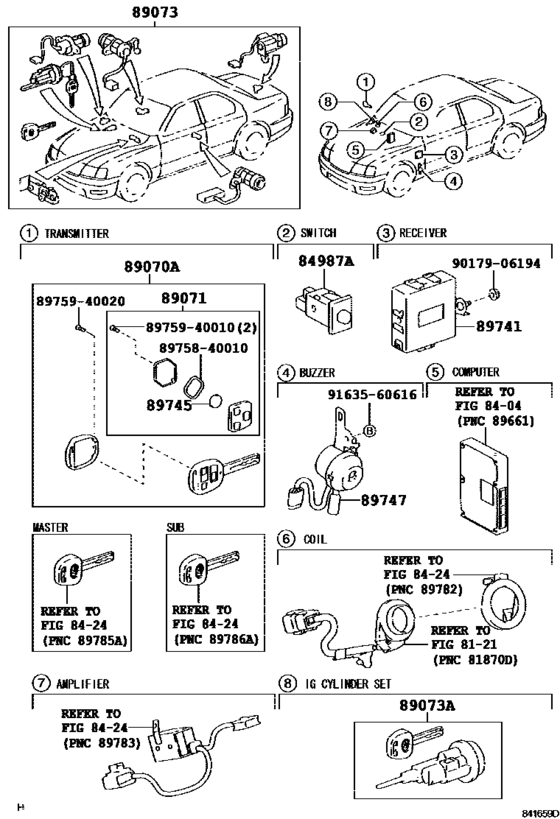

Wireless Door Lock ([07.1997 - ] (9707- )) Diagram Toyota CELSIOR
- Year
- 1997 - 2000
- Sales region
- Japan
- Frame
- UCF20
- grade
- A
- ENGINE
- 1UZFE
- From
- 07.1997
- To
- 08.2000
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84987A
|
84987A
84987-50040 Switch, Keyless Entry Cancel[10.1994 -] UCF2# |
84987-50040 |
US $33.49 |
||
|
89070A
|
89070A
89070-50280 Transmitter, Door Control (Cut Key)[07.1997 -] UCF2# |
89070-50280 |
US $431.20 |
||
|
89071
|
89071
89071-50080
Module Set, Transmitter Sub-Assy, Door Control
[07.1997 -] UCF2# |
89071-50080 |
— | ||
| replacement | |||||
|
89071
|
89071
89071-50081 Module Set, Transmitter Sub-Assy, Door Control[07.1997 -] UCF2# |
89071-50081 |
US $256.32 |
||
|
89073
|
89073
89073-50010 Cylinder Set, Lock W/transmitter Housing(Less Module)[07.1997 -] UCF2# |
89073-50010 |
US $1,119.66 |
||
|
89073A
|
89073A
89073-50130 Ign Cylinder Set Lock W/transmitter Housing (Cut Key)[07.1997 -] UCF2# |
89073-50130 |
US $430.98 |
||
|
89741
|
89741
89741-50300 Receiver, Door Control[07.1997 -] UCF2# |
89741-50300 |
US $837.20 |
||
|
89745
|
89745
89745-40010
Transmitter Battery
[07.1997 - 08.2000] UCF2# |
89745-40010 |
— | ||
|
89747
|
89747
89747-50040 Buzzer, Wireless Door Lock[07.1997 - 08.2000] UCF2# |
89747-50040 |
US $84.45 |
||
|
8975840010
|
8975840010
89758-40010 Packing, Door Control Transmitter |
89758-40010 |
US $3.20 |
||
|
8975940010
|
8975940010
89759-40010 Screw, Door Control Transmitter |
89759-40010 |
US $1.92 |
||
|
8975940020
|
8975940020
89759-40020 Screw, Door Control Transmitter |
89759-40020 |
from US $1.05 |
||
|
9017906194
|
9017906194
90179-06194
Nut (For Rear Wiper Arm Setting)
|
90179-06194 |
— | ||
| replacement | |||||
|
9017906194
|
9017906194
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
