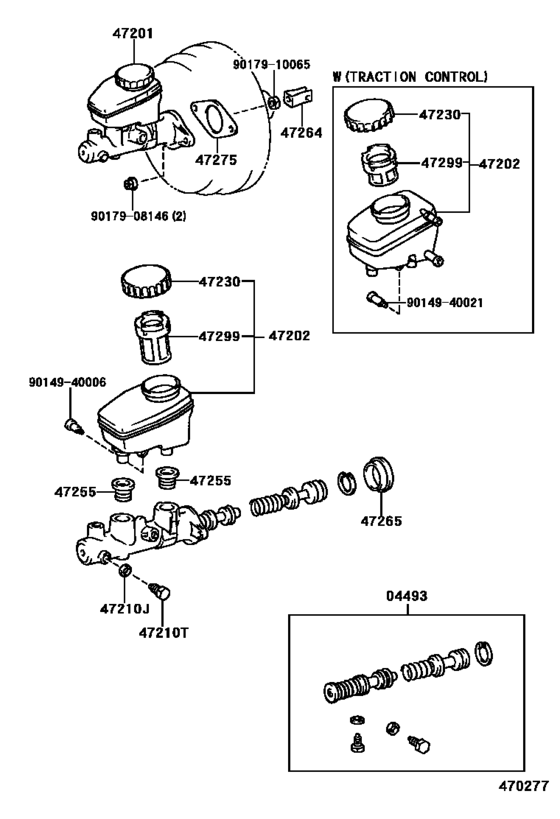

Brake Master Cylinder ([10.1994 - 07.1997] (9410-9707)) Diagram Toyota CELSIOR
- Year
- 1994 - 1997
- Sales region
- Japan
- Frame
- UCF20
- grade
- B
- ENGINE
- 1UZFE
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-50030 Cylinder Kit, Brake Master[10.1994 - 08.1996] UCF2# |
04493-50030 |
US $155.24 |
||
|
04493
|
04493
04493-50040 Cylinder Kit, Brake Master[08.1996 - 07.1997] UCF2# |
04493-50040 |
US $87.54 |
||
|
47201
|
47201
47201-50180
Cylinder Sub-Assy, Brake Master
[10.1994 - 08.1996] UCF2#..B,C; UCF20..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
47201-50180 |
— | ||
|
47201
|
47201
47201-50220
Cylinder Sub-Assy, Brake Master
[08.1996 - 07.1997] UCF2#..B,C; UCF20..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
47201-50220 |
— | ||
|
47202
|
47202
47220-50080
Reservoir Sub-Assy, Brake Master Cylinder
[10.1994 - 07.1997] UCF2#..B,C; UCF20..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
47220-50080 |
— | ||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[10.1994 - 07.1997] UCF2#..B,C; UCF20..A ｱﾘ(*TRC) |
90430-06104 |
from US $1.60 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[10.1994 - 07.1997] UCF2#..B,C; UCF20..A ｱﾘ(*TRC) |
90109-06077 |
from US $2.56 |
||
|
47230
|
47230
47230-20100
Cap Assy, Brake Master Cylinder Reservoir Filler
[10.1994 -] UCF2# |
47230-20100 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler[10.1994 -] UCF2# |
47230-47090 |
from US $12.32 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[10.1994 -] UCF2# |
47255-16010 |
from US $5.76 |
||
|
47264
|
47264
47264-28010 Clevis, Master Cylinder Push Rod[10.1994 -] UCF2# |
47264-28010 |
US $7.16 |
||
|
47265
|
47265
47265-20050 Boot, Clutch Master Cylinder[08.1996 -] UCF2# |
47265-20050 |
from US $4.80 |
||
|
47275
|
47275
47275-12020 Gasket, Brake Master Cylinder[10.1994 -] UCF2# |
47275-12020 |
from US $1.92 |
||
|
47299
|
47299
47299-17010
Strainer, Brake Master Cylinder Reservoir
[10.1994 - 08.1996] UCF2#..B,C; UCF20..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
47299-17010 |
— | ||
| replacement | |||||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[10.1994 - 08.1996] UCF2#..B,C; UCF20..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
47299-20060 |
US $1.89 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[08.1996 -] UCF2#..B,C;UCF20..A..5FC |
47299-20060 |
US $1.89 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
from US $1.44 |
||
|
9014940021
|
9014940021
90149-40021 New Genuine Part |
90149-40021 |
US $1.28 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.44 |
||
