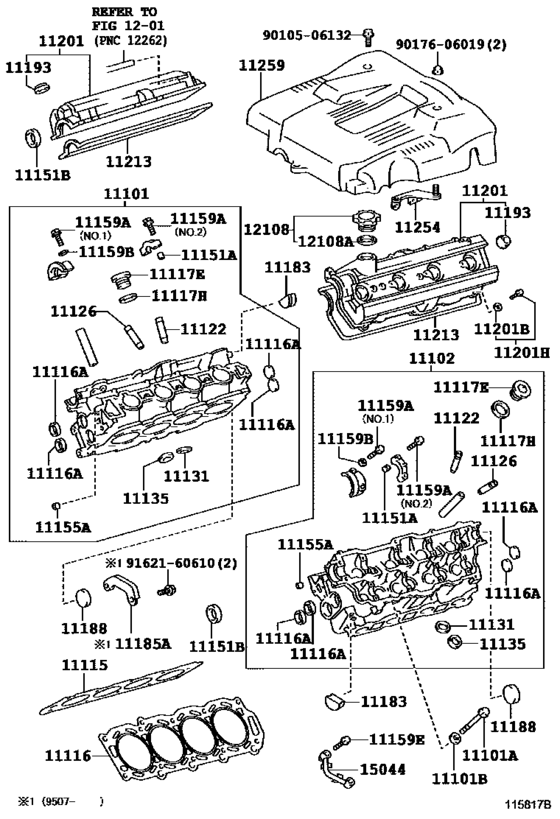

Cylinder Head ([10.1994 - 07.1997] (9410-9707)) Diagram Toyota CELSIOR
- Year
- 1994 - 1997
- Sales region
- Japan
- Frame
- UCF20
- grade
- B
- ENGINE
- 1UZFE
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-59145 Head Sub-Assy, Cylinder[10.1994 - 07.1997] 1UZFE..UCF2# |
11101-59145 |
US $2,169.44 |
||
|
11101A
|
11101A
90910-02088 Bolt(For Cylinder Head Set)[10.1994 - 07.2000] 1UZFE..UCF2# |
90910-02088 |
US $5.12 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[10.1994 - 01.1998] 1UZFE..UCF2# |
90201-10344 |
from US $1.03 |
||
|
11102
|
11102
11101-59145 Head Sub-Assy, Cylinder[10.1994 - 07.1997] 1UZFE..UCF2# |
11101-59145 |
US $2,169.44 |
||
|
11115
|
11115
11115-50021 Gasket, Cylinder Head[10.1994 - 07.1997] 1UZFE..UCF2# |
11115-50021 |
from US $72.79 |
||
|
11116
|
11116
11116-50011 Gasket, Cylinder Head, No.2[10.1994 - 07.1997] 1UZFE..UCF2# |
11116-50011 |
US $75.26 |
||
|
11116A
|
11116A
96411-43000 Plug, Tight, No.1[10.1994 - 07.1997] 1UZFE..UCF2# |
96411-43000 |
from US $3.74 |
||
|
11117E
|
11117E
90341-27006 Plug, W/head Straight Screw, No.1[10.1994 - 08.2000] 1UZFE..UCF2# |
90341-27006 |
from US $5.12 |
||
|
11117H
|
11117H
90430-27005 Gasket(For Cylinder Head Screw Plug)[10.1994 - 08.2000] 1UZFE..UCF2# |
90430-27005 |
from US $1.12 |
||
|
11122
|
11122
11122-74030 Bush, Intake Valve Guide[10.1994 - 07.1997] 1UZFE..UCF2# ＳＴＤ |
11122-74030 |
US $8.80 |
||
|
11122
|
11122
11123-74030 Bush, Intake Valve Guide[10.1994 - 07.1997] 1UZFE..UCF2# Ｏ／Ｓ ０．０５ |
11123-74030 |
US $7.86 |
||
|
11126
|
11126
11126-50050 Bush, Exhaust Valve Guide[10.1994 - 07.1997] 1UZFE..UCF2# ＳＴＤ |
11126-50050 |
US $10.34 |
||
|
11126
|
11126
11127-50050 Bush, Exhaust Valve Guide[10.1994 - 07.1997] 1UZFE..UCF2# Ｏ／Ｓ ０．０５ |
11127-50050 |
US $10.34 |
||
|
11131
|
11131
11131-50020 Seat, Intake Valve[10.1994 - 07.1997] 1UZFE..UCF2# ＳＴＤ |
11131-50020 |
US $16.45 |
||
|
11131
|
11131
11132-50020 Seat, Intake Valve[10.1994 - 07.1997] 1UZFE..UCF2# Ｏ／Ｓ ０．０３ |
11132-50020 |
US $10.34 |
||
|
11135
|
11135
11135-50020 Seat, Exhaust Valve[10.1994 - 07.1997] 1UZFE..UCF2# ＳＴＤ |
11135-50020 |
US $16.45 |
||
|
11135
|
11135
11136-50020 Seat, Exhaust Valve[10.1994 - 07.1997] 1UZFE..UCF2# Ｏ／Ｓ ０．０３ |
11136-50020 |
US $10.34 |
||
|
11151A
|
11151A
90253-10006 Pin, Ring(For Camshaft Bearing Cap Setting)[10.1994 - 07.1997] 1UZFE..UCF2# 長さ＝７，外径＝１０ |
90253-10006 |
US $0.79 |
||
|
11151B
|
11151B
90311-38036 Seal, Oil(For Camshaft Setting)[10.1994 - 07.1997] 1UZFE..UCF2# |
90311-38036 |
from US $4.96 |
||
|
11155A
|
11155A
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[10.1994 - 07.1997] 1UZFE..UCF2# |
90253-11001 |
US $1.92 |
||
|
11159A
|
11159A
90105-07003 Bolt(For Head To Camshaft Bearing Cap)[10.1994 - 07.1997] 1UZFE..UCF2# ＮＯ．１ |
90105-07003 |
US $1.89 |
||
|
11159A
|
11159A
90119-07007 Bolt(For Head To Camshaft Bearing Cap)[10.1994 - 07.1997] 1UZFE..UCF2# ＮＯ．２ |
90119-07007 |
US $0.96 |
||
|
11159B
|
11159B
90210-07003 Washer, Seal(For Head To Camshaft Bearing Cap)[10.1994 - 08.2000] 1UZFE..UCF2# |
90210-07003 |
from US $3.84 |
||
|
11159E
|
11159E
90119-07006 Bolt(For Head To Camshaft Bearing Cap)[10.1994 -] 1UZFE..UCF2# |
90119-07006 |
US $1.31 |
||
|
11183
|
11183
11183-50010 Plug, Semicircular[10.1994 - 07.1997] 1UZFE..UCF2# |
11183-50010 |
from US $7.78 |
||
|
11185A
|
11185A
11185-50010 Cover, Camshaft Rear Housing, No.1[07.1995 - 10.1995] 1UZFE..UCF2# |
11185-50010 |
US $6.84 |
||
| replacement | |||||
|
11185A
|
11185A
11185-50011 Cover, Camshaft Rear Housing, No.1[07.1995 - 10.1995] 1UZFE..UCF2# |
11185-50011 |
US $6.70 |
||
|
11185A
|
11185A
11185-50011 Cover, Camshaft Rear Housing, No.1[10.1995 - 07.1997] 1UZFE..UCF2# |
11185-50011 |
US $6.70 |
||
|
11188
|
11188
11188-62010 Plug, Camshaft Housing[10.1994 - 07.1997] 1UZFE..UCF2# |
11188-62010 |
from US $9.61 |
||
|
11193
|
11193
11193-15010 Gasket(For Spark Plug Tube)[10.1994 - 07.1997] 1UZFE..UCF2# |
11193-15010 |
from US $7.94 |
||
|
11201
|
11201
11201-50021
Cover Sub-Assy, Cylinder Head
[10.1994 - 07.1997] 1UZFE..UCF2# 右側 |
11201-50021 |
— | ||
|
11201
|
11201
11202-50020 Cover Sub-Assy, Cylinder Head[10.1994 - 07.1997] 1UZFE..UCF2# 左側 |
11202-50020 |
US $346.53 |
||
|
11201B
|
11201B
90210-07001 Washer, Seal(For Cylinder Head Cover)[10.1994 - 07.1997] 1UZFE..UCF2# |
90210-07001 |
from US $2.34 |
||
|
11201H
|
11201H
90109-06163 Bolt(For Cylinder Head Cover)[10.1994 - 07.1997] 1UZFE..UCF2# |
90109-06163 |
from US $1.40 |
||
|
11213
|
11213
11213-50020
Gasket, Cylinder Head Cover
[10.1994 - 08.1996] 1UZFE..UCF2# |
11213-50020 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-50021 Gasket, Cylinder Head Cover[10.1994 - 08.1996] 1UZFE..UCF2# |
11213-50021 |
from US $22.50 |
||
|
11213
|
11213
11213-50021 Gasket, Cylinder Head Cover[08.1996 - 07.1997] 1UZFE..UCF2# |
11213-50021 |
from US $22.50 |
||
|
11254
|
11254
11254-50010 Bracket, V-Bank Cover, No.1[10.1994 - 07.1997] 1UZFE..UCF2# |
11254-50010 |
US $8.15 |
||
|
11259
|
11259
11259-50010 Cover, V-Bank[10.1994 - 07.1997] 1UZFE..UCF2# |
11259-50010 |
US $155.79 |
||
|
12108
|
12108
12180-50010 Cap Sub-Assy, Oil Filler[10.1994 - 07.1997] 1UZFE..UCF2# |
12180-50010 |
from US $15.35 |
||
|
12108A
|
12108A
12195-50010 Gasket(For Oil Filler Cap)[10.1994 -] 1UZFE..UCF2# |
12195-50010 |
US $14.72 |
||
|
15044
|
15044
15044-50010 Pipe Sub-Assy, Camshaft Oil Feed[10.1994 - 07.1997] 1UZFE..UCF2# |
15044-50010 |
US $13.10 |
||
|
9010506132
|
9010506132
90105-06132
BOLT FLANGE
|
90105-06132 |
— | ||
| replacement | |||||
|
9010506132
|
9010506132
91511-G0628 BOLT, FLANGE |
91511-G0628 |
from US $0.84 |
||
|
9017606019
|
9017606019
90176-06019 Nut (For Rear Wiper Arm Setting) |
90176-06019 |
US $1.76 |
||
|
9162160610
|
9162160610
91621-60610
New Genuine Part
|
91621-60610 |
— | ||
| replacement | |||||
|
9162160610
|
9162160610
91651-B0612 Bolt |
91651-B0612 |
US $1.92 |
||
