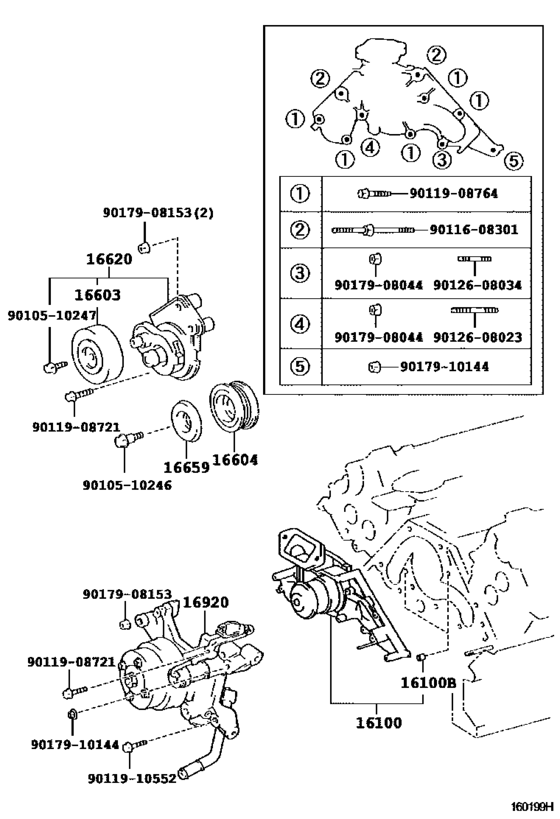

Water Pump ([10.1994 - 07.1997] (9410-9707)) Diagram Toyota CELSIOR
- Year
- 1994 - 1997
- Sales region
- Japan
- Frame
- UCF20
- grade
- B
- ENGINE
- 1UZFE
- From
- 10.1994
- To
- 07.1997
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-50022
Pump Assy, Engine Water
[10.1994 - 07.1997] 1UZFE..UCF2# |
16100-50022 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-50023 Pump Assy, Engine Water[10.1994 - 07.1997] 1UZFE..UCF2# |
16100-50023 |
from US $195.68 |
||
|
16100B
|
16100B
90253-11021 Pin, Ring[10.1994 -] 1UZFE..UCF2# |
90253-11021 |
from US $1.50 |
||
|
16603
|
16603
16603-0W010 Pulley Sub-Assy, Idler, No.1[05.1995 - 01.2000] 1UZFE..UCF2# |
16603-0W010 |
from US $75.17 |
||
|
16603
|
16603
16603-50010 Pulley Sub-Assy, Idler, No.1[10.1994 - 05.1995] 1UZFE..UCF2# |
16603-50010 |
US $123.76 |
||
| replacement | |||||
|
16603
|
16603
16603-0W010 Pulley Sub-Assy, Idler, No.1[10.1994 - 05.1995] 1UZFE..UCF2# |
16603-0W010 |
from US $75.17 |
||
|
16604
|
16604
16604-50010 Pulley Sub-Assy, Idler, No.2[10.1994 - 07.1997] 1UZFE..UCF2# |
16604-50010 |
US $115.02 |
||
| replacement | |||||
|
16604
|
16604
16604-50030 Pulley Sub-Assy, Idler, No.2[10.1994 - 07.1997] 1UZFE..UCF2# |
16604-50030 |
from US $62.54 |
||
|
16620
|
16620
16620-0W030
Tensioner Assy, V-Ribbed Belt
[10.1994 - 05.1995] 1UZFE..UCF2# |
16620-0W030 |
— | ||
| replacement | |||||
|
16620
|
16620
16620-0W035
Tensioner Assy, V-Ribbed Belt
[10.1994 - 05.1995] 1UZFE..UCF2# |
16620-0W035 |
— | ||
|
16620
|
16620
16620-0W031 Tensioner Assy, V-Ribbed Belt[05.1995 - 07.1995] 1UZFE..UCF2# |
16620-0W031 |
US $390.21 |
||
| replacement | |||||
|
16620
|
16620
16620-0W035
Tensioner Assy, V-Ribbed Belt
[05.1995 - 07.1995] 1UZFE..UCF2# |
16620-0W035 |
— | ||
|
16620
|
16620
16620-0W032 Tensioner Assy, V-Ribbed Belt[07.1995 - 08.1995] 1UZFE..UCF2# |
16620-0W032 |
US $390.21 |
||
| replacement | |||||
|
16620
|
16620
16620-0W035
Tensioner Assy, V-Ribbed Belt
[07.1995 - 08.1995] 1UZFE..UCF2# |
16620-0W035 |
— | ||
|
16620
|
16620
16620-0W033 Tensioner Assy, V-Ribbed Belt[08.1995 - 09.1995] 1UZFE..UCF2# |
16620-0W033 |
US $390.21 |
||
| replacement | |||||
|
16620
|
16620
16620-0W035
Tensioner Assy, V-Ribbed Belt
[08.1995 - 09.1995] 1UZFE..UCF2# |
16620-0W035 |
— | ||
|
16620
|
16620
16620-0W034 Tensioner Assy, V-Ribbed Belt[09.1995 - 06.1997] 1UZFE..UCF2# |
16620-0W034 |
US $391.66 |
||
| replacement | |||||
|
16620
|
16620
16620-0W035
Tensioner Assy, V-Ribbed Belt
[09.1995 - 06.1997] 1UZFE..UCF2# |
16620-0W035 |
— | ||
|
16620
|
16620
16620-0W035
Tensioner Assy, V-Ribbed Belt
[06.1997 - 07.1997] 1UZFE..UCF2# |
16620-0W035 |
— | ||
|
16659
|
16659
16659-50020 Plate, Idler Pulley Cover, No.2[10.1994 - 10.1996] 1UZFE..UCF2# |
16659-50020 |
US $6.84 |
||
| replacement | |||||
|
16659
|
16659
16659-50021
Plate, Idler Pulley Cover, No.2
[10.1994 - 10.1996] 1UZFE..UCF2# |
16659-50021 |
— | ||
|
16659
|
16659
16659-50021
Plate, Idler Pulley Cover, No.2
[10.1996 - 12.1997] 1UZFE..UCF2# |
16659-50021 |
— | ||
|
16920
|
16920
16920-50050 Pump Assy, Hydraulic Motor Vane[10.1994 - 07.1997] 1UZFE..UCF2# |
16920-50050 |
US $1,674.40 |
||
|
9010510246
|
9010510246
90105-10246 BOLT WASHER BASED |
90105-10246 |
US $3.68 |
||
|
9010510247
|
9010510247
90105-10247 Bolt(For Idler Pulley) |
90105-10247 |
US $3.32 |
||
|
9011608301
|
9011608301
90116-08301 BOLT STUD |
90116-08301 |
US $5.68 |
||
|
9011908721
|
9011908721
90119-08721 BOLT WWASHER |
90119-08721 |
US $3.68 |
||
|
9011908764
|
9011908764
90119-08764 BOLT W-WASHER |
90119-08764 |
US $2.04 |
||
|
9011910552
|
9011910552
90119-10552 BOLT WWASHER |
90119-10552 |
US $5.68 |
||
|
9012608023
|
9012608023
90126-08023 New Genuine Part |
90126-08023 |
US $15.87 |
||
|
9012608034
|
9012608034
90126-08034 STUD HEX LOBULAR |
90126-08034 |
US $5.10 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.33 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017910144
|
9017910144
90179-10144 NUT |
90179-10144 |
US $2.77 |
||
