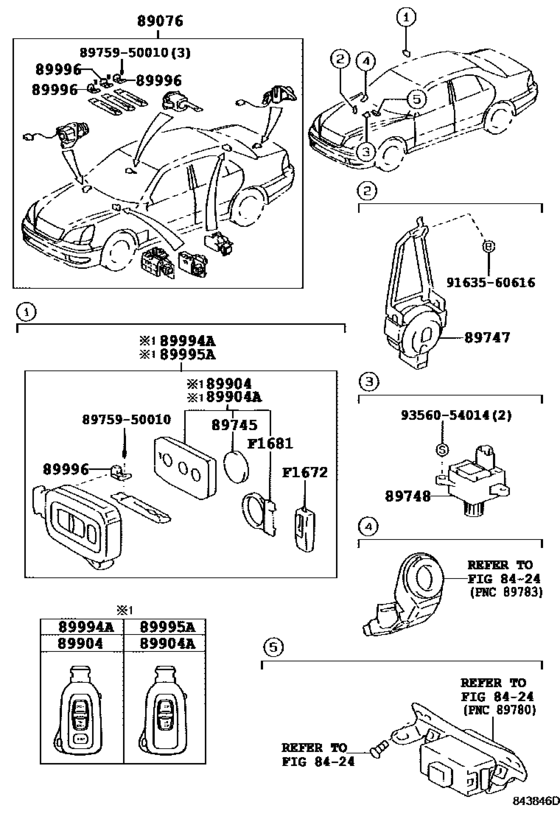

Wireless Door Lock ([08.2000 - 07.2003] ｽﾏ-ﾄ ｷ- ｼｽﾃﾑ (0008-0307)B,C) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- B
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89076
|
89076
89076-50140 Cylinder Set, Lock W/transmitter Case[08.2000 - 07.2003] UCF3#..B,C 無し（トランスミッタケース） |
89076-50140 |
US $901.26 |
||
|
89745
|
89745
89745-40010
Transmitter Battery
[08.2000 - 07.2003] UCF3# |
89745-40010 |
— | ||
|
89745
|
89745
89745-50020 Battery, Transmitter[08.2000 - 07.2003] UCF3#..B,C ｱﾘ(ｽﾏ-ﾄｷ- ｼｽﾃﾑ) |
89745-50020 |
from US $7.04 |
||
|
89747
|
89747
89747-50050 Buzzer, Wireless Door Lock[08.2000 - 07.2003] UCF3# |
89747-50050 |
US $84.45 |
||
|
89748
|
89748
89748-50010 Controller, Wireless Door Lock Buzzer[08.2000 - 07.2003] UCF3# |
89748-50010 |
US $75.71 |
||
|
89904
|
89904
89904-50090 Transmitter Sub-Assy, Electrical Key[08.2000 - 10.2000] UCF3#..B,C |
89904-50090 |
US $463.01 |
||
| replacement | |||||
|
89904
|
89904
89904-50091 Transmitter Sub-Assy, Electrical Key[08.2000 - 10.2000] UCF3#..B,C |
89904-50091 |
from US $392.89 |
||
|
89904
|
89904
89904-50091 Transmitter Sub-Assy, Electrical Key[10.2000 - 07.2003] UCF3#..B,C |
89904-50091 |
from US $392.89 |
||
|
89904A
|
89904A
89904-50100 Transmitter Sub-Assy, Electrical Key(Sub Key)[08.2000 - 07.2003] UCF3#..B,C |
89904-50100 |
US $364 |
||
|
89994A
|
89994A
89994-50070 Transmitter, Electrical Key(Cut Key)[08.2000 - 07.2003] UCF3#..B,C |
89994-50070 |
US $573.79 |
||
|
89995A
|
89995A
89995-50070 Transmitter, Electrical Key Sub(Cut Key)[08.2000 - 07.2003] UCF3#..B,C |
89995-50070 |
US $512.51 |
||
|
89996
|
89996
89996-50010 Clip, Electrical Key TransmitterELECTRICAL KEY TRANSMITTER [08.2000 - 07.2003] UCF3#..B,C |
89996-50010 |
US $1.89 |
||
|
8975950010
|
8975950010
89759-50010 Screw, Door Control Transmitter |
89759-50010 |
US $1.60 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9356054014
|
9356054014
93560-54014 SCREW |
93560-54014 |
from US $0.74 |
||
|
F1672
|
F1672
F1672-50010 Cover, Door Control Transmitter, No.1DOOR CONTROL TRANSMITTER, NO.1 [08.2000 - 07.2003] UCF3#..B,C |
F1672-50010 |
US $6.47 |
||
|
F1681
|
F1681
F1681-50010 Cover, Door Control Transmitter BatteryDOOR CONTROL TRANSMITTER BATTERY [08.2000 - 07.2003] UCF3#..B,C |
F1681-50010 |
US $4.80 |
||
