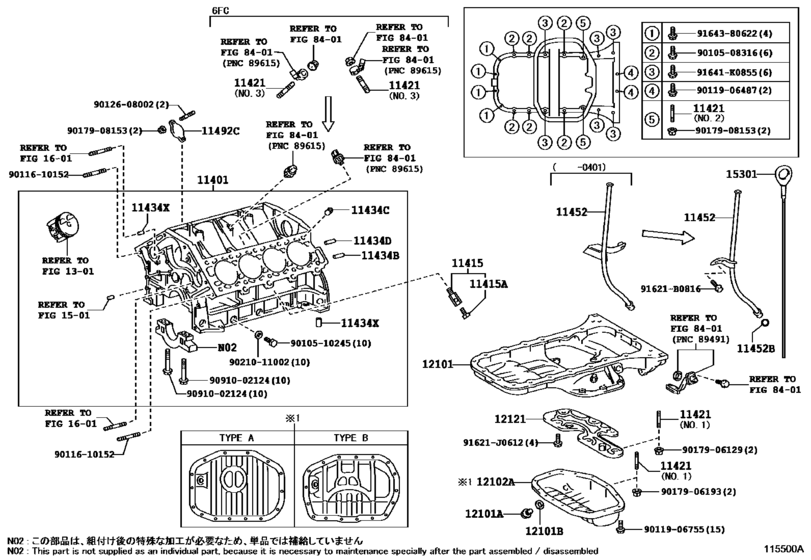

Cylinder Block ([08.2000 - ] (0008- )) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- A
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-59735 Block Sub-Assy, Cylinder[08.2000 - 07.2003] 3UZFE..UCF3# |
11401-59735 |
US $6,158.88 |
||
|
11415
|
11415
90910-09095 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.2000 - 07.2003] 3UZFE..UCF3# |
90910-09095 |
from US $5.94 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[08.2000 - 07.2003] 3UZFE..UCF3# |
90910-09087 |
US $2.89 |
||
|
11421
|
11421
90116-06098 Bolt, Stud(For Oil Pan)[08.2000 - 07.2003] 3UZFE..UCF3# ＮＯ．１ |
90116-06098 |
US $0.87 |
||
|
11421
|
11421
90126-08030 Bolt, Stud(For Oil Pan)[08.2000 - 07.2003] 3UZFE..UCF3# ＮＯ．２ |
90126-08030 |
US $3.79 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.2000 - 07.2003] 3UZFE..UCF3# 長さ＝２２，外径＝１０ |
90250-10113 |
from US $0.93 |
||
|
11434C
|
11434C
90253-16001 Pin, Straight (For Cylinder Head Set)[08.2000 - 07.2003] 3UZFE..UCF3# 長さ＝２０，外径＝１６ |
90253-16001 |
US $2.62 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[08.2000 - 07.2003] 3UZFE..UCF3# 長さ＝１４，外径＝６ |
90250-06003 |
from US $0.95 |
||
|
11434X
|
11434X
90253-11021 Pin, Ring[08.2000 - 07.2003] 3UZFE..UCF3# |
90253-11021 |
from US $1.37 |
||
|
11452
|
11452
11452-50150 Guide, Oil Level Gage[08.2000 - 07.2003] 3UZFE..UCF3# |
11452-50150 |
US $38.58 |
||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[08.2000 - 07.2003] 3UZFE..UCF3# |
96721-19010 |
from US $1.52 |
||
|
11492C
|
11492C
11492-20010 Plate, Water Seal[03.2001 - 07.2003] 3UZFE..UCF3# |
11492-20010 |
from US $6.40 |
||
|
11492C
|
11492C
11492-50010 Plate, Water Seal[08.2000 - 03.2001] 3UZFE..UCF3# |
11492-50010 |
US $14.41 |
||
| replacement | |||||
|
11492C
|
11492C
11492-20010 Plate, Water Seal[08.2000 - 03.2001] 3UZFE..UCF3# |
11492-20010 |
from US $6.40 |
||
|
12101
|
12101
12111-50120 Pan Sub-Assy, Oil[08.2000 - 07.2003] 3UZFE..UCF3# |
12111-50120 |
US $768.77 |
||
|
12101A
|
12101A
90341-12023 Plug(For Oil Pan Drain)[08.2000 - 07.2003] 3UZFE..UCF3# |
90341-12023 |
from US $3.44 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[08.2000 - 07.2003] 3UZFE..UCF3# |
90430-12031 |
from US $0.78 |
||
|
12102A
|
12102A
12102-50120 Pan Sub-Assy, Oil, No.2[08.2000 - 07.2003] 3UZFE..UCF3# |
12102-50120 |
from US $157.76 |
||
|
12121
|
12121
12121-50150 Plate, Oil Pan Baffle, No.1[08.2000 - 07.2003] 3UZFE..UCF3# |
12121-50150 |
US $36.69 |
||
| replacement | |||||
|
12121
|
12121
12121-50200 Plate, Oil Pan Baffle, No.1[08.2000 - 07.2003] 3UZFE..UCF3# |
12121-50200 |
US $30.58 |
||
|
15301
|
15301
15301-50110 Gage Sub-Assy, Oil Level[08.2000 - 07.2003] 3UZFE..UCF3# |
15301-50110 |
US $16.16 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.78 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.63 |
||
|
91641K0855
|
91641K0855
91641-K0855 New Genuine Part |
91641-K0855 |
US $2.34 |
||
|
9010508316
|
9010508316
90105-08316 New Genuine Part |
90105-08316 |
US $1.31 |
||
|
9010510245
|
9010510245
90105-10245 New Genuine Part |
90105-10245 |
US $1.49 |
||
|
9011610152
|
9011610152
90116-10152 BOLT STUD |
90116-10152 |
US $3.64 |
||
|
9011906487
|
9011906487
90119-06487 New Genuine Part |
90119-06487 |
US $1.31 |
||
|
9011906755
|
9011906755
90119-06755 BOLT WWASHER |
90119-06755 |
US $0.83 |
||
|
9012608002
|
9012608002
90126-08002 New Genuine Part |
90126-08002 |
US $4.08 |
||
|
9017906129
|
9017906129
90179-06129 NUT |
90179-06129 |
US $1.10 |
||
|
9017906193
|
9017906193
90179-06193 New Genuine Part |
90179-06193 |
US $1.02 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.74 |
||
|
9021011002
|
9021011002
90210-11002 New Genuine Part |
90210-11002 |
US $3.55 |
||
|
9091002124
|
9091002124
90910-02124 Bolt(For Crankshaft Bearing Cap Set) |
90910-02124 |
US $2.04 |
||
|
9164380622
|
9164380622
91643-80622 New Genuine Part |
91643-80622 |
US $1.46 |
||
