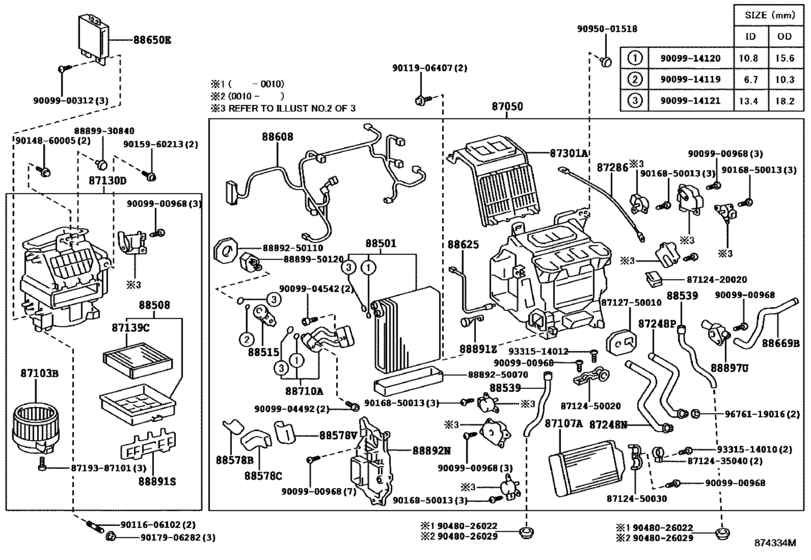

Heating & Air Conditioning - Cooler Unit ([08.2000 - 07.2003] ﾌﾛﾝﾄ (0008-0307)) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- A
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-50070 Radiator Assy, Air Conditioner[08.2000 - 08.2002] UCF3# |
87050-50070 |
US $2,912 |
||
| replacement | |||||
|
87050
|
87050
87050-50071 Radiator Assy, Air Conditioner[08.2000 - 08.2002] UCF3# |
87050-50071 |
US $2,912 |
||
|
87050
|
87050
87050-50071 Radiator Assy, Air Conditioner[08.2002 - 07.2003] UCF3# |
87050-50071 |
US $2,912 |
||
|
87103B
|
87103B
87103-50060
Motor Sub-Assy, Blower W/fan
[08.2000 - 07.2003] UCF3# |
87103-50060 |
— | ||
| replacement | |||||
|
87103B
|
87103B
87103-50080
Motor Sub-Assy, Blower W/fan
[08.2000 - 07.2003] UCF3# |
87103-50080 |
— | ||
|
87107A
|
87107A
87107-50030
Unit Sub-Assy, Heater Radiator
[08.2000 - 07.2003] UCF3# |
87107-50030 |
— | ||
|
87130D
|
87130D
87130-50050
Blower Assy
[08.2000 - 07.2003] UCF3# |
87130-50050 |
— | ||
|
87139C
|
87139C
87139-50030 Filter, Clean Air[08.2000 - 07.2003] UCF3# |
87139-50030 |
from US $85.84 |
||
|
87248N
|
87248N
87156-50090
Pipe, Heater Water Inlet
[08.2000 - 07.2003] UCF3# |
87156-50090 |
— | ||
|
87248P
|
87248P
87156-50080
Pipe, Heater Water Outlet
[08.2000 - 07.2003] UCF3# |
87156-50080 |
— | ||
|
87286
|
87286
87286-50040
Cable, Control
[08.2000 - 07.2003] UCF3# |
87286-50040 |
— | ||
|
87301A
|
87301A
87301-50010
Case Sub-Assy, Heater
[08.2000 - 08.2002] UCF3# |
87301-50010 |
— | ||
| replacements | |||||
|
87301A
|
87301A
87201-50010
Duct Sub-assy, Air, No.1
[08.2000 - 08.2002] UCF3# |
87201-50010 |
— | ||
|
87301A
|
87301A
87201-50020
Duct Sub-assy, Air, No.1
[08.2000 - 08.2002] UCF3# |
87201-50020 |
— | ||
|
87301A
|
87301A
87301-50020
Case Sub-Assy, Heater
[08.2000 - 08.2002] UCF3# |
87301-50020 |
— | ||
|
87301A
|
87301A
87301-50011
Case Sub-Assy, Heater
[08.2002 - 03.2003] UCF3# |
87301-50011 |
— | ||
| replacements | |||||
|
87301A
|
87301A
87201-50010
Duct Sub-assy, Air, No.1
[08.2002 - 03.2003] UCF3# |
87201-50010 |
— | ||
|
87301A
|
87301A
87201-50020
Duct Sub-assy, Air, No.1
[08.2002 - 03.2003] UCF3# |
87201-50020 |
— | ||
|
87301A
|
87301A
87301-50020
Case Sub-Assy, Heater
[08.2002 - 03.2003] UCF3# |
87301-50020 |
— | ||
|
87301A
|
87301A
87301-50020
Case Sub-Assy, Heater
[03.2003 - 07.2003] UCF3# |
87301-50020 |
— | ||
|
88501
|
88501
88501-50210
Evaporator Sub-Assy, Cooler, No.1
[08.2000 - 08.2001] UCF3# |
88501-50210 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-50211
Evaporator Sub-Assy, Cooler, No.1
[08.2000 - 08.2001] UCF3# |
88501-50211 |
— | ||
|
88501
|
88501
88501-50211
Evaporator Sub-Assy, Cooler, No.1
[08.2001 - 07.2003] UCF3# |
88501-50211 |
— | ||
|
88508
|
88508
88508-50060 Filter Sub-Assy, Clean Air[08.2000 - 07.2003] UCF3# |
88508-50060 |
US $88.82 |
||
|
88515
|
88515
88515-50160 Valve, Cooler Expansion[08.2000 - 07.2003] UCF3# |
88515-50160 |
US $136.86 |
||
| replacement | |||||
|
88515
|
88515
88515-28180 Valve, Cooler Expansion[08.2000 - 07.2003] UCF3# |
88515-28180 |
from US $119.20 |
||
|
88539
|
88539
88539-50060
Hose, Cooler Unit Drain, No.1
[08.2000 - 07.2003] UCF3# |
88539-50060 |
— | ||
|
88578B
|
88578B
88578-50190
Packing, Cooling Unit, No.1
[08.2000 - 07.2003] UCF3# |
88578-50190 |
— | ||
| replacement | |||||
|
88578B
|
88578B
88578-50160
Packing, Cooling Unit, No.1
[08.2000 - 07.2003] UCF3# |
88578-50160 |
— | ||
|
88578C
|
88578C
88578-50200
Packing, Cooling Unit, No.2
[08.2000 - 07.2003] UCF3# |
88578-50200 |
— | ||
|
88578V
|
88578V
88578-50220
Packing, Cooling Unit, No.3
[08.2000 - 07.2003] UCF3# |
88578-50220 |
— | ||
|
88608
|
88608
88608-50260
Harness Sub-Assy, Wiring Air Conditioner
[08.2000 - 07.2001] UCF3# |
88608-50260 |
— | ||
| replacement | |||||
|
88608
|
88608
88608-50261
Harness Sub-Assy, Wiring Air Conditioner
[08.2000 - 07.2001] UCF3# |
88608-50261 |
— | ||
|
88608
|
88608
88608-50261
Harness Sub-Assy, Wiring Air Conditioner
[07.2001 - 07.2003] UCF3# |
88608-50261 |
— | ||
|
88625
|
88625
88625-50160
Thermistor, Cooler, No.1
[08.2000 - 07.2001] UCF3# |
88625-50160 |
— | ||
|
88650E
|
88650E
88650-50350
Amplifier Assy, Air Conditioner, No.1
[08.2000 - 08.2002] UCF3# |
88650-50350 |
— | ||
|
88650E
|
88650E
88650-50403
Amplifier Assy, Air Conditioner, No.1
[08.2002 - 07.2003] UCF3# |
88650-50403 |
— | ||
|
88669B
|
88669B
88669-50060
Hose, Cooler Air
[08.2000 - 07.2003] UCF3# |
88669-50060 |
— | ||
|
88710A
|
88710A
88710-50720 Tube Assy, Air Conditioner[08.2000 - 07.2003] UCF3# |
88710-50720 |
US $131.04 |
||
|
88891S
|
88891S
88891-50070
Cover, Cooler, No.1
[08.2000 - 07.2003] UCF3# |
88891-50070 |
— | ||
|
88891Z
|
88891Z
88891-50060
Bracket, Cooler Thermistor
[08.2000 - 07.2003] UCF3# |
88891-50060 |
— | ||
|
88892N
|
88892N
88892-50080
Cover, Cooler, No.2
[08.2000 - 07.2003] UCF3# |
88892-50080 |
— | ||
|
88897U
|
88897U
88897-22100
Aspirator
[08.2000 - 07.2003] UCF3# |
88897-22100 |
— | ||
|
8712420020
|
8712420020
87124-20020 Clamp, Heater Control |
87124-20020 |
US $1.75 |
||
|
8712435040
|
8712435040
87124-35040 Clamp, Heater, No.3 |
87124-35040 |
from US $1.75 |
||
|
8712450020
|
8712450020
87124-50020
Clamp, Heater
|
87124-50020 |
— | ||
|
8712450030
|
8712450030
87124-50030
Clamp, Heater
|
87124-50030 |
— | ||
|
8712750010
|
8712750010
87127-50010
Packing, Heater Air Damper
|
87127-50010 |
— | ||
|
8719387101
|
8719387101
87193-87101
SCREW TAPPING
|
87193-87101 |
— | ||
|
8889250070
|
8889250070
88892-50070
Bracket, Cooler Evaporator Mounting
|
88892-50070 |
— | ||
|
8889250110
|
8889250110
88892-50110
Bracket, Cooler Evaporator Mounting
|
88892-50110 |
— | ||
|
8889930840
|
8889930840
88899-30840
Plate, Cover
|
88899-30840 |
— | ||
|
8889950120
|
8889950120
88899-50120
Cover, Evaporator
|
88899-50120 |
— | ||
|
9009900312
|
9009900312
90099-00312
New Genuine Part
|
90099-00312 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.82 |
||
|
9009904492
|
9009904492
90099-04492 BOLT |
90099-04492 |
US $2.06 |
||
|
9009904542
|
9009904542
90099-04542 Bolt(For Cooler Expansion Valve) |
90099-04542 |
from US $1.17 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
US $2.27 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.13 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $2.18 |
||
|
9011606102
|
9011606102
90116-06102 New Genuine Part |
90116-06102 |
US $2.48 |
||
|
9011906407
|
9011906407
90119-06407 New Genuine Part |
90119-06407 |
US $1.92 |
||
|
9014860005
|
9014860005
90148-60005 New Genuine Part |
90148-60005 |
US $1.46 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.28 |
||
|
9016850013
|
9016850013
90168-50013 SCREW |
90168-50013 |
US $2.72 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
|
9048026029
|
9048026029
90480-26029
Grommet (For Cooler Unit Drain Hose)
|
90480-26029 |
— | ||
|
9095001518
|
9095001518
90950-01518 PLUG |
90950-01518 |
from US $1.23 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.80 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9676119016
|
9676119016
96761-19016 RING |
96761-19016 |
from US $0.94 |
||
