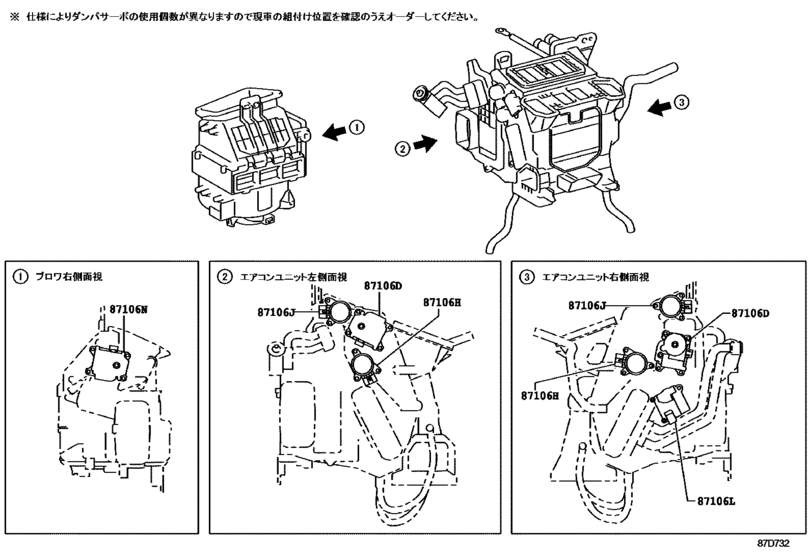

Heating & Air Conditioning - Cooler Unit ([08.2000 - 07.2003] ﾌﾛﾝﾄ ﾀﾞﾝﾊﾟｻｰﾎﾞ (0008-0307)) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- A
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87106D
|
87106D
87106-50290
Servo Sub-Assy, Damper, No.1
[08.2000 - 07.2003] UCF3# 右側 |
87106-50290 |
— | ||
|
87106D
|
87106D
87106-50300
Servo Sub-Assy, Damper, No.1
[08.2000 - 07.2003] UCF3# 左側 |
87106-50300 |
— | ||
|
87106H
|
87106H
87106-50160
Servo Sub-Assy, Damper(For Airmix)
[08.2000 - 07.2003] UCF3# 左側 |
87106-50160 |
— | ||
|
87106H
|
87106H
87106-50170
Servo Sub-Assy, Damper(For Airmix)
[08.2000 - 07.2003] UCF3# 右側 |
87106-50170 |
— | ||
|
87106J
|
87106J
87106-50160
Servo Sub-Assy, Damper(For Airmix)
[08.2000 - 07.2003] UCF3# 左側 |
87106-50160 |
— | ||
|
87106J
|
87106J
87106-50170
Servo Sub-Assy, Damper(For Airmix)
[08.2000 - 07.2003] UCF3# 右側 |
87106-50170 |
— | ||
|
87106L
|
87106L
87106-50330
Servo Sub-Assy, Damper
[08.2000 - 07.2003] UCF3# |
87106-50330 |
— | ||
|
87106N
|
87106N
87106-50350
Servo Sub-Assy, Damper(For Recirculation)
[08.2000 - 07.2003] UCF3# |
87106-50350 |
— |
