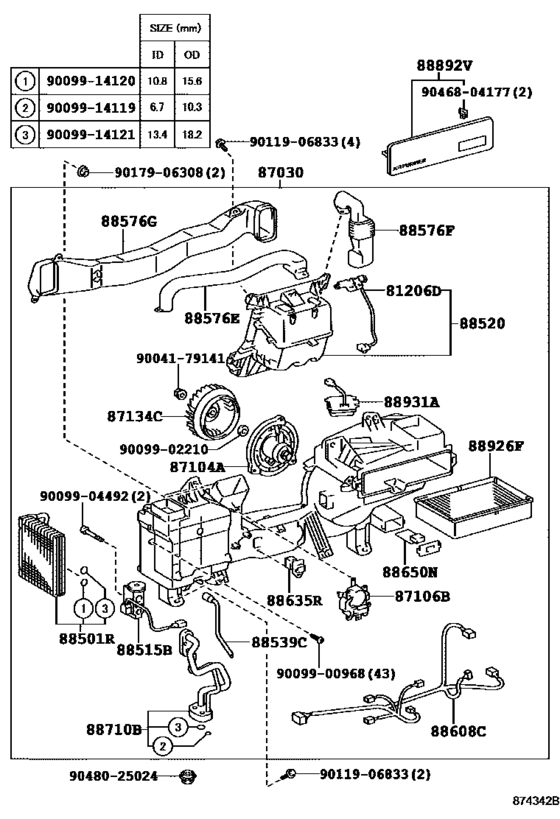

Heating & Air Conditioning - Cooler Unit ([08.2000 - 07.2003] ﾘﾔ (0008-0307)) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- A
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88650N
|
88650N
88650-50340
Amplifier Assy, Air Conditioner
[08.2000 - 07.2003] UCF3# |
88650-50340 |
— | ||
|
9004179141
|
9004179141
90041-79141
New Genuine Part
|
90041-79141 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.59 |
||
|
9009902210
|
9009902210
90099-02210 New Genuine Part |
90099-02210 |
US $0.87 |
||
|
9009904492
|
9009904492
90099-04492 BOLT |
90099-04492 |
US $2.06 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
US $2.27 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.59 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.79 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.94 |
||
|
9011906833
|
9011906833
90119-06833 New Genuine Part |
90119-06833 |
US $0.44 |
||
|
9017906308
|
9017906308
90179-06308 NUT |
90179-06308 |
from US $0.86 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.41 |
||
|
9048025024
|
9048025024
90480-25024
New Genuine Part
|
90480-25024 |
— | ||
