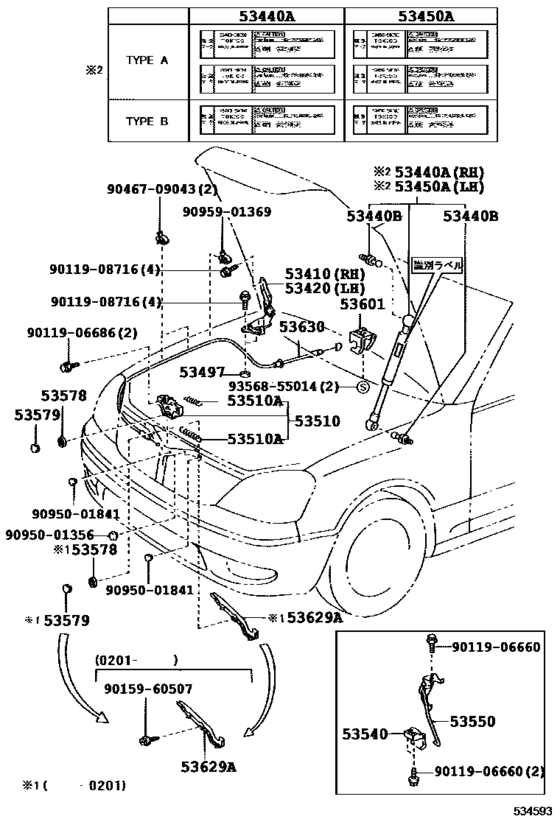

Hood Lock & Hinge ([08.2000 - ] (0008- )) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- A
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-50050 Hinge Assy, Hood, Rh[08.2000 - 07.2003] UCF3# |
53410-50050 |
US $34.80 |
||
|
53420
|
53420
53420-50050 Hinge Assy, Hood, Lh[08.2000 - 07.2003] UCF3# |
53420-50050 |
US $34.80 |
||
|
53440A
|
53440A
53440-59065 Support Assy, Hood, Rh[08.2000 - 07.2003] UCF3# ＴＹＰＥ Ａ：イラスト参照 |
53440-59065 |
US $144.14 |
||
| replacement | |||||
|
53440A
|
53440A
53440-59115 Support Assy, Hood, Rh[08.2000 - 07.2003] UCF3# ＴＹＰＥ Ａ：イラスト参照 |
53440-59115 |
from US $148.32 |
||
|
53440B
|
53440B
68961-20051 Bolt, Hood Support, No.1[08.2000 -] UCF3# |
68961-20051 |
from US $5.69 |
||
|
53450A
|
53450A
53450-59045 Support Assy, Hood, Lh[08.2000 - 07.2003] UCF3# ＴＹＰＥ Ａ：イラスト参照 |
53450-59045 |
US $144.14 |
||
| replacement | |||||
|
53450A
|
53450A
53450-59095 Support Assy, Hood, Lh[08.2000 - 07.2003] UCF3# ＴＹＰＥ Ａ：イラスト参照 |
53450-59095 |
from US $148.32 |
||
|
53497
|
53497
53497-12050
Pad, Hood Hinge, No.1
[08.2000 - 09.2000] UCF3# 厚さ＝１．０ |
53497-12050 |
— | ||
| replacements | |||||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[08.2000 - 09.2000] UCF3# 厚さ＝１．０ |
53497-42010 |
US $1.60 |
||
|
53497
|
53497
53497-12070 Pad, Hood Hinge, No.1[08.2000 - 09.2000] UCF3# 厚さ＝１．０ |
53497-12070 |
US $1.60 |
||
|
53497
|
53497
53497-20070 Pad, Hood Hinge, No.1[08.2000 - 09.2000] UCF3# 厚さ＝２．０ |
53497-20070 |
US $2.24 |
||
|
53497
|
53497
53497-50020 Pad, Hood Hinge, No.1[09.2000 - 07.2003] UCF3# 厚さ＝１．０ |
53497-50020 |
US $2.24 |
||
|
53497
|
53497
53497-50030 Pad, Hood Hinge, No.1[09.2000 - 07.2003] UCF3# 厚さ＝２．０ |
53497-50030 |
US $4.51 |
||
| replacement | |||||
|
53497
|
53497
53497-50020 Pad, Hood Hinge, No.1[09.2000 - 07.2003] UCF3# 厚さ＝２．０ |
53497-50020 |
US $2.24 |
||
|
53510
|
53510
53510-50090 Lock Assy, Hood[08.2000 - 07.2003] UCF3# |
53510-50090 |
US $65.87 |
||
|
53510A
|
53510A
90506-09050 Spring, Tension(For Hood Lock)[08.2000 - 07.2003] UCF3# 線径＝０．９，コイル巻数＝２０．５ |
90506-09050 |
from US $0.87 |
||
|
53510A
|
53510A
90506-18068 Spring, Tension(For Hood Lock)[08.2000 - 07.2003] UCF3# 線径＝１．８，コイル巻数＝１８ |
90506-18068 |
US $2.33 |
||
|
53540
|
53540
53540-30010 Lever Assy, Auxiliary Catch Release[08.2000 - 07.2003] UCF3# |
53540-30010 |
US $30.58 |
||
|
53550
|
53550
53550-50040 Hook Assy, Hood Auxiliary Catch[08.2000 - 07.2003] UCF3# |
53550-50040 |
US $38.58 |
||
|
53578
|
53578
53578-50010 Nut, Hood Lock[01.2002 - 07.2003] UCF3# |
53578-50010 |
from US $1.15 |
||
|
53579
|
53579
53579-50010 Cap, Hood Lock Nut[01.2002 - 07.2003] UCF3# |
53579-50010 |
from US $1.21 |
||
|
53601
|
53601
53601-20060-A1
Lever Sub-Assy, Hood Lock Control
[08.2000 - 07.2003] UCF3# IVORY,TRIM04 |
53601-20060-A1 |
— | ||
| replacement | |||||
|
53601
|
53601
53601-20060-C0 Lever Sub-Assy, Hood Lock Control (Black)[08.2000 - 07.2003] UCF3# IVORY,TRIM04 |
53601-20060-C0 |
from US $39.82 |
||
|
53601
|
53601
53601-20060-A2
Lever Sub-Assy, Hood Lock Control
[08.2000 - 07.2003] UCF3# ECRU,TRIM03 |
53601-20060-A2 |
— | ||
|
53601
|
53601
53601-20060-B4 Lever Sub-Assy, Hood Lock Control[08.2000 - 07.2003] UCF3# MD.CHARCOAL,TRIM1# |
53601-20060-B4 |
US $35.24 |
||
|
53601
|
53601
53601-20060-C0 Lever Sub-Assy, Hood Lock Control (Black)[08.2000 - 07.2003] UCF3# BLACK,TRIM2# |
53601-20060-C0 |
from US $39.82 |
||
|
53629A
|
53629A
53629-50020 Cover, Hood Lock Control Cable[08.2000 - 01.2002] UCF3# |
53629-50020 |
US $23.88 |
||
| replacements | |||||
|
53629A
|
53629A
53629-50021 Cover, Hood Lock Control Cable[08.2000 - 01.2002] UCF3# |
53629-50021 |
US $23.88 |
||
|
53629A
|
53629A
90159-60507 SCREW WWASHER[08.2000 - 01.2002] UCF3# |
90159-60507 |
from US $0.92 |
||
|
53629A
|
53629A
53629-50021 Cover, Hood Lock Control Cable[01.2002 - 07.2003] UCF3# |
53629-50021 |
US $23.88 |
||
|
53630
|
53630
53630-50060 Cable Assy, Hood Lock Control[08.2000 - 07.2003] UCF3# |
53630-50060 |
from US $24.62 |
||
|
9011906660
|
9011906660
90119-06660 BOLT |
90119-06660 |
US $1.92 |
||
|
9011906686
|
9011906686
90119-06686 BOLT WWASHER |
90119-06686 |
US $0.96 |
||
|
9011908716
|
9011908716
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.82 |
||
|
9015960507
|
9015960507
90159-60507 SCREW WWASHER |
90159-60507 |
from US $0.92 |
||
|
9046709043
|
9046709043
90467-09043 Clamp, Hood Lock Control Cable |
90467-09043 |
from US $1.56 |
||
|
9095001356
|
9095001356
90950-01356
New Genuine Part
|
90950-01356 |
— | ||
| replacement | |||||
|
9095001356
|
9095001356
90950-01976 New Genuine Part |
90950-01976 |
US $1.60 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $0.92 |
||
|
9095901369
|
9095901369
90959-01369 Clamp, Hood Lock Control Cable |
90959-01369 |
from US $1.19 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
