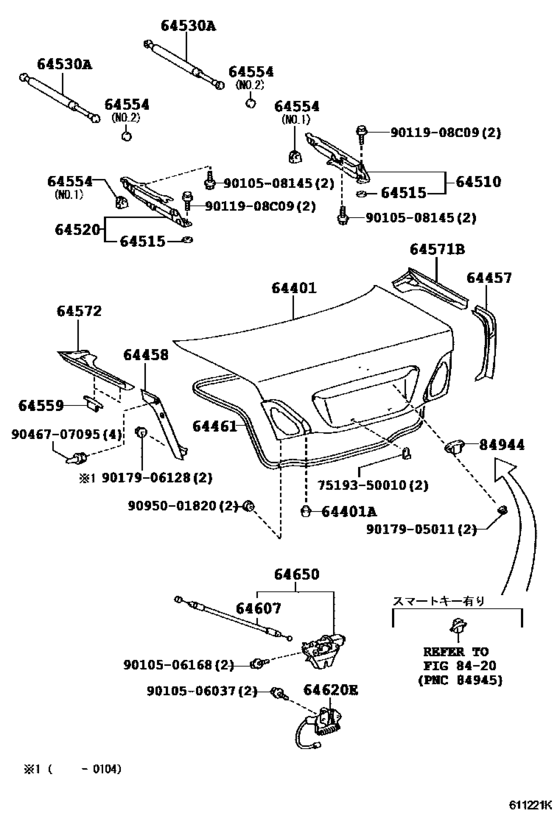

Luggage Compartment Door & Lock ([08.2000 - ] (0008- )) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- A
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64401
|
64401
64401-50150 Panel Sub-Assy, Luggage Compartment Door[08.2000 - 07.2003] UCF3# |
64401-50150 |
US $965.33 |
||
|
64401A
|
64401A
90541-10027 Cushion(For Center Piller)[08.2000 - 07.2003] UCF3# |
90541-10027 |
US $3.20 |
||
|
64457
|
64457
64457-50030 Cover, Luggage Door Stopper Cushion, Rh[08.2000 - 07.2003] UCF3# |
64457-50030 |
US $42.37 |
||
|
64458
|
64458
64458-50030 Cover, Luggage Door Stopper Cushion, Lh[08.2000 - 07.2003] UCF3# |
64458-50030 |
US $42.37 |
||
|
64461
|
64461
64461-50030 Weatherstrip, Luggage Compartment Door[08.2000 - 07.2003] UCF3# |
64461-50030 |
US $91.73 |
||
| replacement | |||||
|
64461
|
64461
64461-50032 Weatherstrip, Luggage Compartment Door[08.2000 - 07.2003] UCF3# |
64461-50032 |
US $103.60 |
||
|
64510
|
64510
64510-50030 Hinge Assy, Luggage Compartment Door, Rh[08.2000 - 07.2003] UCF3# |
64510-50030 |
US $49.86 |
||
|
64515
|
64515
64515-50020 Pad, Luggage Door Hinge[08.2000 - 07.2003] UCF3# 厚さ＝２．０ |
64515-50020 |
US $3.93 |
||
|
64515
|
64515
64515-50030 Pad, Luggage Door Hinge[08.2000 - 07.2003] UCF3# 厚さ＝１．０ |
64515-50030 |
US $5.76 |
||
|
64515
|
64515
64515-50040 Pad, Luggage Door Hinge[08.2000 - 07.2003] UCF3# 厚さ＝３．０ |
64515-50040 |
US $4.95 |
||
| replacement | |||||
|
64515
|
64515
64515-50030 Pad, Luggage Door Hinge[08.2000 - 07.2003] UCF3# 厚さ＝３．０ |
64515-50030 |
US $5.76 |
||
|
64520
|
64520
64520-50030 Hinge Assy, Luggage Compartment Door, Lh[08.2000 - 07.2003] UCF3# |
64520-50030 |
US $49.86 |
||
|
64530A
|
64530A
64530-50030
Support Assy, Luggage Compartment Door
[08.2000 - 02.2003] UCF3# |
64530-50030 |
— | ||
| replacement | |||||
|
64530A
|
64530A
64530-50031 Support Assy, Luggage Compartment Door[08.2000 - 02.2003] UCF3# |
64530-50031 |
from US $148 |
||
|
64530A
|
64530A
64530-50031 Support Assy, Luggage Compartment Door[02.2003 - 07.2003] UCF3# |
64530-50031 |
from US $148 |
||
|
64554
|
64554
64554-50020 Stopper, Luggage Door Balancer[08.2000 - 07.2003] UCF3# NO.1:ｲﾗｽﾄｻﾝｼﾖｳ |
64554-50020 |
US $2.56 |
||
|
64554
|
64554
64554-50030 Stopper, Luggage Door Balancer[08.2000 - 07.2003] UCF3# NO.2:ｲﾗｽﾄｻﾝｼﾖｳ |
64554-50030 |
US $1.65 |
||
|
64559
|
64559
64559-50040 Pin, Luggage Door Hinge[08.2000 - 07.2003] UCF3# |
64559-50040 |
US $4.80 |
||
|
64571B
|
64571B
64571-50020 Cover, Luggage Compartment Door Hinge, Rh[08.2000 - 07.2003] UCF3# |
64571-50020 |
US $72.16 |
||
|
64572
|
64572
64572-50010 Cover, Luggage Compartment Door Hinge, Lh[08.2000 - 07.2003] UCF3# |
64572-50010 |
US $68 |
||
|
64607
|
64607
64607-50010
Cable Sub-Assy, Luggage Door Lock Control
[08.2000 - 07.2003] UCF3# |
64607-50010 |
— | ||
|
64620E
|
64620E
64620-50020 Striker Assy, Luggage Compartment Door[08.2000 - 07.2003] UCF3# |
64620-50020 |
from US $33.87 |
||
|
64650
|
64650
64650-50010 Closer Assy, Luggage Door[08.2000 - 07.2003] UCF3# |
64650-50010 |
US $586.60 |
||
|
84944
|
84944
84944-50010 Cover, Luggage Electrical Key Switch[08.2000 - 07.2003] UCF3# |
84944-50010 |
US $7.68 |
||
|
9011908C09
|
9011908C09
90119-08C09 BOLT WWASHER |
90119-08C09 |
US $2.08 |
||
|
7519350010
|
7519350010
75193-50010 Holder, Rear License Plate |
75193-50010 |
US $5.92 |
||
|
9010506037
|
9010506037
90105-06037 New Genuine Part |
90105-06037 |
US $1.02 |
||
|
9010506168
|
9010506168
90105-06168 BOLT WASHER BASED |
90105-06168 |
from US $0.76 |
||
|
9010508145
|
9010508145
90105-08145 BOLT |
90105-08145 |
US $1.92 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.12 |
||
|
9046707095
|
9046707095
90467-07095 CLIP |
90467-07095 |
US $2.56 |
||
|
9095001820
|
9095001820
90950-01820 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01820 |
US $1.05 |
||
