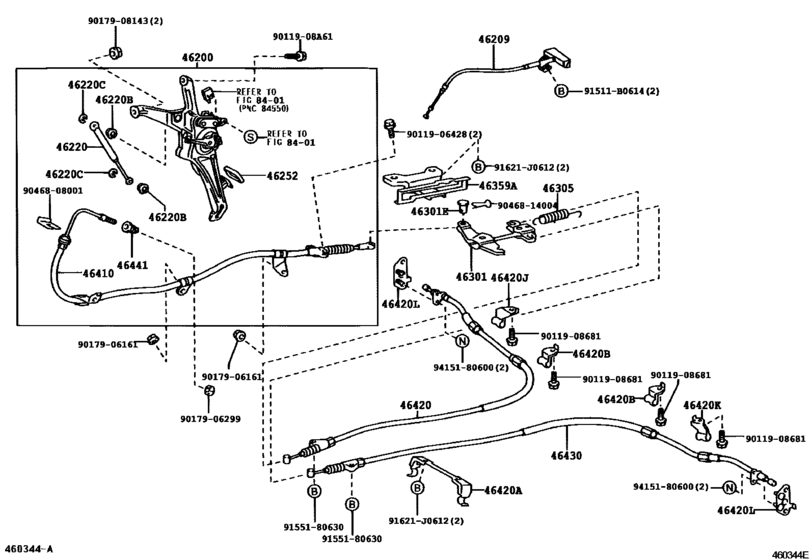

Parking Brake & Cable ([08.2000 - ] (0008- )) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- A
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46200
|
46200
46200-50080 Pedal Assy, Parking Brake Control[08.2000 - 03.2003] UCF3# |
46200-50080 |
US $199.47 |
||
|
46200
|
46200
46200-50100 Pedal Assy, Parking Brake Control[03.2003 - 07.2003] UCF3# |
46200-50100 |
US $199.47 |
||
|
46209
|
46209
46209-50050-A0 Cable Sub-Assy, Parking Brake Release[08.2000 - 07.2003] UCF3# IVORY,TRIM04 |
46209-50050-A0 |
US $46.01 |
||
|
46209
|
46209
46209-50050-A1 Cable Sub-Assy, Parking Brake Release[08.2000 - 07.2003] UCF3# ECRU,TRIM03 |
46209-50050-A1 |
US $46.01 |
||
|
46209
|
46209
46209-50050-B0 Cable Sub-Assy, Parking Brake Release[08.2000 - 07.2003] UCF3# MD.CHARCOAL,TRIM1# |
46209-50050-B0 |
US $46.01 |
||
|
46209
|
46209
46209-50050-C0 Cable Sub-Assy, Parking Brake Release[08.2000 - 07.2003] UCF3# BLACK,TRIM2# |
46209-50050-C0 |
US $46.01 |
||
|
46220
|
46220
46220-22010 Absorber Assy, Parking Brake Pedal Return[08.2000 - 07.2003] UCF3# |
46220-22010 |
US $60.63 |
||
|
46220B
|
46220B
90386-08059 Bush(For Parking Brake Pedal Return Absorber)[08.2000 - 07.2003] UCF3# |
90386-08059 |
US $0.87 |
||
|
46220C
|
46220C
96160-00700 Ring, E(For Chain Tensioner Slipper)[08.2000 - 07.2003] UCF3# |
96160-00700 |
US $3.20 |
||
|
46252
|
46252
46252-20010 Pad, Parking Pedal[08.2000 - 07.2003] UCF3# |
46252-20010 |
from US $6.49 |
||
|
46301
|
46301
46301-50030 Lever Sub-Assy, Parking Brake Intermediate[08.2000 - 07.2003] UCF3# |
46301-50030 |
US $25.19 |
||
|
46301E
|
46301E
90240-08059 Pin, W/hole(For Intermediate Lever)[08.2000 - 07.2003] UCF3# |
90240-08059 |
from US $2.15 |
||
|
46305
|
46305
46305-50020 Spring, Parking Brake Return W/damper[08.2000 - 07.2003] UCF3# |
46305-50020 |
US $3.84 |
||
|
46359A
|
46359A
46359-50030 Bracket, Parking Brake Intermediate Lever Support[08.2000 - 07.2003] UCF3# |
46359-50030 |
US $8.44 |
||
|
46410
|
46410
46410-50070 Cable Assy, Parking Brake, No.1[08.2000 - 03.2003] UCF3# |
46410-50070 |
US $54.02 |
||
|
46410
|
46410
46410-50090 Cable Assy, Parking Brake, No.1[03.2003 - 07.2003] UCF3# |
46410-50090 |
US $53.87 |
||
|
46420
|
46420
46420-50040
Cable Assy, Parking Brake, No.2
[08.2000 - 04.2002] UCF3# |
46420-50040 |
— | ||
| replacement | |||||
|
46420
|
46420
46420-50041 Cable Assy, Parking Brake, No.2[08.2000 - 04.2002] UCF3# |
46420-50041 |
US $72.16 |
||
|
46420
|
46420
46420-50041 Cable Assy, Parking Brake, No.2[04.2002 - 07.2003] UCF3# |
46420-50041 |
US $72.16 |
||
|
46420A
|
46420A
46451-50010 Clamp, No.1(For Parking Brake Cable)[08.2000 - 07.2003] UCF3# |
46451-50010 |
US $6.12 |
||
|
46420B
|
46420B
46451-50020 Clamp, No.2(For Parking Brake Cable)[08.2000 - 07.2003] UCF3# |
46451-50020 |
US $5.68 |
||
|
46420J
|
46420J
46451-50030 Clamp, No.3(For Parking Brake Cable)[08.2000 - 07.2003] UCF3# |
46451-50030 |
US $6.99 |
||
|
46420K
|
46420K
46451-50040 Clamp, No.4(For Parking Brake Cable)[08.2000 - 07.2003] UCF3# |
46451-50040 |
US $6.99 |
||
|
46420L
|
46420L
46451-50050 Clamp, No.5(For Parking Brake Cable)[08.2000 - 07.2003] UCF3# |
46451-50050 |
US $7.52 |
||
|
46430
|
46430
46420-50040
Cable Assy, Parking Brake, No.2
[08.2000 - 04.2002] UCF3# |
46420-50040 |
— | ||
| replacement | |||||
|
46430
|
46430
46420-50041 Cable Assy, Parking Brake, No.2[08.2000 - 04.2002] UCF3# |
46420-50041 |
US $72.16 |
||
|
46430
|
46430
46420-50041 Cable Assy, Parking Brake, No.2[04.2002 - 07.2003] UCF3# |
46420-50041 |
US $72.16 |
||
|
46441
|
46441
46441-50010 Nut, Wire Adjusting, No.1[08.2000 - 07.2003] UCF3# |
46441-50010 |
US $3.49 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9011908A61
|
9011908A61
90119-08A61 New Genuine Part |
90119-08A61 |
US $1.75 |
||
|
9011906428
|
9011906428
90119-06428 New Genuine Part |
90119-06428 |
US $1.28 |
||
|
9011908681
|
9011908681
90119-08681 BOLT W-WASHER |
90119-08681 |
from US $2.56 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.84 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017908143
|
9017908143
90179-08143 NUT |
90179-08143 |
US $1.76 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.36 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.70 |
||
|
9155180630
|
9155180630
91551-80630 Bolt(For Cylinder Head Cover) |
91551-80630 |
from US $0.70 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
||
