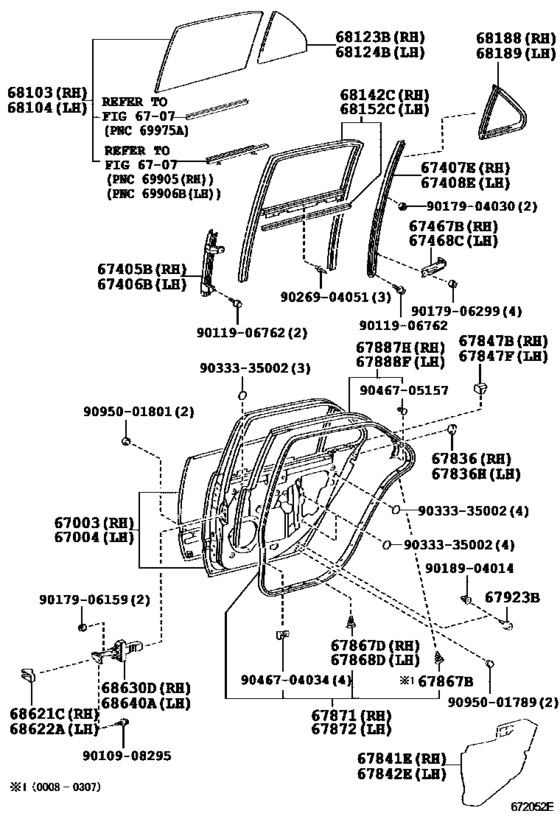

Rear Door Panel & Glass ([08.2000 - ] ﾄﾞｱﾊﾟﾈﾙ (0008- )) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- A
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
67003-50040 Panel Sub-Assy, Rear Door, Rh[08.2000 - 07.2003] UCF3# |
67003-50040 |
US $1,017.74 |
||
|
67004
|
67004
67004-50040 Panel Sub-Assy, Rear Door, Lh[08.2000 - 07.2003] UCF3# |
67004-50040 |
US $1,017.74 |
||
|
67405B
|
67405B
67405-50010 Guide Sub-Assy, Rear Door Window, Front Rh[08.2000 - 07.2003] UCF3# |
67405-50010 |
US $34.36 |
||
|
67406B
|
67406B
67406-50010 Guide Sub-Assy, Rear Door Window, Front Lh[08.2000 - 07.2003] UCF3# |
67406-50010 |
US $34.36 |
||
|
67407E
|
67407E
67407-50020 Bar Sub-Assy, Rear Door Window Division, Rh[08.2000 - 07.2003] UCF3# |
67407-50020 |
US $59.84 |
||
|
67408E
|
67408E
67408-50020 Bar Sub-Assy, Rear Door Window Division, Lh[08.2000 - 07.2003] UCF3# |
67408-50020 |
US $59.84 |
||
|
67467B
|
67467B
67467-50030 Bracket, Quarter Rear Guide, Lower Rh[08.2000 - 07.2003] UCF3# |
67467-50030 |
US $16.02 |
||
|
67468C
|
67468C
67468-50020 Bracket, Rear Door Division Bar, Lwr Lh[08.2000 - 07.2003] UCF3# |
67468-50020 |
US $16.02 |
||
|
67836
|
67836
67836-50020 Cover, Rear Door Lock Child Protection, Rh[08.2000 - 07.2003] UCF3# |
67836-50020 |
US $4.80 |
||
|
67836H
|
67836H
67836-50020 Cover, Rear Door Lock Child Protection, Rh[08.2000 - 07.2003] UCF3# |
67836-50020 |
US $4.80 |
||
|
67841E
|
67841E
67841-50040 Cover, Rear Door Service Hole, Rh[08.2000 - 07.2003] UCF3# |
67841-50040 |
US $13.54 |
||
|
67842E
|
67842E
67842-50020 Cover, Rear Door Service Hole, Lh[08.2000 - 07.2003] UCF3# |
67842-50020 |
US $13.54 |
||
|
67847B
|
67847B
67847-30010 Seal, Rear Door Vent, Rh No.1[08.2000 - 07.2003] UCF3# |
67847-30010 |
US $4.82 |
||
|
67847F
|
67847F
67847-30010 Seal, Rear Door Vent, Rh No.1[08.2000 - 07.2003] UCF3# |
67847-30010 |
US $4.82 |
||
|
67867B
|
67867B
67867-52010 Retainer(For Front Door Weatherstrip)[08.2000 - 07.2003] UCF3# |
67867-52010 |
US $1.60 |
||
|
67867D
|
67867D
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.2000 - 07.2003] UCF3# |
67867-12150 |
from US $1.60 |
||
|
67868D
|
67868D
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.2000 - 07.2003] UCF3# |
67867-12150 |
from US $1.60 |
||
|
67871
|
67871
67871-50030 Weatherstrip, Rear Door, Rh[08.2000 - 07.2003] UCF3# |
67871-50030 |
from US $109.52 |
||
|
67872
|
67872
67872-50030 Weatherstrip, Rear Door, Lh[08.2000 - 07.2003] UCF3# |
67872-50030 |
from US $109.52 |
||
|
67887H
|
67887H
67887-50030 Weatherstrip, Rear Door, No.2 Rh[08.2000 - 07.2003] UCF3# |
67887-50030 |
from US $93.24 |
||
|
67888F
|
67888F
67888-50030 Weatherstrip, Rear Door, No.2 Lh[08.2000 - 07.2003] UCF3# |
67888-50030 |
from US $93.24 |
||
|
67923B
|
67923B
67923-30080 Cushion, Front Door Stiffener, No.1[08.2000 - 07.2003] UCF3# |
67923-30080 |
US $4.95 |
||
|
68103
|
68103
68103-50130
Glass Sub-Assy, Rear Door, Rh
[08.2000 - 07.2003] UCF3# ＊ＵＶＣＴＴ，厚さ＝５．０ダークグリーン |
68103-50130 |
— | ||
|
68103
|
68103
68103-50180 Glass Sub-Assy, Rear Door, Rh[08.2000 - 07.2003] UCF3# ＊ＵＶＣＴＴ，厚さ＝５．０，グリーン |
68103-50180 |
US $297.02 |
||
|
68104
|
68104
68104-50130
Glass Sub-Assy, Rear Door, Lh
[08.2000 - 07.2003] UCF3# ＊ＵＶＣＴＴ，厚さ＝５．０ダークグリーン |
68104-50130 |
— | ||
|
68104
|
68104
68104-50180 Glass Sub-Assy, Rear Door, Lh[08.2000 - 07.2003] UCF3# ＊ＵＶＣＴＴ，厚さ＝５．０，グリーン |
68104-50180 |
US $297.02 |
||
|
68123B
|
68123B
68123-50010 Glass, Rear Door Quarter Window, Rh[08.2000 - 07.2003] UCF3# ＊ＵＶＣＴＴ，厚さ＝５．０，Ｄ グリーン |
68123-50010 |
US $160.16 |
||
|
68123B
|
68123B
68123-50040 Glass, Rear Door Quarter Window, Rh[08.2000 - 07.2003] UCF3# ＊ＵＶＣＴＴ，厚さ＝５．０，グリーン |
68123-50040 |
US $151.42 |
||
|
68124B
|
68124B
68124-50010 Glass, Rear Door Quarter Window, Lh[08.2000 - 07.2003] UCF3# ＊ＵＶＣＴＴ，厚さ＝５．０ダークグリーン |
68124-50010 |
US $157.25 |
||
|
68124B
|
68124B
68124-50040 Glass, Rear Door Quarter Window, Lh[08.2000 - 07.2003] UCF3# ＊ＵＶＣＴＴ，厚さ＝５．０，グリーン |
68124-50040 |
US $151.42 |
||
|
68142C
|
68142C
68142-50010 Run, Rear Door Glass, Rh[08.2000 - 09.2001] UCF3# |
68142-50010 |
US $80.08 |
||
| replacement | |||||
|
68142C
|
68142C
68142-50013 Run, Rear Door Glass, Rh[08.2000 - 09.2001] UCF3# |
68142-50013 |
from US $90.28 |
||
|
68142C
|
68142C
68142-50011 Run, Rear Door Glass, Rh[09.2001 - 01.2003] UCF3# |
68142-50011 |
US $80.08 |
||
| replacement | |||||
|
68142C
|
68142C
68142-50013 Run, Rear Door Glass, Rh[09.2001 - 01.2003] UCF3# |
68142-50013 |
from US $90.28 |
||
|
68142C
|
68142C
68142-50012 Run, Rear Door Glass, Rh[01.2003 - 07.2003] UCF3# |
68142-50012 |
US $82.99 |
||
| replacement | |||||
|
68142C
|
68142C
68142-50013 Run, Rear Door Glass, Rh[01.2003 - 07.2003] UCF3# |
68142-50013 |
from US $90.28 |
||
|
68152C
|
68152C
68152-50010 Run, Rear Door Glass, Lh[08.2000 - 09.2001] UCF3# |
68152-50010 |
US $80.08 |
||
| replacement | |||||
|
68152C
|
68152C
68152-50013 Run, Rear Door Glass, Lh[08.2000 - 09.2001] UCF3# |
68152-50013 |
from US $90.28 |
||
|
68152C
|
68152C
68152-50011 Run, Rear Door Glass, Lh[09.2001 - 01.2003] UCF3# |
68152-50011 |
US $80.08 |
||
| replacement | |||||
|
68152C
|
68152C
68152-50013 Run, Rear Door Glass, Lh[09.2001 - 01.2003] UCF3# |
68152-50013 |
from US $90.28 |
||
|
68152C
|
68152C
68152-50012 Run, Rear Door Glass, Lh[01.2003 - 07.2003] UCF3# |
68152-50012 |
US $82.99 |
||
| replacement | |||||
|
68152C
|
68152C
68152-50013 Run, Rear Door Glass, Lh[01.2003 - 07.2003] UCF3# |
68152-50013 |
from US $90.28 |
||
|
68188
|
68188
68188-50010 Weatherstrip, Rear Door Quarter Window, Rh[08.2000 - 07.2003] UCF3# |
68188-50010 |
US $36.17 |
||
|
68189
|
68189
68189-50010 Weatherstrip, Rear Door Quarter Window, Lh[08.2000 - 07.2003] UCF3# |
68189-50010 |
US $36.17 |
||
|
68621C
|
68621C
68621-33010 Cover, Front Door Check, Rh[08.2000 - 07.2003] UCF3# |
68621-33010 |
US $7.36 |
||
|
68622A
|
68622A
68622-33010 Cover, Front Door Check, Lh[08.2000 - 07.2003] UCF3# |
68622-33010 |
US $7.36 |
||
|
68630D
|
68630D
68630-50030 Check Assy, Rear Door, Rh[08.2000 - 07.2003] UCF3# |
68630-50030 |
US $60.13 |
||
|
68640A
|
68640A
68640-50030 Check Assy, Rear Door, Lh[08.2000 - 07.2003] UCF3# |
68640-50030 |
US $60.13 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.82 |
||
|
9011906762
|
9011906762
90119-06762 BOLT WWASHER |
90119-06762 |
US $1.12 |
||
|
9017904030
|
9017904030
90179-04030 Nut, Connecting(For Glow Plug) |
90179-04030 |
US $0.96 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $1.03 |
||
|
9026904051
|
9026904051
90269-04051 RIVET |
90269-04051 |
from US $0.59 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.28 |
||
|
9046704034
|
9046704034
90467-04034 Clip |
90467-04034 |
US $0.96 |
||
|
9046705157
|
9046705157
90467-05157 CLIP |
90467-05157 |
US $1.76 |
||
|
9095001789
|
9095001789
90950-01789 PLUG HOLE |
90950-01789 |
from US $2.07 |
||
|
9095001801
|
9095001801
90950-01801 PLUG HOLE |
90950-01801 |
US $3.04 |
||
