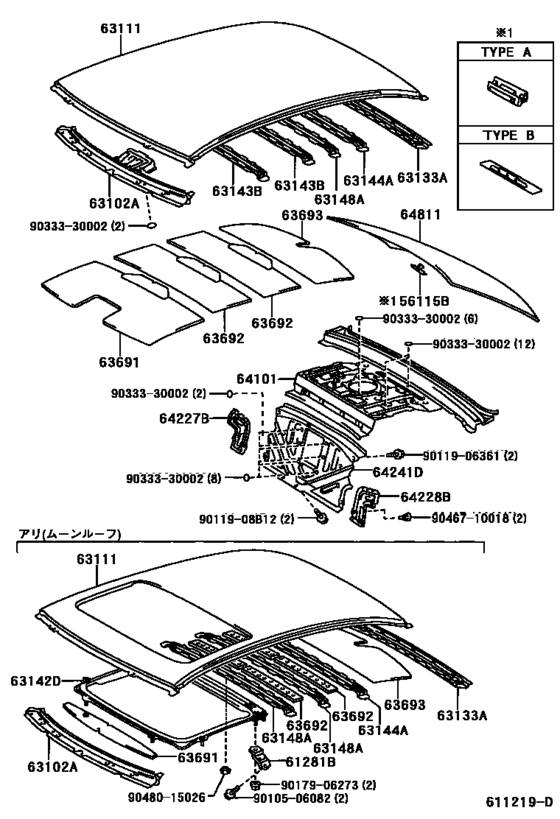

Roof Panel & Back Window Glass ([08.2000 - 07.2003] (0008-0307)) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- A
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56115B
|
56115B
56115-30100 Stopper, Windshield Glass, No.1[08.2000 - 07.2003] UCF3# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
56115-30100 |
from US $1.70 |
||
|
56115B
|
56115B
56116-22050 Stopper, Windshield Glass, No.1[08.2000 - 07.2003] UCF3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
56116-22050 |
from US $1.38 |
||
|
61281B
|
61281B
61281-50050 Bracket, Sliding Roof Housing Side Mounting, No.1[08.2000 - 07.2003] UCF3# |
61281-50050 |
US $4.95 |
||
|
63102A
|
63102A
63102-50900 Panel Sub-Assy, Windshield Header[08.2000 - 07.2003] UCF3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63102-50900 |
US $96.10 |
||
|
63102A
|
63102A
63102-50901
Panel Sub-Assy, Windshield Header
[08.2000 - 07.2003] UCF3# |
63102-50901 |
— | ||
|
63111
|
63111
63111-50050 Panel, Roof[08.2000 - 07.2003] UCF3# |
63111-50050 |
US $697.54 |
||
|
63111
|
63111
63111-50060 Panel, Roof[08.2000 - 07.2003] UCF3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63111-50060 |
US $698.88 |
||
|
63133A
|
63133A
63133-50030 Frame, Back Window, Upper[08.2000 - 07.2003] UCF3# |
63133-50030 |
US $69.74 |
||
|
63142D
|
63142D
63142-50030 Reinforcement Sub-Assy, Roof Panel, Rear[08.2000 - 07.2003] UCF3# |
63142-50030 |
US $160.16 |
||
|
63143B
|
63143B
63143-50030 Reinforcement, Roof Panel, No.3[08.2000 - 07.2003] UCF3# |
63143-50030 |
US $30.58 |
||
|
63144A
|
63144A
63144-50020 Reinforcement, Roof Panel, No.4[08.2000 - 07.2003] UCF3# |
63144-50020 |
US $30.58 |
||
|
63148A
|
63148A
63148-50030 Reinforcement, Roof Panel, No.7[08.2000 - 07.2003] UCF3# |
63148-50030 |
US $43.39 |
||
|
63691
|
63691
63691-50050 Pad, Roof Silencer, No.21[08.2000 - 08.2002] UCF3# |
63691-50050 |
US $96.10 |
||
| replacement | |||||
|
63691
|
63691
63691-50070 Pad, Roof Silencer, No.21[08.2000 - 08.2002] UCF3# |
63691-50070 |
US $96.10 |
||
|
63691
|
63691
63691-50060 Pad, Roof Silencer, No.21[08.2000 - 08.2002] UCF3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63691-50060 |
US $19.95 |
||
| replacement | |||||
|
63691
|
63691
63691-50080 Pad, Roof Silencer, No.21[08.2000 - 08.2002] UCF3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63691-50080 |
US $19.95 |
||
|
63691
|
63691
63691-50070 Pad, Roof Silencer, No.21[08.2002 - 07.2003] UCF3# |
63691-50070 |
US $96.10 |
||
|
63691
|
63691
63691-50080 Pad, Roof Silencer, No.21[08.2002 - 07.2003] UCF3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63691-50080 |
US $19.95 |
||
|
63692
|
63692
63692-50040 Pad, Roof Silencer, No.22[08.2000 - 07.2003] UCF3# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63692-50040 |
US $12.08 |
||
|
63692
|
63692
63692-50050 Pad, Roof Silencer, No.22[08.2000 - 08.2002] UCF3# |
63692-50050 |
US $77.17 |
||
| replacement | |||||
|
63692
|
63692
63692-50060 Pad, Roof Silencer, No.22[08.2000 - 08.2002] UCF3# |
63692-50060 |
US $77.17 |
||
|
63692
|
63692
63692-50060 Pad, Roof Silencer, No.22[08.2002 - 07.2003] UCF3# |
63692-50060 |
US $77.17 |
||
|
63693
|
63693
63693-50030 Pad, Roof Silencer, No.23[08.2000 - 08.2002] UCF3# |
63693-50030 |
US $64.06 |
||
| replacement | |||||
|
63693
|
63693
63693-50040 Pad, Roof Silencer, No.23[08.2000 - 08.2002] UCF3# |
63693-50040 |
US $64.21 |
||
|
63693
|
63693
63693-50040 Pad, Roof Silencer, No.23[08.2002 - 07.2003] UCF3# |
63693-50040 |
US $64.21 |
||
|
64101
|
64101
64101-50180 Panel Sub-Assy, Upper Back[08.2000 - 07.2001] UCF3# |
64101-50180 |
US $385.84 |
||
| replacement | |||||
|
64101
|
64101
64101-50220 Panel Sub-Assy, Upper Back[08.2000 - 07.2001] UCF3# |
64101-50220 |
US $387.30 |
||
|
64227B
|
64227B
64227-50030 Extension, Center Floor To Blace, No.1[08.2000 - 07.2003] UCF3# |
64227-50030 |
US $19.51 |
||
|
64228B
|
64228B
64228-50030 Extension, Center Floor To Brace, No.2[08.2000 - 07.2003] UCF3# |
64228-50030 |
US $19.51 |
||
|
64241D
|
64241D
64206-50030 Panel, Room Partition[08.2000 - 07.2003] UCF3# |
64206-50030 |
US $133.95 |
||
|
64811
|
64811
64810-50300 Glass, Back Window[08.2000 - 01.2003] UCF3# ＊ＵＶＣＥＨＴ，ダークグリーン |
64810-50300 |
US $1,186.64 |
||
|
64811
|
64811
64810-50310 Glass, Back Window[08.2000 - 01.2003] UCF3# ＊ＵＶＣＥＨＴ，グリーン |
64810-50310 |
US $1,128.40 |
||
|
64811
|
64811
64810-50340
Glass, Back Window
[01.2003 - 07.2003] UCF3# ＊ＵＶＣＥＨＴ，ダークグリーン |
64810-50340 |
— | ||
|
64811
|
64811
64810-50350 Glass, Back Window[01.2003 - 07.2003] UCF3# ＊ＵＶＣＥＨＴ，グリーン |
64810-50350 |
US $1,128.40 |
||
|
9011908B12
|
9011908B12
90119-08B12 New Genuine Part |
90119-08B12 |
US $0.73 |
||
|
9010506082
|
9010506082
90105-06082 BOLT |
90105-06082 |
US $1.68 |
||
|
9011906361
|
9011906361
90119-06361 BOLT WWASHER |
90119-06361 |
US $1.28 |
||
|
9017906273
|
9017906273
90179-06273 New Genuine Part |
90179-06273 |
US $1.60 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9046710018
|
9046710018
90467-10018 Clip, Radiator Support To Frame |
90467-10018 |
from US $3.68 |
||
|
9048015026
|
9048015026
90480-15026 Stopper, Sliding Roof Panel |
90480-15026 |
US $1.46 |
||
