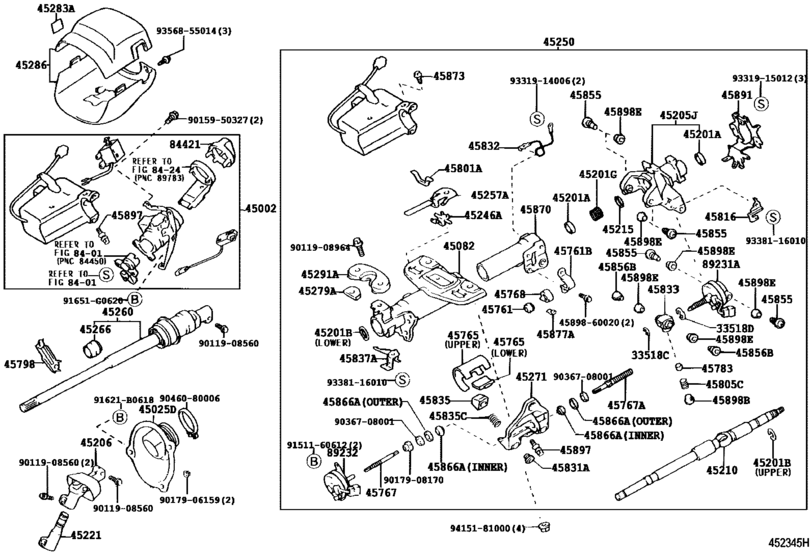

Steering Column & Shaft ([08.2000 - 07.2003] ｱﾘ(ｽﾏ-ﾄｷ- ｼｽﾃﾑ) (0008-0307)) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- A
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33518C
|
33518C
90523-06019 Ring, E (For Upper Control Shaft Piece Bush)[08.2000 - 07.2003] UCF3# |
90523-06019 |
US $2.75 |
||
|
33518D
|
33518D
90523-08001 E Ring (For Tilt Motor Shaft, Lower)[08.2000 - 07.2003] UCF3# |
90523-08001 |
from US $1.22 |
||
|
45025D
|
45025D
45025-50050 Cover Sub-Assy, Steering Column Hole, No.1[08.2000 - 07.2003] UCF3# |
45025-50050 |
US $26.21 |
||
|
45082
|
45082
45082-50100 Bracket Sub-Assy, Break Away W/capsule[08.2000 - 07.2003] UCF3# |
45082-50100 |
US $103.38 |
||
|
45201A
|
45201A
90363-18005 Bearing(For Steering Main Shaft)[08.2000 - 07.2003] UCF3# |
90363-18005 |
from US $5.38 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[08.2000 - 07.2003] UCF3# 厚さ＝１．２０,上側 |
90520-17042 |
from US $0.80 |
||
|
45201B
|
45201B
90905-20003 Ring, Shaft Snap(For Steering Main Shaft)[08.2000 - 07.2003] UCF3# 厚さ＝０．５,下側 |
90905-20003 |
from US $1.10 |
||
|
45201G
|
45201G
90501-40017 Spring, Compression(For Steering Main Shaft)[08.2000 - 07.2003] UCF3# |
90501-40017 |
from US $3.14 |
||
|
45205J
|
45205J
45205-30320 Tube Sub-Assy, Steering Column, Upper[08.2000 - 07.2003] UCF3# |
45205-30320 |
US $64.06 |
||
|
45206
|
45206
45206-50010 Yoke Sub-Assy, Steering Sliding W/shaft[08.2000 - 07.2003] UCF3# |
45206-50010 |
US $113.57 |
||
|
45210
|
45210
45210-50050 Shaft Assy, Steering Main[08.2000 - 01.2002] UCF3# |
45210-50050 |
US $334.88 |
||
| replacement | |||||
|
45210
|
45210
45210-50051 Shaft Assy, Steering Main[08.2000 - 01.2002] UCF3# |
45210-50051 |
US $324.98 |
||
|
45210
|
45210
45210-50051 Shaft Assy, Steering Main[01.2002 - 07.2003] UCF3# |
45210-50051 |
US $324.98 |
||
|
45215
|
45215
45215-12010 Collar, Main Shaft Bearing Thrust[08.2000 - 07.2003] UCF3# |
45215-12010 |
from US $1.39 |
||
|
45221
|
45221
45297-50010 Shaft, Steering Intermediate[08.2000 - 07.2003] UCF3# |
45297-50010 |
US $142.69 |
||
|
45246A
|
45246A
45246-28040 Guide, Steering Energy Absorbing Plate[07.2001 - 07.2003] UCF3# |
45246-28040 |
US $1.89 |
||
|
45246A
|
45246A
45246-50040 Guide, Steering Energy Absorbing Plate[08.2000 - 07.2001] UCF3# |
45246-50040 |
US $2.33 |
||
|
45250
|
45250
45250-50160 Column Assy, Steering[08.2000 - 07.2001] UCF3# |
45250-50160 |
US $1,322.05 |
||
|
45250
|
45250
45250-50190 Column Assy, Steering[07.2001 - 04.2002] UCF3# |
45250-50190 |
US $1,322.05 |
||
| replacement | |||||
|
45250
|
45250
45250-50191 Column Assy, Steering[07.2001 - 04.2002] UCF3# |
45250-50191 |
US $1,320.59 |
||
|
45250
|
45250
45250-50191 Column Assy, Steering[04.2002 - 07.2003] UCF3# |
45250-50191 |
US $1,320.59 |
||
|
45257A
|
45257A
45257-12070 Plate, Steering Column Energy Absorbing[08.2000 - 07.2001] UCF3# |
45257-12070 |
US $5.24 |
||
|
45257A
|
45257A
45257-28010 Plate, Steering Column Energy Absorbing[07.2001 - 07.2003] UCF3# |
45257-28010 |
US $2.91 |
||
|
45260
|
45260
45260-50070 Shaft Assy, Steering Intermediate, No.2[08.2000 - 07.2003] UCF3# |
45260-50070 |
from US $233.92 |
||
|
45266
|
45266
45266-30010 Cover, Steering Intermediate Shaft Dust[08.2000 - 07.2003] UCF3# |
45266-30010 |
US $3.14 |
||
|
45271
|
45271
45271-60030 Clamp, Steering Column, Upper[08.2000 - 07.2003] UCF3# |
45271-60030 |
US $53.73 |
||
|
45279A
|
45279A
45279-33030 Attachment, Steering Column Tube, Lwr[08.2000 - 07.2003] UCF3# |
45279-33030 |
US $0.86 |
||
|
45283A
|
45283A
45283-50010-B0 Plate, Beam Change & Turn Signal Caution[08.2000 - 07.2003] UCF3# SHADOW GRAY,TRIM03,04,1#,2# |
45283-50010-B0 |
US $1.31 |
||
|
45286
|
45286
45286-50940-B0 Cover, Steering Column[08.2000 - 08.2001] UCF3# DK.CHARCOAL,TRIM1# |
45286-50940-B0 |
US $55.18 |
||
| replacement | |||||
|
45286
|
45286
45286-50960-C0 Cover, Steering Column[08.2000 - 08.2001] UCF3# DK.CHARCOAL,TRIM1# |
45286-50960-C0 |
US $55.18 |
||
|
45286
|
45286
45286-50940-C0 Cover, Steering Column[08.2000 - 08.2001] UCF3# BLACK,TRIM2# |
45286-50940-C0 |
US $55.18 |
||
| replacement | |||||
|
45286
|
45286
45286-50960-C0 Cover, Steering Column[08.2000 - 08.2001] UCF3# BLACK,TRIM2# |
45286-50960-C0 |
US $55.18 |
||
|
45286
|
45286
45286-50940-E0 Cover, Steering Column[08.2000 - 08.2001] UCF3# SANDAL WOOD,TRIM04 |
45286-50940-E0 |
US $55.18 |
||
| replacement | |||||
|
45286
|
45286
45286-50960-C0 Cover, Steering Column[08.2000 - 08.2001] UCF3# SANDAL WOOD,TRIM04 |
45286-50960-C0 |
US $55.18 |
||
|
45286
|
45286
45286-50940-E1 Cover, Steering Column[08.2000 - 08.2001] UCF3# CLOVE BROWN,TRIM03 |
45286-50940-E1 |
US $55.18 |
||
| replacement | |||||
|
45286
|
45286
45286-50960-C0 Cover, Steering Column[08.2000 - 08.2001] UCF3# CLOVE BROWN,TRIM03 |
45286-50960-C0 |
US $55.18 |
||
|
45286
|
45286
45286-50960-B0 Cover, Steering Column[08.2001 - 07.2003] UCF3# DK.CHARCOAL,TRIM1# |
45286-50960-B0 |
US $55.18 |
||
| replacement | |||||
|
45286
|
45286
45286-50960-C0 Cover, Steering Column[08.2001 - 07.2003] UCF3# DK.CHARCOAL,TRIM1# |
45286-50960-C0 |
US $55.18 |
||
|
45286
|
45286
45286-50960-C0 Cover, Steering Column[08.2001 - 07.2003] UCF3# BLACK,TRIM2# |
45286-50960-C0 |
US $55.18 |
||
|
45286
|
45286
45286-50960-E0 Cover, Steering Column[08.2001 - 07.2003] UCF3# SANDAL WOOD,TRIM04 |
45286-50960-E0 |
US $55.18 |
||
| replacement | |||||
|
45286
|
45286
45286-50960-C0 Cover, Steering Column[08.2001 - 07.2003] UCF3# SANDAL WOOD,TRIM04 |
45286-50960-C0 |
US $55.18 |
||
|
45286
|
45286
45286-50960-E1 Cover, Steering Column[08.2001 - 07.2003] UCF3# CLOVE BROWN,TRIM03 |
45286-50960-E1 |
US $55.18 |
||
| replacement | |||||
|
45286
|
45286
45286-50960-C0 Cover, Steering Column[08.2001 - 07.2003] UCF3# CLOVE BROWN,TRIM03 |
45286-50960-C0 |
US $55.18 |
||
|
45291A
|
45291A
45291-33020 Support, Steering Column Tube[08.2000 - 07.2003] UCF3# |
45291-33020 |
US $7.72 |
||
|
45761
|
45761
45761-60010 Slider, Telescopic Steering[08.2000 - 07.2003] UCF3# |
45761-60010 |
from US $4.26 |
||
|
45761B
|
45761B
45766-60010 Support, Telescopic Steering Slider[08.2000 - 08.2001] UCF3# |
45766-60010 |
US $4.37 |
||
| replacement | |||||
|
45761B
|
45761B
45766-60011 Support, Telescopic Steering Slider[08.2000 - 08.2001] UCF3# |
45766-60011 |
US $4.89 |
||
|
45765
|
45765
45765-60011 Guide, Telescopic Steering[08.2000 - 07.2003] UCF3# 上側 |
45765-60011 |
from US $9.29 |
||
|
45765
|
45765
45765-60021 Guide, Telescopic Steering[08.2000 - 07.2003] UCF3# 下側 |
45765-60021 |
from US $1.14 |
||
|
45767
|
45767
45767-50010
Cable, Telescopic Steering Column
[08.2000 - 07.2003] UCF3# |
45767-50010 |
— | ||
| replacement | |||||
|
45767
|
45767
45230-50020 Joint Assy, Steering Shaft Universal[08.2000 - 07.2003] UCF3# |
45230-50020 |
US $14.52 |
||
|
45767A
|
45767A
45811-60010 Screw, Telescopic Steering[08.2000 - 07.2003] UCF3# |
45811-60010 |
US $8.74 |
||
|
45768
|
45768
45768-60011 Bush, Telescopic Steering[08.2000 - 07.2003] UCF3# |
45768-60011 |
from US $2.39 |
||
|
45783
|
45783
45783-60010 Stopper, Tilt Steering, No.1[08.2000 - 07.2003] UCF3# |
45783-60010 |
from US $0.99 |
||
|
45798
|
45798
45798-50010 Clamp, Steering Intermediate Shaft, Rh[08.2000 - 07.2003] UCF3# |
45798-50010 |
US $4.22 |
||
|
45801A
|
45801A
45875-12010 Support Sub-Assy, Steering Post[08.2000 - 07.2003] UCF3# |
45875-12010 |
US $1.31 |
||
|
45805C
|
45805C
90504-14007 Spring, Compression(For Tilt Steering Support)[08.2000 - 07.2003] UCF3# |
90504-14007 |
from US $1.58 |
||
|
45816
|
45816
45816-60020 Bracket, Connector, No.2[08.2000 - 07.2003] UCF3# |
45816-60020 |
US $3.35 |
||
|
45831A
|
45831A
45831-60010 Bolt, Telescope Lever Lock[08.2000 - 07.2003] UCF3# |
45831-60010 |
US $4.02 |
||
|
45832
|
45832
45832-60010 Cable, Tilt Steering Support Bond[08.2000 - 07.2003] UCF3# |
45832-60010 |
US $6.58 |
||
|
45833
|
45833
45833-60010 Nut, Tilt Steering Adjusting, No.1[08.2000 - 07.2003] UCF3# |
45833-60010 |
from US $14.33 |
||
|
45835
|
45835
45835-60010 Wedge, Lock[08.2000 - 07.2003] UCF3# |
45835-60010 |
US $4.89 |
||
|
45835C
|
45835C
90501-23140 Spring, Compression(For Steering Telescopic Wedge Lock)[08.2000 - 07.2003] UCF3# |
90501-23140 |
US $2.18 |
||
|
45837A
|
45837A
45837-30020 Bracket, Steerlng Lower Tube, No.1[08.2000 - 07.2003] UCF3# |
45837-30020 |
US $5.68 |
||
|
45855
|
45855
45855-60010 Bolt, Tilt Steering, No.1[08.2000 - 07.2003] UCF3# 外径＝１１．９９３−１１．９７９ |
45855-60010 |
from US $3.08 |
||
|
45856B
|
45856B
45856-60010 Shaft, T1Lt Steering, No.2[08.2000 - 07.2003] UCF3# |
45856-60010 |
US $4.02 |
||
|
45866A
|
45866A
45866-60010 Stopper, Steering Main Shaft Bush[08.2000 - 07.2003] UCF3# 内側 |
45866-60010 |
US $1.38 |
||
|
45866A
|
45866A
45866-60020 Stopper, Steering Main Shaft Bush[08.2000 - 07.2003] UCF3# 外側 |
45866-60020 |
US $1.38 |
||
|
45870
|
45870
45870-50030 Tube Assy, Steering Column[08.2000 - 07.2003] UCF3# |
45870-50030 |
US $64.06 |
||
|
45873
|
45873
45873-60010 Stopper, Steering Column Tube[08.2000 - 07.2003] UCF3# |
45873-60010 |
US $2.48 |
||
|
45877A
|
45877A
45877-60011 Spacer, Steering Column Bracket[08.2000 - 07.2003] UCF3# |
45877-60011 |
US $2.04 |
||
|
45891
|
45891
45891-30040 Bracket, Turn Signal[08.2000 - 04.2002] UCF3# |
45891-30040 |
US $25.77 |
||
|
45891
|
45891
45891-50040 Bracket, Turn Signal[04.2002 - 07.2003] UCF3# |
45891-50040 |
US $25.77 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[08.2000 - 07.2003] UCF3# |
45897-12020 |
from US $2.51 |
||
|
45898B
|
45898B
45898-60010 Bolt, Tilt Steering Support Stopper[08.2000 - 07.2003] UCF3# |
45898-60010 |
from US $1.82 |
||
|
45898E
|
45898E
90389-08124 Bush(For Tilt Steering Support Bolt)[08.2000 - 07.2003] UCF3# |
90389-08124 |
from US $2.06 |
||
|
89231A
|
89231A
89231-50050 Motor, Power Tilt[08.2000 - 07.2003] UCF3# |
89231-50050 |
from US $295.84 |
||
|
89232
|
89232
89232-50041 Motor, Power Telescopic[08.2000 - 07.2003] UCF3# |
89232-50041 |
US $295.84 |
||
|
91621B0618
|
91621B0618
91621-B0618
New Genuine Part
|
91621-B0618 |
— | ||
| replacement | |||||
|
91621B0618
|
91621B0618
91651-B0620 New Genuine Part |
91651-B0620 |
US $0.83 |
||
|
91651G0620
|
91651G0620
91651-G0620 New Genuine Part |
91651-G0620 |
US $1.02 |
||
|
4589860020
|
4589860020
45898-60020
New Genuine Part
|
45898-60020 |
— | ||
| replacement | |||||
|
4589860020
|
4589860020
90105-06251 New Genuine Part |
90105-06251 |
US $0.87 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.06 |
||
|
9011908964
|
9011908964
90119-08964 New Genuine Part |
90119-08964 |
US $1.31 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.68 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
|
9017908170
|
9017908170
90179-08170 NUT |
90179-08170 |
US $0.87 |
||
|
9036708001
|
9036708001
90367-08001 BEARING |
90367-08001 |
US $3.03 |
||
|
9046080006
|
9046080006
90460-80006 Clamp, Hose |
90460-80006 |
US $7.71 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.38 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $0.83 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $1.38 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.24 |
||
