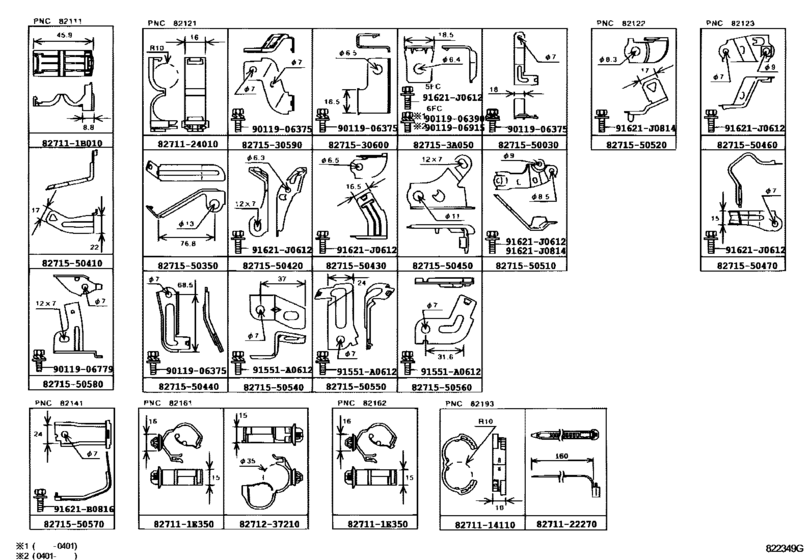

Wiring & Clamp ([08.2000 - ] ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ (0008- )) Diagram Toyota CELSIOR
- Year
- 2000 - 2003
- Sales region
- Japan
- Frame
- UCF30
- grade
- A
- ENGINE
- 3UZFE
- From
- 08.2000
- To
- 07.2003
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
91551A0612
|
91551A0612
91551-A0612 BOLT FLANGE |
91551-A0612 |
from US $0.74 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.74 |
||
|
827111B010
|
827111B010
82711-1B010 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1B010 |
US $5.12 |
||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
US $2.88 |
||
| replacement | |||||
|
827111E350
|
827111E350
82711-06050 Clamp, Door Scuff Plate, No.2 |
82711-06050 |
US $6.47 |
||
|
827153A050
|
827153A050
82715-3A050 Bracket,wiring Harness Clamp |
82715-3A050 |
US $2.33 |
||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $2.72 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $4.37 |
||
|
8271124010
|
8271124010
82711-24010 Wire, Fuse To Fuse(for Combustion Heater) |
82711-24010 |
US $11.04 |
||
|
8271237210
|
8271237210
82712-37210 Hose, Suction |
82712-37210 |
US $3.52 |
||
|
8271530590
|
8271530590
82715-30590 Bracket,wiring Harness Clamp |
82715-30590 |
US $7.28 |
||
|
8271530600
|
8271530600
82715-30600 Bracket,wiring Harness Clamp |
82715-30600 |
US $4.22 |
||
|
8271550030
|
8271550030
82715-50030 Bracket,wiring Harness Clamp |
82715-50030 |
US $4.37 |
||
|
8271550350
|
8271550350
82715-50350 Bracket,wiring Harness Clamp |
82715-50350 |
US $5.24 |
||
|
8271550410
|
8271550410
82715-50410 Bracket,wiring Harness Clamp |
82715-50410 |
US $5.68 |
||
|
8271550420
|
8271550420
82715-50420
Bracket,wiring Harness Clamp
|
82715-50420 |
— | ||
|
8271550430
|
8271550430
82715-50430 Bracket,wiring Harness Clamp |
82715-50430 |
US $4.95 |
||
|
8271550440
|
8271550440
82715-50440
Bracket,wiring Harness Clamp
|
82715-50440 |
— | ||
|
8271550450
|
8271550450
82715-50450 Bracket,wiring Harness Clamp |
82715-50450 |
US $9.90 |
||
|
8271550460
|
8271550460
82715-50460 Bracket,wiring Harness Clamp |
82715-50460 |
US $11.36 |
||
|
8271550470
|
8271550470
82715-50470 Bracket,wiring Harness Clamp |
82715-50470 |
US $6.84 |
||
|
8271550510
|
8271550510
82715-50510 Bracket,wiring Harness Clamp |
82715-50510 |
US $8.30 |
||
|
8271550520
|
8271550520
82715-50520 Bracket,wiring Harness Clamp |
82715-50520 |
US $3.20 |
||
|
8271550540
|
8271550540
82715-50540
Bracket,wiring Harness Clamp
|
82715-50540 |
— | ||
|
8271550550
|
8271550550
82715-50550 Bracket,wiring Harness Clamp |
82715-50550 |
US $4.80 |
||
|
8271550560
|
8271550560
82715-50560 Bracket,wiring Harness Clamp |
82715-50560 |
US $3.93 |
||
|
8271550570
|
8271550570
82715-50570 Bracket,wiring Harness Clamp |
82715-50570 |
US $9.03 |
||
|
8271550580
|
8271550580
82715-50580 Bracket,wiring Harness Clamp |
82715-50580 |
US $6.84 |
||
|
9011906375
|
9011906375
90119-06375 Bolt (For Transmission Housing & Case Setting) |
90119-06375 |
US $1.12 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9011906779
|
9011906779
90119-06779 BOLT W-WASHER |
90119-06779 |
from US $0.68 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.66 |
||
