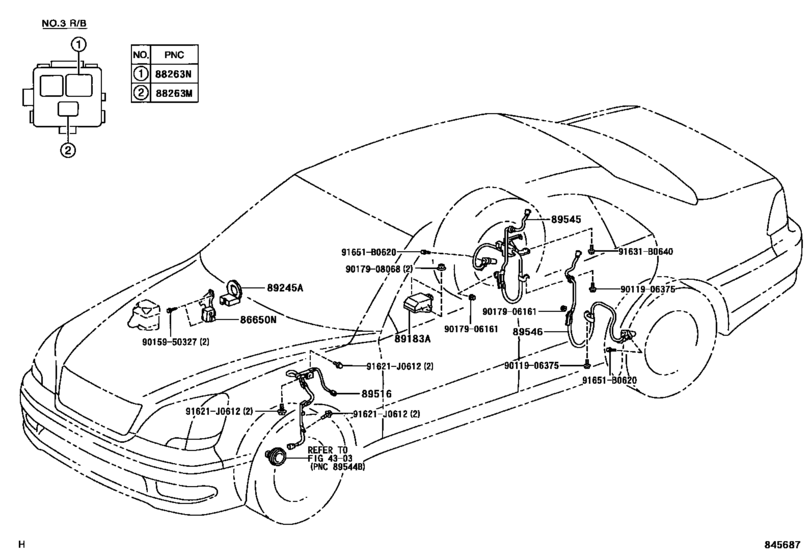

Abs & Vsc ([07.2003 - ] (0307- )) Diagram Toyota CELSIOR
- Year
- 2003 - 2006
- Sales region
- Japan
- Frame
- UCF30
- grade
- B
- ENGINE
- 3UZFE
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86650N
|
86650N
86650-5A040 Buzzer Assy[07.2003 -] UCF3# |
86650-5A040 |
US $39.60 |
||
|
88263M
|
88263M
88263-32070 Relay, Skid Control[07.2003 -] UCF3# |
88263-32070 |
US $42.71 |
||
|
88263N
|
88263N
88263-21010 Relay[07.2003 -] UCF3# |
88263-21010 |
from US $41.65 |
||
|
89183A
|
89183A
89183-50020 Sensor, Yawrate[07.2003 -] UCF3# |
89183-50020 |
US $1,616.16 |
||
| replacement | |||||
|
89183A
|
89183A
89183-60020 Sensor, Yawrate[07.2003 -] UCF3# |
89183-60020 |
US $1,116.75 |
||
|
89245A
|
89245A
89245-48020 Sensor, Steering[07.2003 - 08.2006] UCF3# |
89245-48020 |
US $260.62 |
||
| replacement | |||||
|
89245A
|
89245A
89245-30080 Sensor, Steering[07.2003 - 08.2006] UCF3# |
89245-30080 |
from US $211.98 |
||
|
89516
|
89516
89516-50010 Wire, Skid Control Sensor[07.2003 -] UCF3# 右側 |
89516-50010 |
US $106.58 |
||
|
89516
|
89516
89516-50020 Wire, Skid Control Sensor[07.2003 -] UCF3# 左側 |
89516-50020 |
US $72.16 |
||
|
89545
|
89545
89545-50050 Sensor, Speed, Rear Rh[07.2003 -] UCF3# |
89545-50050 |
US $284.79 |
||
|
89546
|
89546
89546-50050 Sensor, Speed, Rear Lh[07.2003 -] UCF3# |
89546-50050 |
US $284.79 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
91631B0640
|
91631B0640
91631-B0640 New Genuine Part |
91631-B0640 |
US $1.16 |
||
|
91651B0620
|
91651B0620
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.12 |
||
|
9011906375
|
9011906375
90119-06375 Bolt (For Transmission Housing & Case Setting) |
90119-06375 |
US $1.12 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.84 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
