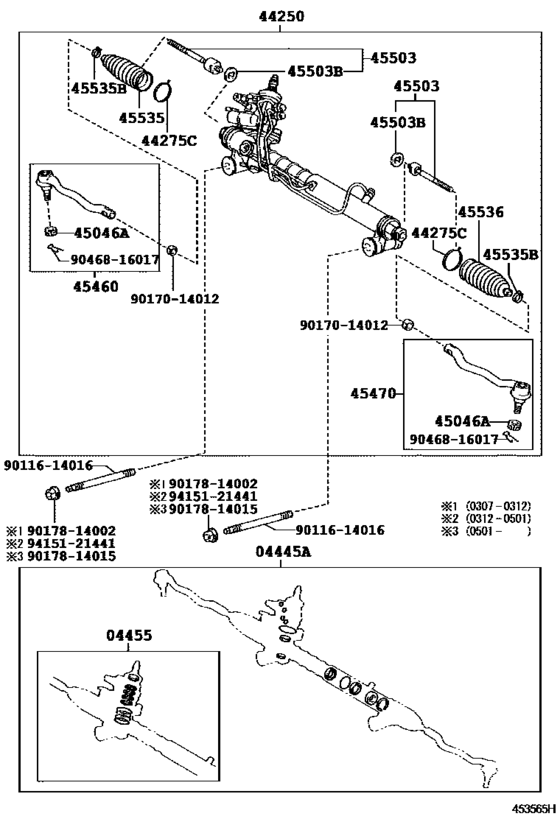

Front Steering Gear & Link ([07.2003 - ] (0307- )) Diagram Toyota CELSIOR
- Year
- 2003 - 2006
- Sales region
- Japan
- Frame
- UCF30
- grade
- B
- ENGINE
- 3UZFE
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-50040 Gasket Kit, Power Steering Gear(For Rack & Pinion)[07.2003 -] UCF3# |
04445-50040 |
from US $91.76 |
||
|
04455
|
04455
04455-50040
Gasket Kit, Power Steering Control Valve Overhole
[07.2003 -] UCF3# |
04455-50040 |
— | ||
|
44250
|
44250
44200-50190 Gear Assy, Power Steering(For Rack & Pinion)[07.2003 -] UCF3# |
44200-50190 |
US $1,836 |
||
|
44275C
|
44275C
90580-14073 Wire(For Cylinder End Stopper)[07.2003 -] UCF3# |
90580-14073 |
US $1.76 |
||
|
45046A
|
45046A
90171-12002 Nut, Castle(For Tie Rod End)[07.2003 -] UCF3# |
90171-12002 |
from US $1.19 |
||
|
45460
|
45460
45460-59045 Rod Assy, Tie, Rh[07.2003 -] UCF3# |
45460-59045 |
from US $75.48 |
||
|
45470
|
45470
45470-59045 Rod Assy, Tie, Lh[07.2003 -] UCF3# |
45470-59045 |
from US $75.48 |
||
|
45503
|
45503
45503-59065 End Sub-Assy, Steering Rack[07.2003 -] UCF3# |
45503-59065 |
from US $91.76 |
||
|
45503B
|
45503B
90214-18003 Washer, Claw(For Steering Rack End)[07.2003 -] UCF3# 外径＝４０ |
90214-18003 |
US $4.37 |
||
|
45535
|
45535
45535-50010 Boot, Steering Rack, No.1[07.2003 -] UCF3# |
45535-50010 |
from US $19.61 |
||
|
45535B
|
45535B
90467-19019 Clip[07.2003 -] UCF3# |
90467-19019 |
from US $4.41 |
||
|
45536
|
45536
45535-50010 Boot, Steering Rack, No.1[07.2003 -] UCF3# |
45535-50010 |
from US $19.61 |
||
|
9011614016
|
9011614016
90116-14016 BOLT STUD |
90116-14016 |
US $6.55 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9017814002
|
9017814002
90178-14002 NUT, FLANGE |
90178-14002 |
US $1.92 |
||
|
9017814015
|
9017814015
90178-14015 New Genuine Part |
90178-14015 |
US $3.04 |
||
|
9046816017
|
9046816017
90468-16017 CLIP |
90468-16017 |
from US $0.80 |
||
|
9415121441
|
9415121441
94151-21441 NUT FLANGE |
94151-21441 |
from US $1.21 |
