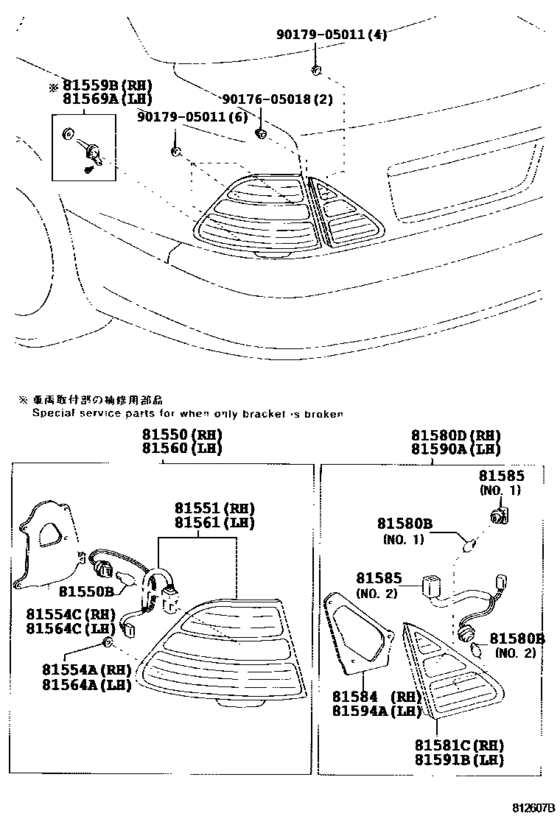

Rear Combination Lamp ([07.2003 - ] BULBｼｷ (0307- )) Diagram Toyota CELSIOR
- Year
- 2003 - 2006
- Sales region
- Japan
- Frame
- UCF30
- grade
- B
- ENGINE
- 3UZFE
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-50150 Lamp Assy, Rear Combination, Rh[07.2003 - 08.2006] UCF3# |
81550-50150 |
US $614.43 |
||
|
81550B
|
81550B
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[07.2003 -] UCF3# １２Ｖ ２１Ｗ，アンバー |
90981-15011 |
from US $4.60 |
||
|
81551
|
81551
81551-50150 Lens, Rear Combination Lamp, Rh[07.2003 -] UCF3# |
81551-50150 |
US $600.60 |
||
|
81554A
|
81554A
81554-32150 Gasket, Rear Combination Lamp Body, Rh[07.2003 - 08.2006] UCF3# |
81554-32150 |
US $4.80 |
||
|
81554C
|
81554C
81554-50150 Packing, Rear Combination Lamp Body, Rh[07.2003 -] UCF3# |
81554-50150 |
US $15.66 |
||
|
81559B
|
81559B
81559-50020 Bracket, Rear Combination Lamp, Rh[07.2003 -] UCF3# |
81559-50020 |
US $1.60 |
||
|
81560
|
81560
81560-50150 Lamp Assy, Rear Combination, Lh[07.2003 - 08.2006] UCF3# |
81560-50150 |
US $614.43 |
||
|
81561
|
81561
81561-50150 Lens, Rear Combination Lamp, Lh[07.2003 -] UCF3# |
81561-50150 |
US $600.60 |
||
|
81564A
|
81564A
81554-32150 Gasket, Rear Combination Lamp Body, Rh[07.2003 - 08.2006] UCF3# |
81554-32150 |
US $4.80 |
||
|
81564C
|
81564C
81564-50150 Packing, Rear Combination Lamp Body, Lh[07.2003 -] UCF3# |
81564-50150 |
US $15.66 |
||
|
81569A
|
81569A
81559-50020 Bracket, Rear Combination Lamp, Rh[07.2003 -] UCF3# |
81559-50020 |
US $1.60 |
||
|
81580B
|
81580B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[07.2003 -] UCF3# １２Ｖ １６Ｗ,ＮＯ．１ |
90981-11059 |
from US $3.20 |
||
|
81580B
|
81580B
90981-13043 Bulb (12V 21W)[07.2003 -] UCF3# １２Ｖ ２１Ｗ,BULBｼｷ,ＮＯ．２ |
90981-13043 |
from US $3.52 |
||
|
81580D
|
81580D
81580-50130 Lamp Assy, Rear, Rh[07.2003 - 08.2006] UCF3# LEDｼｷ |
81580-50130 |
US $343.62 |
||
|
81580D
|
81580D
81580-50140 Lamp Assy, Rear, Rh[07.2003 - 08.2006] UCF3# BULBｼｷ |
81580-50140 |
US $292.66 |
||
|
81581C
|
81581C
81581-50130 Lens And Body, Rear Lamp, Rh[07.2003 -] UCF3# LEDｼｷ |
81581-50130 |
US $315 |
||
|
81581C
|
81581C
81581-50140 Lens And Body, Rear Lamp, Rh[07.2003 -] UCF3# BULBｼｷ |
81581-50140 |
US $251.89 |
||
|
81584
|
81584
81584-50130 Packing, Rear Lamp Rh[07.2003 -] UCF3# |
81584-50130 |
US $15.66 |
||
|
81585
|
81585
81278-20610 Socket And Wire, License Plate Lamp[07.2003 -] UCF3# ＮＯ．１ |
81278-20610 |
US $13.28 |
||
|
81585
|
81585
81585-50130 Socket & Wire, Rear Lamp[07.2003 -] UCF3# LEDｼｷ,ＮＯ．２ |
81585-50130 |
from US $21.55 |
||
|
81585
|
81585
81585-50140 Socket & Wire, Rear Lamp[07.2003 -] UCF3# BULBｼｷ,ＮＯ．２ |
81585-50140 |
US $21.55 |
||
|
81590A
|
81590A
81590-50130 Lamp Assy, Rear, Lh[07.2003 - 08.2006] UCF3# LEDｼｷ |
81590-50130 |
US $343.62 |
||
|
81590A
|
81590A
81590-50140 Lamp Assy, Rear, Lh[07.2003 - 08.2006] UCF3# BULBｼｷ |
81590-50140 |
US $292.66 |
||
|
81591B
|
81591B
81591-50130 Lens And Body, Rear Lamp, Lh[07.2003 -] UCF3# LEDｼｷ |
81591-50130 |
US $315 |
||
|
81591B
|
81591B
81591-50140 Lens And Body, Rear Lamp, Lh[07.2003 -] UCF3# BULBｼｷ |
81591-50140 |
US $251.89 |
||
|
81594A
|
81594A
81594-50130 Gasket, Rear Lamp Lh[07.2003 -] UCF3# |
81594-50130 |
US $15.66 |
||
|
9017605018
|
9017605018
90176-05018 NUT, CAP |
90176-05018 |
from US $0.80 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.80 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
