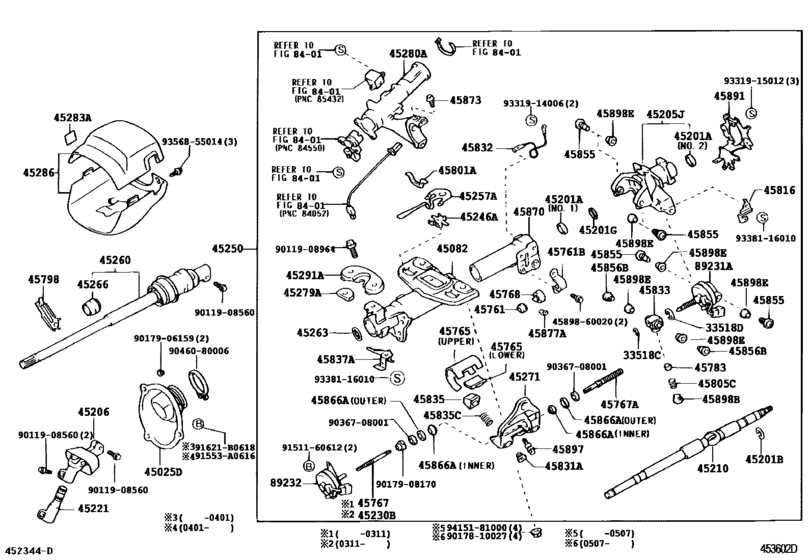

Steering Column & Shaft ([07.2003 - ] (0307- )) Diagram Toyota CELSIOR
- Year
- 2003 - 2006
- Sales region
- Japan
- Frame
- UCF30
- grade
- B
- ENGINE
- 3UZFE
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33518C
|
33518C
90523-06019 Ring, E (For Upper Control Shaft Piece Bush)[07.2003 -] UCF3# |
90523-06019 |
US $3.52 |
||
|
33518D
|
33518D
90523-08001 E Ring (For Tilt Motor Shaft, Lower)[07.2003 -] UCF3# |
90523-08001 |
US $1.40 |
||
|
45025D
|
45025D
45025-50050 Cover Sub-Assy, Steering Column Hole, No.1[07.2003 -] UCF3# |
45025-50050 |
US $26.21 |
||
|
45082
|
45082
45082-50120 Bracket Sub-Assy, Break Away W/capsule[07.2003 -] UCF3# |
45082-50120 |
US $103.38 |
||
|
45201A
|
45201A
90363-18005 Bearing(For Steering Main Shaft)[07.2003 -] UCF3# ＮＯ．２ |
90363-18005 |
from US $6.61 |
||
|
45201A
|
45201A
90363-25077 Bearing(For Steering Main Shaft)[07.2003 -] UCF3# ＮＯ．１ |
90363-25077 |
from US $9.26 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[07.2003 -] UCF3# 厚さ＝１．２０ |
90520-17042 |
from US $0.86 |
||
|
45201G
|
45201G
45820-50010 Spring, Compression(For Steering Main Shaft)[07.2003 -] UCF3# |
45820-50010 |
US $7.16 |
||
|
45205J
|
45205J
45205-50020 Tube Sub-Assy, Steering Column, Upper[07.2003 -] UCF3# |
45205-50020 |
US $64.06 |
||
|
45206
|
45206
45206-50010 Yoke Sub-Assy, Steering Sliding W/shaft[07.2003 -] UCF3# |
45206-50010 |
US $113.57 |
||
|
45210
|
45210
45210-50060 Shaft Assy, Steering Main[07.2003 -] UCF3# |
45210-50060 |
from US $352.93 |
||
|
45221
|
45221
45297-50010 Shaft, Steering Intermediate[07.2003 -] UCF3# |
45297-50010 |
US $142.69 |
||
|
45230B
|
45230B
45230-50020 Joint Assy, Steering Shaft Universal[11.2003 -] UCF3# |
45230-50020 |
US $17.12 |
||
|
45246A
|
45246A
45246-28040 Guide, Steering Energy Absorbing Plate[07.2003 -] UCF3# |
45246-28040 |
US $1.89 |
||
|
45250
|
45250
45250-50210 Column Assy, Steering[07.2003 -] UCF3#..B,C ｱﾘ(ｽﾏ-ﾄｷ- ｼｽﾃﾑ) |
45250-50210 |
US $1,428.34 |
||
|
45257A
|
45257A
45257-28010 Plate, Steering Column Energy Absorbing[07.2003 -] UCF3# |
45257-28010 |
US $2.91 |
||
|
45260
|
45260
45260-50070 Shaft Assy, Steering Intermediate, No.2[07.2003 -] UCF3# |
45260-50070 |
US $267.84 |
||
|
45263
|
45263
45263-50010 Ring, Steering Column, No.1[07.2003 -] UCF3# |
45263-50010 |
from US $2.18 |
||
|
45266
|
45266
45266-30010 Cover, Steering Intermediate Shaft Dust[07.2003 -] UCF3# |
45266-30010 |
US $3.14 |
||
|
45271
|
45271
45271-60030 Clamp, Steering Column, Upper[07.2003 -] UCF3# |
45271-60030 |
US $53.73 |
||
|
45279A
|
45279A
45279-33030 Attachment, Steering Column Tube, Lwr[07.2003 -] UCF3# |
45279-33030 |
US $0.86 |
||
|
45283A
|
45283A
45283-50010-B0 Plate, Beam Change & Turn Signal Caution[07.2003 - 08.2006] UCF30 SHADOW GRAY,TRIM00,07,1#,2#; UCF31 SHADOW GRAY,TRIM00,07,1#,21,24 |
45283-50010-B0 |
US $1.31 |
||
|
45286
|
45286
45286-50913-B1 Cover, Steering Column[07.2003 - 08.2006] UCF3# MD.GRAY,TRIM1# |
45286-50913-B1 |
US $52.42 |
||
|
45286
|
45286
45286-50913-C0 Cover, Steering Column[07.2003 - 08.2006] UCF30 BLACK,TRIM2#; UCF31 BLACK,TRIM21,24 |
45286-50913-C0 |
US $52.42 |
||
| replacement | |||||
|
45286
|
45286
45286-50960-C0 Cover, Steering Column[07.2003 - 08.2006] UCF30 BLACK,TRIM2#; UCF31 BLACK,TRIM21,24 |
45286-50960-C0 |
US $55.18 |
||
|
45286
|
45286
45286-50913-E0 Cover, Steering Column[07.2003 - 08.2006] UCF3# SANDAL WOOD,TRIM07 |
45286-50913-E0 |
US $52.42 |
||
| replacement | |||||
|
45286
|
45286
45286-50960-C0 Cover, Steering Column[07.2003 - 08.2006] UCF3# SANDAL WOOD,TRIM07 |
45286-50960-C0 |
US $55.18 |
||
|
45286
|
45286
45286-50913-E1 Cover, Steering Column[07.2003 - 08.2006] UCF3# CLOVE BROWN,TRIM00 |
45286-50913-E1 |
US $52.42 |
||
| replacement | |||||
|
45286
|
45286
45286-50960-C0 Cover, Steering Column[07.2003 - 08.2006] UCF3# CLOVE BROWN,TRIM00 |
45286-50960-C0 |
US $55.18 |
||
|
45291A
|
45291A
45291-33020 Support, Steering Column Tube[07.2003 -] UCF3# |
45291-33020 |
US $7.72 |
||
|
45761
|
45761
45761-60010 Slider, Telescopic Steering[07.2003 -] UCF3# |
45761-60010 |
from US $4.74 |
||
|
45761B
|
45761B
45766-60011 Support, Telescopic Steering Slider[07.2003 -] UCF3# |
45766-60011 |
US $4.89 |
||
|
45765
|
45765
45765-60011 Guide, Telescopic Steering[07.2003 -] UCF3# 上側 |
45765-60011 |
from US $10.41 |
||
|
45765
|
45765
45765-60021 Guide, Telescopic Steering[07.2003 -] UCF3# 下側 |
45765-60021 |
from US $1.33 |
||
|
45767
|
45767
45767-50010
Cable, Telescopic Steering Column
[07.2003 - 11.2003] UCF3# |
45767-50010 |
— | ||
| replacement | |||||
|
45767
|
45767
45230-50020 Joint Assy, Steering Shaft Universal[07.2003 - 11.2003] UCF3# |
45230-50020 |
US $17.12 |
||
|
45767A
|
45767A
45811-60010 Screw, Telescopic Steering[07.2003 -] UCF3# |
45811-60010 |
US $8.74 |
||
|
45768
|
45768
45768-60011 Bush, Telescopic Steering[07.2003 -] UCF3# |
45768-60011 |
US $4.48 |
||
|
45783
|
45783
45783-60010 Stopper, Tilt Steering, No.1[07.2003 -] UCF3# |
45783-60010 |
US $1.46 |
||
|
45798
|
45798
45798-50010 Clamp, Steering Intermediate Shaft, Rh[07.2003 -] UCF3# |
45798-50010 |
US $4.22 |
||
|
45801A
|
45801A
45875-12010 Support Sub-Assy, Steering Post[07.2003 -] UCF3# |
45875-12010 |
US $1.31 |
||
|
45805C
|
45805C
90504-14007 Spring, Compression(For Tilt Steering Support)[07.2003 -] UCF3# |
90504-14007 |
US $1.75 |
||
|
45816
|
45816
45816-50030 Bracket, Wire Harness[07.2003 -] UCF3# |
45816-50030 |
US $4.22 |
||
|
45831A
|
45831A
45831-60010 Bolt, Telescope Lever Lock[07.2003 -] UCF3# |
45831-60010 |
US $4.02 |
||
|
45832
|
45832
45832-60010 Cable, Tilt Steering Support Bond[07.2003 -] UCF3# |
45832-60010 |
US $6.58 |
||
|
45833
|
45833
45833-60010 Nut, Tilt Steering Adjusting, No.1[07.2003 -] UCF3# |
45833-60010 |
US $14.33 |
||
|
45835
|
45835
45835-60010 Wedge, Lock[07.2003 -] UCF3# |
45835-60010 |
from US $4.89 |
||
|
45835C
|
45835C
90501-23140 Spring, Compression(For Steering Telescopic Wedge Lock)[07.2003 -] UCF3# |
90501-23140 |
US $2.18 |
||
|
45837A
|
45837A
45837-50030 Bracket, Steerlng Lower Tube, No.1[07.2003 -] UCF3# |
45837-50030 |
US $6.12 |
||
|
45855
|
45855
45855-60010 Bolt, Tilt Steering, No.1[07.2003 -] UCF3# 外径＝１１．９９３−１１．９７９ |
45855-60010 |
US $5.12 |
||
|
45856B
|
45856B
45856-60010 Shaft, T1Lt Steering, No.2[07.2003 -] UCF3# |
45856-60010 |
from US $0.86 |
||
|
45866A
|
45866A
45866-60010 Stopper, Steering Main Shaft Bush[07.2003 -] UCF3# 内側 |
45866-60010 |
from US $1.76 |
||
|
45866A
|
45866A
45866-60020 Stopper, Steering Main Shaft Bush[07.2003 -] UCF3# 外側 |
45866-60020 |
from US $1.76 |
||
|
45870
|
45870
45870-50030 Tube Assy, Steering Column[07.2003 -] UCF3# |
45870-50030 |
US $64.06 |
||
|
45873
|
45873
45873-60010 Stopper, Steering Column Tube[07.2003 -] UCF3# |
45873-60010 |
US $2.48 |
||
|
45877A
|
45877A
45877-60011 Spacer, Steering Column Bracket[07.2003 -] UCF3# |
45877-60011 |
US $2.04 |
||
|
45891
|
45891
45891-50040 Bracket, Turn Signal[07.2003 -] UCF3# |
45891-50040 |
US $25.77 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[07.2003 -] UCF3# |
45897-12020 |
from US $3.36 |
||
|
45898B
|
45898B
45898-60010 Bolt, Tilt Steering Support Stopper[07.2003 -] UCF3# |
45898-60010 |
from US $2.05 |
||
|
45898E
|
45898E
90389-08124 Bush(For Tilt Steering Support Bolt)[07.2003 -] UCF3# |
90389-08124 |
from US $2.30 |
||
|
89231A
|
89231A
89231-50060 Motor, Power Tilt[07.2003 -] UCF3# |
89231-50060 |
from US $326.20 |
||
|
89232
|
89232
89232-50050 Motor, Power Telescopic[07.2003 -] UCF3# |
89232-50050 |
from US $295.74 |
||
|
91553A0616
|
91553A0616
91553-A0616 New Genuine Part |
91553-A0616 |
US $0.96 |
||
|
91621B0618
|
91621B0618
91621-B0618
New Genuine Part
|
91621-B0618 |
— | ||
| replacement | |||||
|
91621B0618
|
91621B0618
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.12 |
||
|
4589860020
|
4589860020
45898-60020
New Genuine Part
|
45898-60020 |
— | ||
| replacement | |||||
|
4589860020
|
4589860020
90105-06251 New Genuine Part |
90105-06251 |
US $0.87 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9011908964
|
9011908964
90119-08964 New Genuine Part |
90119-08964 |
US $1.31 |
||
|
9017810027
|
9017810027
90178-10027 New Genuine Part |
90178-10027 |
US $1.60 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9017908170
|
9017908170
90179-08170 NUT |
90179-08170 |
US $1.60 |
||
|
9036708001
|
9036708001
90367-08001 Bearing |
90367-08001 |
US $3.52 |
||
|
9046080006
|
9046080006
90460-80006 Clamp, Hose |
90460-80006 |
US $9.76 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $0.87 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.60 |
||
