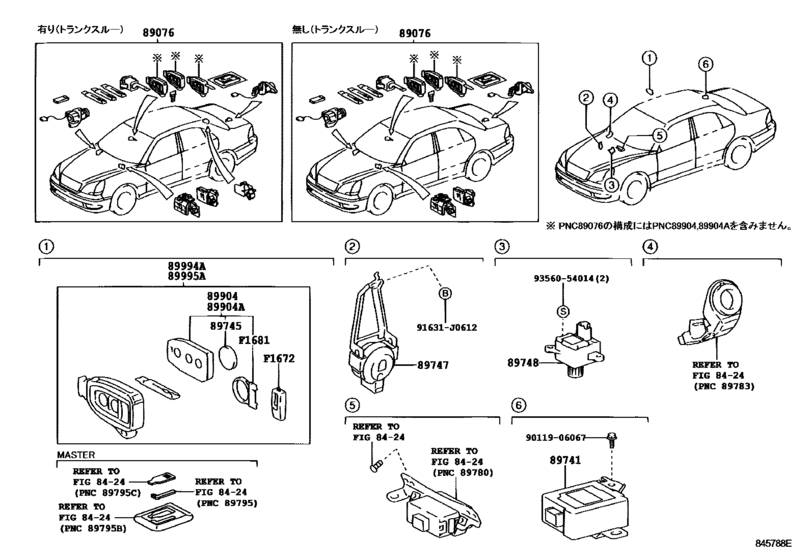

Wireless Door Lock ([07.2003 - ] ｽﾏ-ﾄ ｷ- ｼｽﾃﾑ (0307- )B,C) Diagram Toyota CELSIOR
- Year
- 2003 - 2006
- Sales region
- Japan
- Frame
- UCF30
- grade
- B
- ENGINE
- 3UZFE
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89076
|
89076
69005-50790 Cylinder Set, Lock W/transmitter Case[07.2003 -] UCF3#..B,C |
69005-50790 |
US $982.80 |
||
|
89076
|
89076
69005-50800 Cylinder Set, Lock W/transmitter Case[07.2003 -] UCF3#..B,C ﾅｼ(ﾄﾗﾝｸｽﾙ-) |
69005-50800 |
US $911.46 |
||
| replacement | |||||
|
89076
|
89076
69005-50790 Cylinder Set, Lock W/transmitter Case[07.2003 -] UCF3#..B,C ﾅｼ(ﾄﾗﾝｸｽﾙ-) |
69005-50790 |
US $982.80 |
||
|
89741
|
89741
89741-50420 Receiver, Door Control[07.2003 -] UCF3# |
89741-50420 |
US $838.66 |
||
|
89745
|
89745
89745-50020 Battery, Transmitter[07.2003 -] UCF3#..B,C ｱﾘ(ｽﾏ-ﾄｷ- ｼｽﾃﾑ) |
89745-50020 |
from US $7.04 |
||
|
89747
|
89747
89747-50050 Buzzer, Wireless Door Lock[07.2003 -] UCF3# |
89747-50050 |
US $84.45 |
||
|
89748
|
89748
89748-50010 Controller, Wireless Door Lock Buzzer[07.2003 -] UCF3# |
89748-50010 |
US $75.71 |
||
|
89904
|
89904
89904-50270 Transmitter Sub-Assy, Electrical Key[07.2003 - 05.2004] UCF3#..B,C |
89904-50270 |
US $461.55 |
||
| replacement | |||||
|
89904
|
89904
89904-50530 Transmitter Sub-Assy, Electrical Key[07.2003 - 05.2004] UCF3#..B,C |
89904-50530 |
US $461.55 |
||
|
89904
|
89904
89904-50271 Transmitter Sub-Assy, Electrical Key[05.2004 - 09.2004] UCF3#..B,C |
89904-50271 |
US $461.55 |
||
| replacement | |||||
|
89904
|
89904
89904-50530 Transmitter Sub-Assy, Electrical Key[05.2004 - 09.2004] UCF3#..B,C |
89904-50530 |
US $461.55 |
||
|
89904
|
89904
89904-50530 Transmitter Sub-Assy, Electrical Key[04.2005 -] UCF3#..B,C |
89904-50530 |
US $461.55 |
||
|
89904A
|
89904A
89904-50280 Transmitter Sub-Assy, Electrical Key(Sub Key)[07.2003 - 05.2004] UCF3#..B,C |
89904-50280 |
US $364 |
||
| replacement | |||||
|
89904A
|
89904A
89904-50540 Transmitter Sub-Assy, Electrical Key(Sub Key)[07.2003 - 05.2004] UCF3#..B,C |
89904-50540 |
US $364 |
||
|
89904A
|
89904A
89904-50281 Transmitter Sub-Assy, Electrical Key(Sub Key)[05.2004 - 09.2004] UCF3#..B,C |
89904-50281 |
US $364 |
||
| replacement | |||||
|
89904A
|
89904A
89904-50540 Transmitter Sub-Assy, Electrical Key(Sub Key)[05.2004 - 09.2004] UCF3#..B,C |
89904-50540 |
US $364 |
||
|
89904A
|
89904A
89904-50540 Transmitter Sub-Assy, Electrical Key(Sub Key)[04.2005 -] UCF3#..B,C |
89904-50540 |
US $364 |
||
|
89994A
|
89994A
89994-50300 Transmitter, Electrical Key(Cut Key)[07.2003 - 05.2004] UCF3#..B,C |
89994-50300 |
US $608.61 |
||
| replacement | |||||
|
89994A
|
89994A
89994-50660 Transmitter, Electrical Key(Cut Key)[07.2003 - 05.2004] UCF3#..B,C |
89994-50660 |
US $632.80 |
||
|
89994A
|
89994A
89994-50301 Transmitter, Electrical Key(Cut Key)[05.2004 - 09.2004] UCF3#..B,C |
89994-50301 |
US $608.61 |
||
| replacement | |||||
|
89994A
|
89994A
89994-50660 Transmitter, Electrical Key(Cut Key)[05.2004 - 09.2004] UCF3#..B,C |
89994-50660 |
US $632.80 |
||
|
89994A
|
89994A
89994-50660 Transmitter, Electrical Key(Cut Key)[04.2005 -] UCF3#..B,C |
89994-50660 |
US $632.80 |
||
|
89995A
|
89995A
89995-50300 Transmitter, Electrical Key Sub(Cut Key)[07.2003 - 04.2005] UCF3#..B,C |
89995-50300 |
US $513.97 |
||
| replacement | |||||
|
89995A
|
89995A
89995-50420 Transmitter, Electrical Key Sub(Cut Key)[07.2003 - 04.2005] UCF3#..B,C |
89995-50420 |
US $513.97 |
||
|
89995A
|
89995A
89995-50420 Transmitter, Electrical Key Sub(Cut Key)[04.2005 -] UCF3#..B,C |
89995-50420 |
US $513.97 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9356054014
|
9356054014
93560-54014 SCREW |
93560-54014 |
from US $0.96 |
||
|
F1672
|
F1672
F1672-50020 Cover, Door Control Transmitter, No.1DOOR CONTROL TRANSMITTER, NO.1 [07.2003 - 03.2005] UCF3#..B,C |
F1672-50020 |
US $6.84 |
||
|
F1681
|
F1681
F1681-50010 Cover, Door Control Transmitter BatteryDOOR CONTROL TRANSMITTER BATTERY [07.2003 - 09.2004] UCF3#..B,C |
F1681-50010 |
US $4.80 |
||
