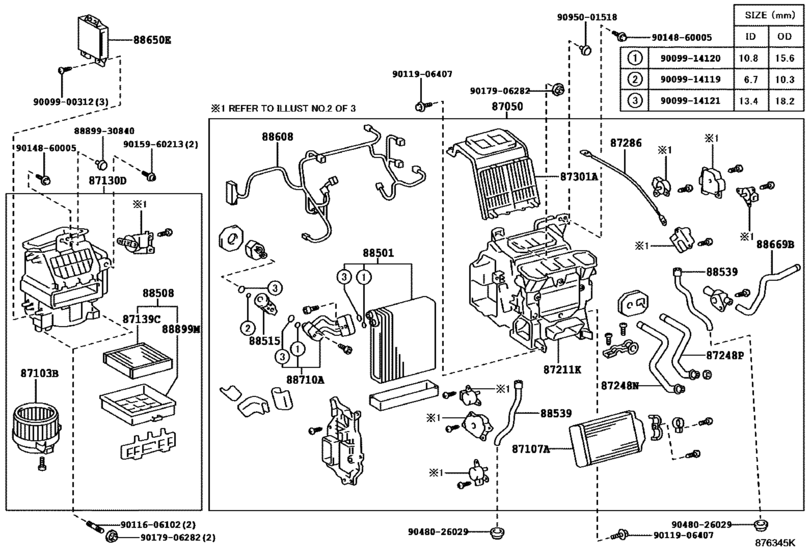

Heating & Air Conditioning - Cooler Unit ([07.2003 - ] ﾌﾛﾝﾄ (0307- )) Diagram Toyota CELSIOR
- Year
- 2003 - 2006
- Sales region
- Japan
- Frame
- UCF31
- grade
- C
- ENGINE
- 3UZFE
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-50110 Radiator Assy, Air Conditioner[07.2003 -] UCF3# |
87050-50110 |
US $2,169.44 |
||
|
87103B
|
87103B
87103-50080
Motor Sub-Assy, Blower W/fan
[07.2003 -] UCF3# |
87103-50080 |
— | ||
|
87107A
|
87107A
87107-50030
Unit Sub-Assy, Heater Radiator
[07.2003 -] UCF3# |
87107-50030 |
— | ||
|
87130D
|
87130D
87130-50080
Blower Assy
[07.2003 -] UCF3# |
87130-50080 |
— | ||
|
87139C
|
87139C
87139-50030 Filter, Clean Air[07.2003 -] UCF3# |
87139-50030 |
from US $85.84 |
||
|
87211K
|
87211K
87201-50040
Duct, Air
[07.2003 -] UCF3# |
87201-50040 |
— | ||
|
87248N
|
87248N
87156-50090
Pipe, Heater Water Inlet
[07.2003 -] UCF3# |
87156-50090 |
— | ||
|
87248P
|
87248P
87156-50080
Pipe, Heater Water Outlet
[07.2003 -] UCF3# |
87156-50080 |
— | ||
|
87286
|
87286
87286-50040
Cable, Control
[07.2003 -] UCF3# |
87286-50040 |
— | ||
|
87301A
|
87301A
87301-50020
Case Sub-Assy, Heater
[07.2003 -] UCF3# |
87301-50020 |
— | ||
|
88501
|
88501
88501-50211
Evaporator Sub-Assy, Cooler, No.1
[07.2003 -] UCF3# |
88501-50211 |
— | ||
|
88508
|
88508
88508-50060 Filter Sub-Assy, Clean Air[07.2003 -] UCF3# |
88508-50060 |
from US $88.82 |
||
|
88515
|
88515
88515-28180 Valve, Cooler Expansion[07.2005 -] UCF3# |
88515-28180 |
from US $131.94 |
||
|
88515
|
88515
88515-50160 Valve, Cooler Expansion[07.2003 - 06.2005] UCF3# |
88515-50160 |
US $136.86 |
||
| replacement | |||||
|
88515
|
88515
88515-28180 Valve, Cooler Expansion[07.2003 - 06.2005] UCF3# |
88515-28180 |
from US $131.94 |
||
|
88539
|
88539
88539-50060
Hose, Cooler Unit Drain, No.1
[07.2003 -] UCF3# |
88539-50060 |
— | ||
|
88608
|
88608
88608-50261
Harness Sub-Assy, Wiring Air Conditioner
[07.2003 -] UCF3# |
88608-50261 |
— | ||
|
88650E
|
88650E
88650-50430
Amplifier Assy, Air Conditioner, No.1
[07.2003 - 09.2003] UCF3# |
88650-50430 |
— | ||
| replacement | |||||
|
88650E
|
88650E
88650-50431
Amplifier Assy, Air Conditioner, No.1
[07.2003 - 09.2003] UCF3# |
88650-50431 |
— | ||
|
88650E
|
88650E
88650-50431
Amplifier Assy, Air Conditioner, No.1
[09.2003 - 08.2006] UCF3# |
88650-50431 |
— | ||
|
88669B
|
88669B
88669-50060
Hose, Cooler Air
[07.2003 -] UCF3# |
88669-50060 |
— | ||
|
88710A
|
88710A
88710-50720 Tube Assy, Air Conditioner[07.2003 -] UCF3# |
88710-50720 |
US $131.04 |
||
|
88899M
|
88899M
88899-50110 Plate, Cover(For Air Filter)[07.2003 - 08.2006] UCF3# |
88899-50110 |
US $14.80 |
||
|
8889930840
|
8889930840
88899-30840
Plate, Cover
|
88899-30840 |
— | ||
|
9009900312
|
9009900312
90099-00312
New Genuine Part
|
90099-00312 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $2.27 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.89 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $2.18 |
||
|
9011606102
|
9011606102
90116-06102 New Genuine Part |
90116-06102 |
US $2.48 |
||
|
9011906407
|
9011906407
90119-06407 New Genuine Part |
90119-06407 |
US $1.92 |
||
|
9014860005
|
9014860005
90148-60005 New Genuine Part |
90148-60005 |
US $1.46 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.28 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
|
9048026029
|
9048026029
90480-26029
Grommet (For Cooler Unit Drain Hose)
|
90480-26029 |
— | ||
|
9095001518
|
9095001518
90950-01518 PLUG |
90950-01518 |
from US $1.23 |
||
