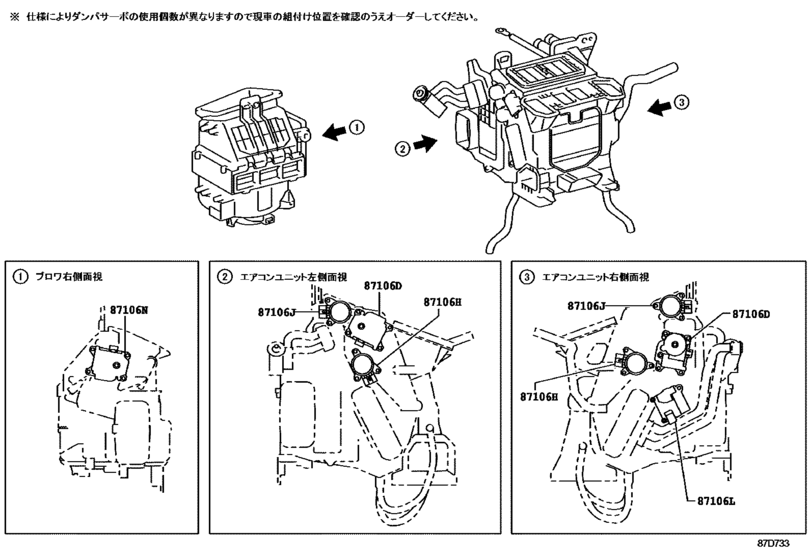

Heating & Air Conditioning - Cooler Unit ([07.2003 - ] ﾌﾛﾝﾄ ﾀﾞﾝﾊﾟｻｰﾎﾞ (0307- )) Diagram Toyota CELSIOR
- Year
- 2003 - 2006
- Sales region
- Japan
- Frame
- UCF31
- grade
- C
- ENGINE
- 3UZFE
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87106D
|
87106D
87106-50290
Servo Sub-Assy, Damper, No.1
[07.2003 -] UCF3# 右側 |
87106-50290 |
— | ||
|
87106D
|
87106D
87106-50300
Servo Sub-Assy, Damper, No.1
[07.2003 -] UCF3# 左側 |
87106-50300 |
— | ||
|
87106H
|
87106H
87106-50160
Servo Sub-Assy, Damper(For Airmix)
[07.2003 -] UCF3# 左側 |
87106-50160 |
— | ||
|
87106H
|
87106H
87106-50170
Servo Sub-Assy, Damper(For Airmix)
[07.2003 -] UCF3# 右側 |
87106-50170 |
— | ||
|
87106J
|
87106J
87106-50160
Servo Sub-Assy, Damper(For Airmix)
[07.2003 -] UCF3# 左側 |
87106-50160 |
— | ||
|
87106J
|
87106J
87106-50170
Servo Sub-Assy, Damper(For Airmix)
[07.2003 -] UCF3# 右側 |
87106-50170 |
— | ||
|
87106L
|
87106L
87106-50330
Servo Sub-Assy, Damper
[07.2003 -] UCF3# |
87106-50330 |
— | ||
|
87106N
|
87106N
87106-50350
Servo Sub-Assy, Damper(For Recirculation)
[07.2003 -] UCF3# |
87106-50350 |
— |
