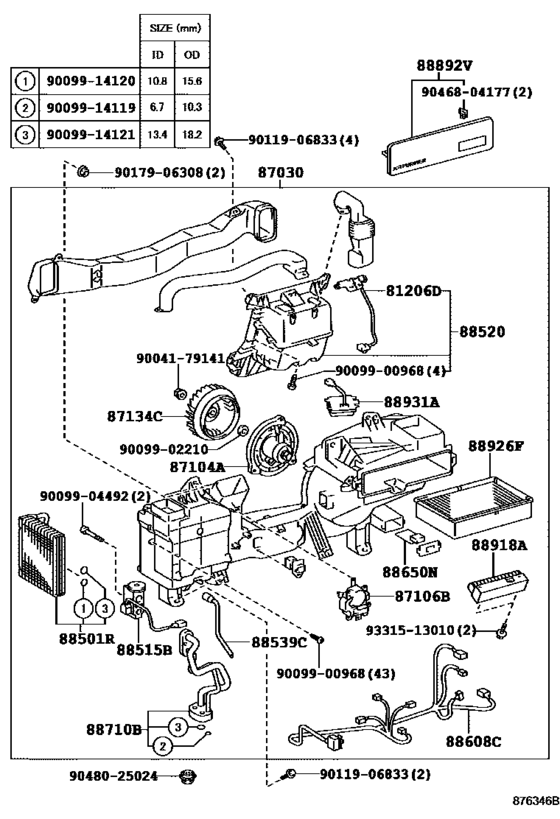

Heating & Air Conditioning - Cooler Unit ([07.2003 - ] ﾘﾔ (0307- )) Diagram Toyota CELSIOR
- Year
- 2003 - 2006
- Sales region
- Japan
- Frame
- UCF31
- grade
- C
- ENGINE
- 3UZFE
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81206D
|
81206D
81206-50030
Lamp Sub-Assy, Cooling Box
[07.2003 -] UCF31 |
81206-50030 |
— | ||
|
87030
|
87030
87030-50030
Blower Assy, Air Conditioner
[07.2003 -] UCF31 |
87030-50030 |
— | ||
|
87104A
|
87104A
87104-30520 Motor Sub-Assy, Blower[07.2003 -] UCF31 |
87104-30520 |
US $161.62 |
||
|
87106B
|
87106B
87106-30420
Servo Sub-Assy, Damper(For Cooling Unit)
[07.2003 -] UCF31 |
87106-30420 |
— | ||
|
87134C
|
87134C
87134-30090
Fan, Blower(For Cooling Unit)
[07.2003 -] UCF31 |
87134-30090 |
— | ||
|
88501R
|
88501R
88501-3A041
Evaporator Sub-Assy (Rear)
[07.2003 -] UCF31 |
88501-3A041 |
— | ||
|
88515B
|
88515B
88515-50170 Valve, Rear Cooling Unit Expansion[07.2003 -] UCF31 |
88515-50170 |
US $144.14 |
||
|
88520
|
88520
88520-50020
Box Assy, Cooling
[07.2003 -] UCF31 |
88520-50020 |
— | ||
|
88539C
|
88539C
88539-50070
Hose, Cooler Unit Drain, No.2
[07.2003 -] UCF31 |
88539-50070 |
— | ||
|
88608C
|
88608C
88608-50320
Harness Sub-Assy, Wiring Air Indicator, No.2
[07.2003 -] UCF31 |
88608-50320 |
— | ||
|
88650N
|
88650N
88650-50340
Amplifier Assy, Air Conditioner
[07.2003 - 08.2006] UCF3# |
88650-50340 |
— | ||
|
88710B
|
88710B
88710-50760 Tube Assy, Air Conditioner[07.2003 -] UCF31 |
88710-50760 |
US $154.34 |
||
|
88892V
|
88892V
88891-30690-C0
Cover, Cooler, No.1
[07.2003 - 08.2006] UCF31 BLACK,TRIM00,07,1#,21,24 |
88891-30690-C0 |
— | ||
|
88918A
|
88918A
88918-22390
Lamp, Air Purifier
[07.2003 -] UCF31 |
88918-22390 |
— | ||
| replacement | |||||
|
88918A
|
88918A
88918-22391
Lamp, Air Purifier
[07.2003 -] UCF31 |
88918-22391 |
— | ||
|
88926F
|
88926F
88508-50080 Filter Sub-Assy, Air[07.2003 -] UCF31 |
88508-50080 |
from US $192.86 |
||
|
88931A
|
88931A
88931-50040
Sensor, Smoke
[07.2003 -] UCF31 |
88931-50040 |
— | ||
|
9004179141
|
9004179141
90041-79141
New Genuine Part
|
90041-79141 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009902210
|
9009902210
90099-02210 New Genuine Part |
90099-02210 |
US $0.87 |
||
|
9009904492
|
9009904492
90099-04492 BOLT |
90099-04492 |
US $2.06 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $2.27 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.72 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.22 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.79 |
||
|
9011906833
|
9011906833
90119-06833 BOLT WWASHER |
90119-06833 |
US $0.44 |
||
|
9017906308
|
9017906308
90179-06308 NUT |
90179-06308 |
US $1.28 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9048025024
|
9048025024
90480-25024
New Genuine Part
|
90480-25024 |
— | ||
|
9331513010
|
9331513010
93315-13010 New Genuine Part |
93315-13010 |
US $1.44 |
||
