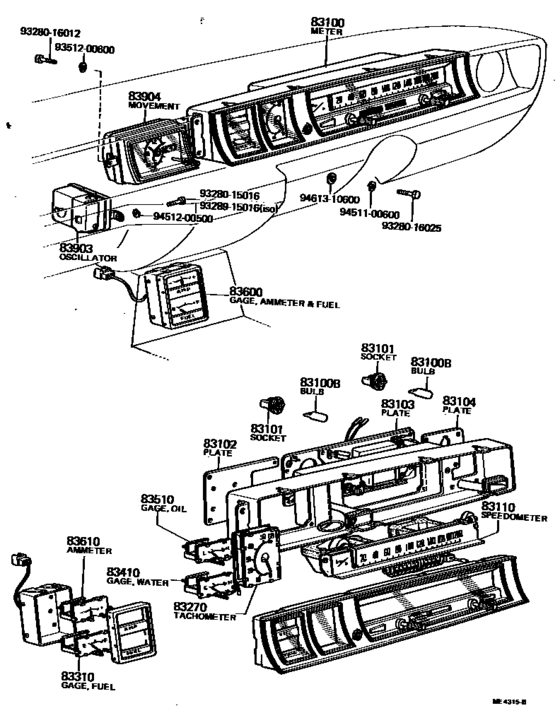

Meter ([11.1967 - 09.1971] (6711-7109)A) Diagram Toyota CENTURY
- Year
- 1967 - 1971
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- MTM
- From
- 11.1967
- To
- 09.1971
- Gear Shift Type
- 4F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83100-40040
Meter Assy, Combination
[11.1967 - 05.1968] VG20..A |
83100-40040 |
— | ||
|
83100
|
83100
83100-40041 Meter Assy, Combination[05.1968 - 09.1969] VG20..A |
83100-40041 |
US $2,096.64 |
||
| replacement | |||||
|
83100
|
83100
83100-40043
Meter Assy, Combination
[05.1968 - 09.1969] VG20..A |
83100-40043 |
— | ||
|
83100
|
83100
83100-40042
Meter Assy, Combination
[09.1969 - 07.1971] VG20..A |
83100-40042 |
— | ||
| replacement | |||||
|
83100
|
83100
83100-40043
Meter Assy, Combination
[09.1969 - 07.1971] VG20..A |
83100-40043 |
— | ||
|
83100
|
83100
83100-40043
Meter Assy, Combination
[07.1971 - 09.1971] VG20..A |
83100-40043 |
— | ||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[11.1967 - 09.1982] VG2#,3# １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[11.1967 - 09.1982] VG2#,3# １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-12010
Socket, Ash Receptacle Lamp
[11.1967 - 09.1982] VG2#,3# |
83101-12010 |
— | ||
|
83102
|
83102
83102-40040
Plate Sub-Assy, Combination Meter Circuit, No.1
[11.1967 - 09.1971] VG20..A |
83102-40040 |
— | ||
|
83103
|
83103
83102-40031
Plate Sub-Assy, Combination Meter Circuit, No.2
[11.1967 - 05.1968] VG20 |
83102-40031 |
— | ||
|
83103
|
83103
83102-40032
Plate Sub-Assy, Combination Meter Circuit, No.2
[05.1968 - 09.1972] VG20 |
83102-40032 |
— | ||
|
83104
|
83104
83102-40010
Plate Sub-Assy, Combination Meter Circuit, No.3
[11.1967 - 09.1982] VG2#,3# |
83102-40010 |
— | ||
|
83110
|
83110
83110-40010 Speedometer Assy[11.1967 - 07.1971] VG20 |
83110-40010 |
US $313.04 |
||
| replacement | |||||
|
83110
|
83110
83110-40013 Speedometer Assy[11.1967 - 07.1971] VG20 |
83110-40013 |
US $1,010.46 |
||
|
83110
|
83110
83110-40011 Speedometer Assy[07.1971 - 09.1972] VG20 |
83110-40011 |
US $313.04 |
||
| replacement | |||||
|
83110
|
83110
83110-40013 Speedometer Assy[07.1971 - 09.1972] VG20 |
83110-40013 |
US $1,010.46 |
||
|
83270
|
83270
83270-40010
Tachometer Assy, Engine
[11.1967 - 09.1971] VG20..A |
83270-40010 |
— | ||
|
83310
|
83310
83310-40020
Gage Assy, Fuel Receiver
[11.1967 - 09.1971] VG20..A |
83310-40020 |
— | ||
|
83410
|
83410
83410-40020 Gage Assy, Water Temperature Receiver[11.1967 - 09.1969] VG20 |
83410-40020 |
US $67.27 |
||
| replacement | |||||
|
83410
|
83410
83410-40021 Gage Assy, Water Temperature Receiver[11.1967 - 09.1969] VG20 |
83410-40021 |
US $67.56 |
||
|
83410
|
83410
83410-40021 Gage Assy, Water Temperature Receiver[09.1969 - 09.1982] VG2#,3# |
83410-40021 |
US $67.56 |
||
|
83510
|
83510
83510-40020 Gage Assy, Oil Pressure ReceiverOIL PRESSURE RECEIVER [11.1967 - 09.1982] VG2#,3# |
83510-40020 |
US $339.25 |
||
|
83600
|
83600
83600-40010
Gage Assy, Ammeter And Oil Pressure Or Fuel Receiver
[11.1967 - 09.1971] VG20..A |
83600-40010 |
— | ||
|
83610
|
83610
83610-40010
Ammeter Assy
[11.1967 - 02.1973] VG20 |
83610-40010 |
— | ||
|
83903
|
83903
83903-40010 Oscillator Sub-Assy, Clock[11.1967 - 12.1968] VG20 |
83903-40010 |
US $352.35 |
||
| replacements | |||||
|
83903
|
83903
83903-40011
Oscillator Sub-Assy, Clock
[11.1967 - 12.1968] VG20 |
83903-40011 |
— | ||
|
83903
|
83903
93289-15016 New Genuine Part[11.1967 - 12.1968] VG20 |
93289-15016 |
US $1.60 |
||
|
83903
|
83903
83903-40011
Oscillator Sub-Assy, Clock
[12.1968 - 05.1974] VG2# |
83903-40011 |
— | ||
|
83904
|
83904
83904-40010
Movement Sub-Assy, Clock
[11.1967 - 05.1974] VG2# |
83904-40010 |
— | ||
|
9328015016
|
9328015016
93280-15016 New Genuine Part |
93280-15016 |
US $2.18 |
||
|
9328016012
|
9328016012
93280-16012 New Genuine Part |
93280-16012 |
US $2.18 |
||
|
9328016025
|
9328016025
93280-16025
New Genuine Part
|
93280-16025 |
— | ||
|
9328915016
|
9328915016
93289-15016 New Genuine Part |
93289-15016 |
US $1.60 |
||
|
9351200600
|
9351200600
93512-00600
New Genuine Part
|
93512-00600 |
— | ||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451200500
|
9451200500
94512-00500 New Genuine Part |
94512-00500 |
US $1.89 |
||
|
9461310600
|
9461310600
94613-10600 New Genuine Part |
94613-10600 |
US $2.72 |
||
