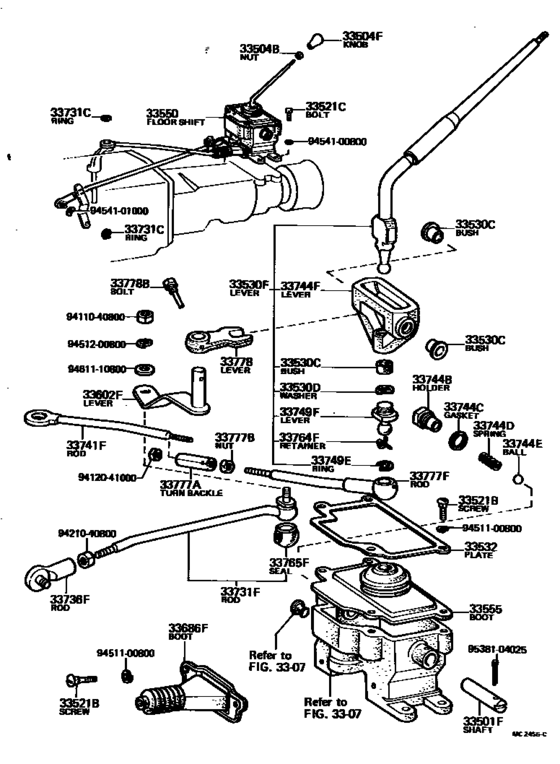

Shift Lever & Retainer ([03.1969 - 12.1969] (6903-6912)A) Diagram Toyota CENTURY
- Year
- 1967 - 1971
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- MTM
- From
- 11.1967
- To
- 09.1971
- Gear Shift Type
- 4F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501F
|
33501F
33511-40040
Shaft Sub-Assy, Control (For Floor Shift)
[11.1967 - 12.1969] VG20..A |
33511-40040 |
— | ||
|
33504B
|
33504B
90170-08086
Nut, Hexagon
[11.1967 - 09.1971] VG20..A |
90170-08086 |
— | ||
|
33504F
|
33504F
33542-40020
Knob Sub-Assy, Shift Lever
[11.1967 - 09.1971] VG20..A |
33542-40020 |
— | ||
|
33521B
|
33521B
90149-50006
Screw (For Shift Lever Housing)
[11.1967 - 11.1968] VG20..A |
90149-50006 |
— | ||
|
33521B
|
33521B
90149-50007
Screw (For Shift Lever Housing)
[11.1968 - 12.1969] VG20..A |
90149-50007 |
— | ||
|
33521C
|
33521C
90109-06025
Bolt (For Shift Lever Housing)
[11.1967 - 03.1969] VG20..A |
90109-06025 |
— | ||
|
33521C
|
33521C
91111-40825
Bolt(For Clutch Master Cylinder Setting)
[03.1969 - 12.1969] VG20..A |
91111-40825 |
— | ||
| replacement | |||||
|
33521C
|
33521C
91111-50825 Bolt(For Clutch Master Cylinder Setting)[03.1969 - 12.1969] VG20..A |
91111-50825 |
US $3.04 |
||
|
33530C
|
33530C
33548-40010
Bush (For Shift Lever)
[11.1967 - 12.1969] VG20..A OD=16.5,L=11 |
33548-40010 |
— | ||
|
33530C
|
33530C
90386-13089
Bush (For Shift Lever)
[11.1967 - 12.1969] VG20..A ID=13,L=11.5 |
90386-13089 |
— | ||
|
33530D
|
33530D
90206-09047
Washer, Wave (For Shift Lever)
[11.1967 - 12.1969] VG20..A |
90206-09047 |
— | ||
|
33530F
|
33530F
33503-40010
Lever Assy, Shift (For Floor Shift)
[11.1967 - 06.1968] VG20..A LWR |
33503-40010 |
— | ||
|
33530F
|
33530F
33530-40010
Lever Assy, Shift (For Floor Shift)
[06.1968 - 12.1969] VG20..A |
33530-40010 |
— | ||
|
33530F
|
33530F
33530-40011
Lever Assy, Shift (For Floor Shift)
[12.1969 - 09.1971] VG20..A |
33530-40011 |
— | ||
|
33530F
|
33530F
33541-40030 Lever Assy, Shift (For Floor Shift)[11.1967 - 06.1968] VG20..A UPR |
33541-40030 |
US $65.81 |
||
| replacement | |||||
|
33530F
|
33530F
33541-40031
Lever Assy, Shift (For Floor Shift)
[11.1967 - 06.1968] VG20..A UPR |
33541-40031 |
— | ||
|
33532
|
33532
33532-40010
Plate, Dust Boot
[11.1967 - 12.1969] VG20..A |
33532-40010 |
— | ||
|
33550
|
33550
33550-40010
Floor Shift Assy, Transmission
[11.1967 - 03.1969] VG20..A |
33550-40010 |
— | ||
|
33550
|
33550
33550-40011
Floor Shift Assy, Transmission
[03.1969 - 12.1969] VG20..A |
33550-40011 |
— | ||
|
33555
|
33555
33555-30030
Boot, Shift Lever
[12.1969 - 09.1971] VG20..A |
33555-30030 |
— | ||
|
33555
|
33555
33555-40020
Boot, Shift Lever
[11.1967 - 12.1969] VG20..A |
33555-40020 |
— | ||
|
33602F
|
33602F
33602-40010
Lever Sub-Assy, Select (For Floor Shift)
[11.1967 - 12.1969] VG20..A |
33602-40010 |
— | ||
|
33686F
|
33686F
33555-40010
Boot, Control Shaft Dust (For Floor Shift Retainer)
[11.1967 - 12.1969] VG20..A |
33555-40010 |
— | ||
|
33731C
|
33731C
90520-09081 Ring, Snap(For Over Center Adjusting Rod)[11.1967 - 12.1969] VG20..A |
90520-09081 |
US $2.33 |
||
| replacement | |||||
|
33731C
|
33731C
96150-01000 Ring, Snap(For Over Center Adjusting Rod)[11.1967 - 12.1969] VG20..A |
96150-01000 |
US $1.60 |
||
|
33731F
|
33731F
33701-40010
Rod, Gear Selecting, No.1 (For Floor Shift)
[11.1967 - 12.1969] VG20..A |
33701-40010 |
— | ||
|
33736F
|
33736F
33736-40010
Rod, Gear Selecting, No.2(For Floor Shift)
[11.1967 - 12.1969] VG20..A |
33736-40010 |
— | ||
|
33741F
|
33741F
33741-40020
Rod, Gear Shifting, No.1 (For Floor Shift)
[11.1967 - 03.1969] VG20..A |
33741-40020 |
— | ||
|
33741F
|
33741F
33741-40021
Rod, Gear Shifting, No.1 (For Floor Shift)
[03.1969 - 12.1969] VG20..A |
33741-40021 |
— | ||
|
33744B
|
33744B
33293-30010 Holder, Reverse Restrict Ball[03.1969 - 12.1969] VG20..A |
33293-30010 |
US $10.48 |
||
|
33744C
|
33744C
90430-18165 Gasket(For Water Hose Joint)[03.1969 - 12.1969] VG20..A |
90430-18165 |
US $3.49 |
||
|
33744D
|
33744D
90501-14485
Spring(For Gear Shifting Lever)
[03.1969 - 12.1969] VG20..A WD=1.4,CW=9.5 |
90501-14485 |
— | ||
|
33744D
|
33744D
90501-16041
Spring, Compression (For Reverse Restrict Ball)
[03.1969 - 12.1969] VG20..A WD=1.6,CW=8.0 |
90501-16041 |
— | ||
|
33744E
|
33744E
90360-10003 Ball(For Transmission Oil Pump Cover)[03.1969 - 12.1969] VG20..A |
90360-10003 |
from US $1.29 |
||
|
33744F
|
33744F
33745-40010 Lever, Gear Shifting, No.1 (For Floor Shift)[06.1968 - 03.1969] VG20..A |
33745-40010 |
US $976.98 |
||
| replacement | |||||
|
33744F
|
33744F
33530-40010
Lever Assy, Shift (For Floor Shift)
[06.1968 - 03.1969] VG20..A |
33530-40010 |
— | ||
|
33744F
|
33744F
33745-40011
Lever, Gear Shifting, No.1 (For Floor Shift)
[03.1969 - 12.1969] VG20..A |
33745-40011 |
— | ||
|
33749E
|
33749E
90521-14031 Ring, Snap (For Gear Shifting No.3 Lever)SNAP (FOR GEAR SHIFTING NO.3 LEVER) [03.1969 - 12.1969] VG20..A |
90521-14031 |
US $2.04 |
||
|
33749F
|
33749F
33749-40010
Lever, Gear Shift, No.3 (For Floor Shift)
[03.1969 - 12.1969] VG20..A |
33749-40010 |
— | ||
| replacement | |||||
|
33749F
|
33749F
33503-40010
Lever Assy, Shift (For Floor Shift)
[03.1969 - 12.1969] VG20..A |
33503-40010 |
— | ||
|
33764F
|
33764F
33764-35010
Retainer, Connecting Rod End Snap Ring (For Floor Shift)
[03.1969 - 12.1969] VG20..A |
33764-35010 |
— | ||
|
33765F
|
33765F
33765-35010 Seal, Connecting Rod End Dust (For Column Shift)[11.1967 - 12.1969] VG20..A |
33765-35010 |
US $3.35 |
||
| replacement | |||||
|
33765F
|
33765F
33765-35011
Seal, Connecting Rod End Dust (For Column Shift)
[11.1967 - 12.1969] VG20..A |
33765-35011 |
— | ||
|
33777A
|
33777A
90587-10013
Turnbuckle(For Gear Shift Rod)
[03.1969 - 12.1969] VG20..A |
90587-10013 |
— | ||
|
33777B
|
33777B
90170-10067 Nut, Hexagon(For Gear Shift Rod)[03.1969 - 12.1969] VG20..A |
90170-10067 |
US $2.56 |
||
|
33777F
|
33777F
33704-40010
Rod, Gear Shift(For Floor Shift)
[03.1969 - 12.1969] VG20..A |
33704-40010 |
— | ||
|
33778
|
33778
33778-40020
Lever, Cross Shaft, No.1
[11.1967 - 12.1969] VG20..A |
33778-40020 |
— | ||
|
33778B
|
33778B
33454-40010
Bolt(For Cross Shaft Lever, No.1)
[11.1967 - 12.1969] VG20..A |
33454-40010 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9421040800
|
9421040800
94210-40800
New Genuine Part
|
94210-40800 |
— | ||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
|
9454100800
|
9454100800
94541-00800 New Genuine Part |
94541-00800 |
US $1.60 |
||
|
9454101000
|
9454101000
94541-01000 New Genuine Part |
94541-01000 |
US $2.72 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.96 |
||
|
9538104025
|
9538104025
95381-04025 PIN |
95381-04025 |
US $2.08 |
||
