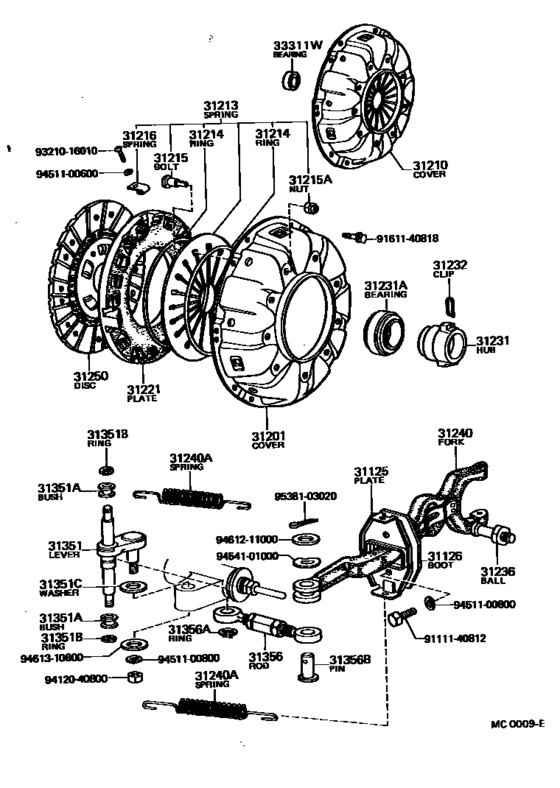

Clutch & Release Fork ([11.1967 - 02.1973] (6711-7302)MTM) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- MTM
- From
- 11.1967
- To
- 02.1973
- Gear Shift Type
- 3H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31125
|
31125
31125-40010
Plate, Release Fork Boot
[11.1967 - 05.1974] VG2#..MTM |
31125-40010 |
— | ||
|
31126
|
31126
31126-30060
Boot, Clutch Release Fork
[11.1967 - 05.1974] VG2#..MTM |
31126-30060 |
— | ||
|
31201
|
31201
31211-40020
Cover Sub-Assy, Clutch
[11.1967 - 02.1973] VG20..MTM |
31211-40020 |
— | ||
|
31210
|
31210
31210-40021 Cover Assy, Clutch[11.1967 - 02.1970] VG20..MTM |
31210-40021 |
US $279.55 |
||
| replacement | |||||
|
31210
|
31210
31210-40023
Cover Assy, Clutch
[11.1967 - 02.1970] VG20..MTM |
31210-40023 |
— | ||
|
31210
|
31210
31210-40022
Cover Assy, Clutch
[02.1970 - 02.1973] VG20..MTM |
31210-40022 |
— | ||
|
31213
|
31213
31213-49016 Spring, Clutch Diaphragm[11.1967 - 02.1970] VG20..MTM |
31213-49016 |
US $123.76 |
||
| replacement | |||||
|
31213
|
31213
31210-40022
Cover Assy, Clutch
[11.1967 - 02.1970] VG20..MTM |
31210-40022 |
— | ||
|
31213
|
31213
31213-49017
Spring, Clutch Diaphragm
[02.1970 - 11.1970] VG20..MTM |
31213-49017 |
— | ||
| replacement | |||||
|
31213
|
31213
31210-40023
Cover Assy, Clutch
[02.1970 - 11.1970] VG20..MTM |
31210-40023 |
— | ||
|
31213
|
31213
31213-49018
Spring, Clutch Diaphragm
[11.1970 - 02.1973] VG20..MTM |
31213-49018 |
— | ||
| replacement | |||||
|
31213
|
31213
31210-40022
Cover Assy, Clutch
[11.1970 - 02.1973] VG20..MTM |
31210-40022 |
— | ||
|
31214
|
31214
31214-40020
Ring, Clutch Pivot
[11.1967 - 02.1973] VG20..MTM |
31214-40020 |
— | ||
|
31215
|
31215
31215-40021
Bolt, Clutch Diaphragm Spring Set
[11.1967 - 02.1970] VG20..MTM |
31215-40021 |
— | ||
|
31215
|
31215
31215-40022
Bolt, Clutch Diaphragm Spring Set
[02.1970 - 05.1974] VG2#..MTM |
31215-40022 |
— | ||
|
31215A
|
31215A
90179-06006 Nut(For Clutch Diaphragm Spring Setting Bolt)[11.1967 - 05.1974] VG2#..MTM |
90179-06006 |
US $2.04 |
||
|
31216
|
31216
31216-30010
Spring, Clutch Retracting
[11.1967 - 05.1974] VG2#..MTM |
31216-30010 |
— | ||
|
31221
|
31221
31221-40020
Plate, Clutch Pressure
[11.1967 - 02.1970] VG20..MTM |
31221-40020 |
— | ||
|
31221
|
31221
31221-40021
Plate, Clutch Pressure
[02.1970 - 02.1973] VG20..MTM |
31221-40021 |
— | ||
|
31231
|
31231
31231-40010
Hub, Clutch Release Bearing
[11.1967 - 09.1969] VG20..MTM |
31231-40010 |
— | ||
|
31231
|
31231
31231-62010 Hub, Clutch Release Bearing[09.1969 - 05.1974] VG2#..MTM |
31231-62010 |
US $13.98 |
||
|
31231A
|
31231A
90363-38009
Bearing, Ball(For Clutch Release Hub)
[11.1967 - 09.1969] VG20..MTM |
90363-38009 |
— | ||
| replacement | |||||
|
31231A
|
31231A
90363-38084 Bearing, Ball(For Clutch Release Hub)BALL(FOR CLUTCH RELEASE HUB) [11.1967 - 09.1969] VG20..MTM |
90363-38084 |
US $31.01 |
||
|
31231A
|
31231A
90363-40045 Bearing, Ball(For Clutch Release Hub)BALL(FOR CLUTCH RELEASE HUB) [09.1969 - 02.1973] VG20..MTM |
90363-40045 |
US $29.70 |
||
| replacement | |||||
|
31231A
|
31231A
90363-40010 Bearing, Ball(For Clutch Release Hub)[09.1969 - 02.1973] VG20..MTM |
90363-40010 |
US $19.22 |
||
|
31232
|
31232
31232-30010 Clip Or Spring, Release Bearing Hub[11.1967 - 05.1974] VG2#..MTM |
31232-30010 |
US $4.32 |
||
|
31236
|
31236
31236-30020
Ball, Release Fork
[11.1967 - 09.1973] VG2#..MTM |
31236-30020 |
— | ||
|
31240
|
31240
31204-40010
Fork Assy, Clutch Release
[11.1967 - 05.1974] VG2#..MTM |
31204-40010 |
— | ||
|
31240A
|
31240A
90506-24184
Spring, Tension(For Clutch Release Fork Return)
[11.1967 - 02.1973] VG20..MTM |
90506-24184 |
— | ||
|
31250
|
31250
31250-40012 Disc Assy, Clutch[11.1967 - 09.1969] VG20..MTM |
31250-40012 |
US $152.88 |
||
| replacement | |||||
|
31250
|
31250
31250-40030
Disc Assy, Clutch
[11.1967 - 09.1969] VG20..MTM |
31250-40030 |
— | ||
|
31250
|
31250
31250-40013 Disc Assy, Clutch[09.1969 - 02.1973] VG20..MTM |
31250-40013 |
US $164.53 |
||
| replacement | |||||
|
31250
|
31250
31250-35111
Disc Assy, Clutch
[09.1969 - 02.1973] VG20..MTM |
31250-35111 |
— | ||
|
31351
|
31351
31307-40011
Lever, Over Center
[11.1967 - 05.1974] VG2#..MTM |
31307-40011 |
— | ||
|
31351A
|
31351A
90386-06088
Bush(For Over Center Lever)
[11.1967 - 05.1974] VG2#..MTM |
90386-06088 |
— | ||
|
31351B
|
31351B
90523-05006 Ring, E(For Over Center Lever)E(FOR SIDE VENTILATOR DUCT) [11.1967 - 01.1972] VG20..MTM |
90523-05006 |
US $1.89 |
||
|
31351B
|
31351B
96160-00500 Ring, E(For Over Center Lever)[01.1972 - 05.1974] VG2#..B |
96160-00500 |
from US $0.94 |
||
|
31351C
|
31351C
90202-10060 Washer(For Over Center Lever)[11.1967 - 02.1973] VG20..MTM |
90202-10060 |
US $1.31 |
||
|
31356
|
31356
31038-40011
Rod, Over Center Adjusting
[11.1967 - 05.1974] VG2#..MTM |
31038-40011 |
— | ||
|
31356A
|
31356A
90520-09081 Ring, Snap(For Over Center Adjusting Rod)[11.1967 - 02.1971] VG20..MTM |
90520-09081 |
US $2.33 |
||
| replacement | |||||
|
31356A
|
31356A
96150-01000 Ring, Snap(For Over Center Adjusting Rod)[11.1967 - 02.1971] VG20..MTM |
96150-01000 |
US $1.60 |
||
|
31356A
|
31356A
96150-01000 Ring, Snap(For Over Center Adjusting Rod)[02.1971 - 05.1974] VG2#..MTM |
96150-01000 |
US $1.60 |
||
|
31356B
|
31356B
90240-10089
Pin, W/hole(For Over Center Adjusting Rod)
[11.1967 - 05.1974] VG2#..MTM |
90240-10089 |
— | ||
|
33311W
|
33311W
97143-06201
Bearing(For Input Shaft Front)
[11.1967 - 05.1974] VG2#..MTM |
97143-06201 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[11.1967 - 05.1974] VG2#..MTM |
90363-12002 |
— | ||
|
9111140812
|
9111140812
91111-40812 Bolt (for Transmission Control Cable Bracket) |
91111-40812 |
US $2.48 |
||
| replacement | |||||
|
9111140812
|
9111140812
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161140818
|
9161140818
91611-40818
Bolt(for Oil Receiver Pipe)
|
91611-40818 |
— | ||
| replacement | |||||
|
9161140818
|
9161140818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.60 |
||
|
9321016010
|
9321016010
93210-16010 New Genuine Part |
93210-16010 |
US $4.16 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9454101000
|
9454101000
94541-01000 New Genuine Part |
94541-01000 |
US $2.72 |
||
|
9461211000
|
9461211000
94612-11000 Plate, Spring Set |
94612-11000 |
US $2.72 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.78 |
||
