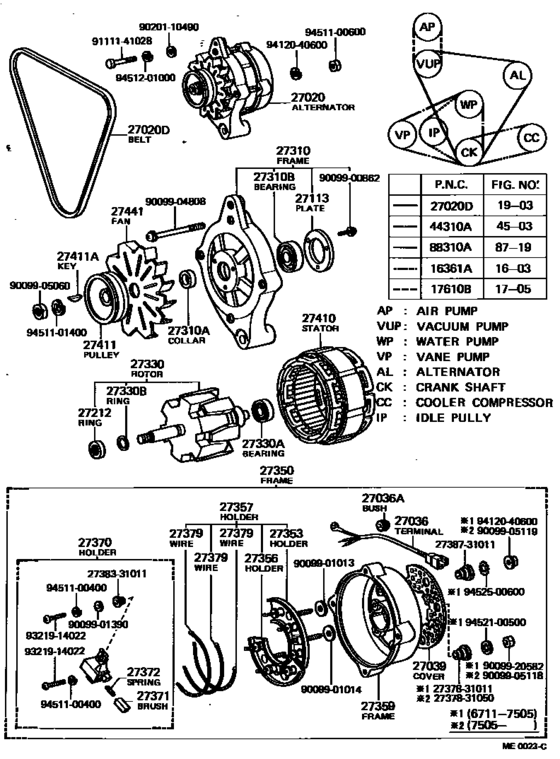

Alternator ([11.1967 - 11.1978] (6711-7811)) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361A
|
16361A
99522-11000 Belt, V(For Fan & Alternator)[11.1967 - 02.1973] 3V..VG20 |
99522-11000 |
US $11.94 |
||
| replacement | |||||
|
16361A
|
16361A
99322-00995
Belt, V(For Fan & Alternator)
[11.1967 - 02.1973] 3V..VG20 |
99322-00995 |
— | ||
|
27020
|
27020
27020-51020 Alternator Assy[11.1967 - 08.1968] 3V..VG20 12V 65A |
27020-51020 |
US $1,437.07 |
||
| replacement | |||||
|
27020
|
27020
27020-51023
Alternator Assy
[11.1967 - 08.1968] 3V..VG20 12V 65A |
27020-51023 |
— | ||
|
27020
|
27020
27020-51021 Alternator Assy[08.1968 - 02.1970] 3V..VG20 12V 80A |
27020-51021 |
US $1,437.07 |
||
| replacement | |||||
|
27020
|
27020
27020-51023
Alternator Assy
[08.1968 - 02.1970] 3V..VG20 12V 80A |
27020-51023 |
— | ||
|
27020
|
27020
27020-51022 Alternator Assy[02.1970 - 05.1975] 3V,4V..VG2# 12V 80A |
27020-51022 |
US $1,437.07 |
||
| replacement | |||||
|
27020
|
27020
27020-51023
Alternator Assy
[02.1970 - 05.1975] 3V,4V..VG2# 12V 80A |
27020-51023 |
— | ||
|
27020D
|
27020D
90916-02029 Belt, Fan(For Alternator)[11.1967 - 05.1975] 3V,4V..VG2# 12V 65A,80A |
90916-02029 |
US $21.11 |
||
| replacement | |||||
|
27020D
|
27020D
99322-01345
Belt, Fan(For Alternator)
[11.1967 - 05.1975] 3V,4V..VG2# 12V 65A,80A |
99322-01345 |
— | ||
|
27036
|
27036
27036-51010
Terminal Sub-Assy, Lead Wire, Alternator
[11.1967 - 02.1970] 3V..VG20 12V 65A,80A |
27036-51010 |
— | ||
| replacement | |||||
|
27036
|
27036
27036-51023
Terminal Sub-Assy, Lead Wire, Alternator
[11.1967 - 02.1970] 3V..VG20 12V 65A,80A |
27036-51023 |
— | ||
|
27036
|
27036
27036-51022
Terminal Sub-Assy, Lead Wire, Alternator
[02.1970 - 05.1975] 3V,4V..VG2# 12V 80A |
27036-51022 |
— | ||
|
27036A
|
27036A
90099-32039
Bush, Cord(For Terminal Lead Wire)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 65A,80A |
90099-32039 |
— | ||
|
27039
|
27039
27039-51022
Cover, Alternator Rear End
[02.1970 - 11.1978] 3V,4V#..VG2#,30 12V 80A |
27039-51022 |
— | ||
|
27113
|
27113
27312-51020
Plate, Bearing Retainer, Alternator
[11.1967 - 05.1975] 3V,4V..VG2# 12V 65A,80A |
27312-51020 |
— | ||
|
27212
|
27212
27333-51020
Ring, Space(For Alternator Rotor)
[11.1967 - 05.1975] 3V,4V..VG2# 12V 65A,80A |
27333-51020 |
— | ||
|
27310
|
27310
27310-51020
Frame Assy, Drive End, Alternator
[11.1967 - 05.1975] 3V,4V..VG2# 12V 65A,80A |
27310-51020 |
— | ||
|
27310A
|
27310A
90099-19203
Collar Or Nut(For Alternator Drive End Frame)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 65A,80A |
90099-19203 |
— | ||
|
27310B
|
27310B
90099-10065 Bearing(For Alternator Drive End Frame)[11.1967 - 05.1975] 3V,4V..VG2# 12V 65A,80A |
90099-10065 |
US $12.81 |
||
| replacement | |||||
|
27310B
|
27310B
90099-10142
Bearing(For Alternator Drive End Frame)
[11.1967 - 05.1975] 3V,4V..VG2# 12V 65A,80A |
90099-10142 |
— | ||
|
27330
|
27330
27330-51020
Rotor Assy, Alternator
[11.1967 - 11.1978] 3V,4V#..VG2#,30 12V 65A,80A |
27330-51020 |
— | ||
|
27330A
|
27330A
90099-10010
Bearing(For Alternator Rotor)
[02.1970 - 05.1975] 3V,4V..VG2# 12V 65A,80A |
90099-10010 |
— | ||
|
27330A
|
27330A
97110-06201
Bearing(For Alternator Rotor)
[11.1967 - 02.1970] 3V..VG20 12V 65A,80A |
97110-06201 |
— | ||
|
27330B
|
27330B
90099-07048
Ring, Snap(For Alternator Rotor)
[11.1967 - 11.1978] 3V,4V#..VG2#,30 12V 65A,80A |
90099-07048 |
— | ||
|
27350
|
27350
27350-51020
Frame Assy, Rectifier End
[11.1967 - 08.1968] 3V..VG20 12V 65A |
27350-51020 |
— | ||
|
27350
|
27350
27350-51021
Frame Assy, Rectifier End
[08.1968 - 02.1970] 3V..VG20 12V 80A |
27350-51021 |
— | ||
|
27350
|
27350
27350-51022
Frame Assy, Rectifier End
[02.1970 - 05.1975] 3V,4V..VG2# 12V 80A |
27350-51022 |
— | ||
|
27353
|
27353
27353-51020
Holder, W/rectifier Positive, Alternator
[11.1967 - 08.1968] 3V..VG20 12V 65A |
27353-51020 |
— | ||
|
27353
|
27353
27353-51021
Holder, W/rectifier Positive, Alternator
[08.1968 - 02.1970] 3V..VG20 12V 80A |
27353-51021 |
— | ||
|
27353
|
27353
27353-51022
Holder, W/rectifier Positive, Alternator
[02.1970 - 05.1975] 3V,4V..VG2# 12V 80A |
27353-51022 |
— | ||
|
27356
|
27356
27356-51020
Holder, W/rectifier Negative, Alternator
[11.1967 - 08.1968] 3V..VG20 12V 65A |
27356-51020 |
— | ||
| replacements | |||||
|
27356
|
27356
90092-20582
New Genuine Part
[11.1967 - 08.1968] 3V..VG20 12V 65A |
90092-20582 |
— | ||
|
27356
|
27356
27356-51021
Holder, W/rectifier Negative, Alternator
[11.1967 - 08.1968] 3V..VG20 12V 65A |
27356-51021 |
— | ||
|
27356
|
27356
27356-51021
Holder, W/rectifier Negative, Alternator
[08.1968 - 02.1970] 3V..VG20 12V 80A |
27356-51021 |
— | ||
|
27356
|
27356
27356-51022
Holder, W/rectifier Negative, Alternator
[02.1970 - 05.1975] 3V,4V..VG2# 12V 80A |
27356-51022 |
— | ||
|
27357
|
27357
27357-51020
Holder, Alternator, W/rectifier
[11.1967 - 08.1968] 3V..VG20 12V 65A |
27357-51020 |
— | ||
| replacements | |||||
|
27357
|
27357
90092-20582
New Genuine Part
[11.1967 - 08.1968] 3V..VG20 12V 65A |
90092-20582 |
— | ||
|
27357
|
27357
27357-51021
Holder, Alternator, W/rectifier
[11.1967 - 08.1968] 3V..VG20 12V 65A |
27357-51021 |
— | ||
|
27357
|
27357
27357-51021
Holder, Alternator, W/rectifier
[08.1968 - 02.1970] 3V..VG20 12V 80A |
27357-51021 |
— | ||
|
27357
|
27357
27357-51022
Holder, Alternator, W/rectifier
[02.1970 - 11.1978] 3V,4V#..VG2#,30 12V 80A |
27357-51022 |
— | ||
|
27359
|
27359
27359-51022
Frame, Alternator Rectifier End
[02.1970 - 11.1978] 3V,4V#..VG2#,30 12V 80A |
27359-51022 |
— | ||
|
27370
|
27370
27370-51011
Holder Assy, Alternator Brush
[11.1967 - 11.1978] 3V,4V#..VG2#,30 12V 65A,80A |
27370-51011 |
— | ||
|
27371
|
27371
27371-31011 Brush, Alternator[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 65A,80A |
27371-31011 |
US $2.80 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 65A,80A |
27372-31011 |
— | ||
|
27379
|
27379
27379-51020
Wire, Alternator Lead
[11.1967 - 02.1970] 3V..VG20 12V 65A,80A |
27379-51020 |
— | ||
|
27410
|
27410
27410-51020
Stator Assy, Alternator
[11.1967 - 02.1970] 3V..VG20 12V 65A,80A |
27410-51020 |
— | ||
|
27410
|
27410
27410-51022
Stator Assy, Alternator
[02.1970 - 11.1978] 3V,4V#..VG2#,30 12V 80A |
27410-51022 |
— | ||
|
27411
|
27411
27411-51020
Pulley, Alternator
[11.1967 - 08.1968] 3V..VG20 12V 65A |
27411-51020 |
— | ||
|
27411
|
27411
27411-51021
Pulley, Alternator
[08.1968 - 02.1970] 3V..VG20 12V 80A |
27411-51021 |
— | ||
|
27411
|
27411
27411-51022
Pulley, Alternator
[02.1970 - 09.1982] 3V,4V#..VG2#,3# 12V 80A |
27411-51022 |
— | ||
|
27411A
|
27411A
90099-00405
Key(For Alternator Pulley)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 65A,80A |
90099-00405 |
— | ||
| replacement | |||||
|
27411A
|
27411A
95161-10413
Key(For Alternator Pulley)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 65A,80A |
95161-10413 |
— | ||
|
27441
|
27441
27441-51020
Fan, Alternator
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 65A,80A |
27441-51020 |
— | ||
|
44310A
|
44310A
99522-11164 Belt, V(For Vane Pump)[11.1967 - 02.1973] VG20 |
99522-11164 |
US $12.96 |
||
| replacement | |||||
|
44310A
|
44310A
99322-01155
Belt, V(For Air Pump)
[11.1967 - 02.1973] VG20 |
99322-01155 |
— | ||
|
88310A
|
88310A
99523-10875 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1[11.1967 - 06.1969] VG20 |
99523-10875 |
US $18.78 |
||
| replacement | |||||
|
88310A
|
88310A
99323-00890
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[11.1967 - 06.1969] VG20 |
99323-00890 |
— | ||
|
88310A
|
88310A
99523-10894 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1[06.1969 - 11.1978] VG2#,30 |
99523-10894 |
US $18.78 |
||
| replacement | |||||
|
88310A
|
88310A
99323-00890
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[06.1969 - 11.1978] VG2#,30 |
99323-00890 |
— | ||
|
2737831011
|
2737831011
27378-31011
Insulator, Alternator, No.1
|
27378-31011 |
— | ||
|
2737831050
|
2737831050
27378-31050
Insulator, Alternator, No.1
|
27378-31050 |
— | ||
|
2738331011
|
2738331011
27383-31011
Washer, Alternater Terminal Insulator, No.1
|
27383-31011 |
— | ||
|
2738731011
|
2738731011
27387-31011
Insulator, Terminal
|
27387-31011 |
— | ||
|
9009900862
|
9009900862
90099-00862
New Genuine Part
|
90099-00862 |
— | ||
|
9009901013
|
9009901013
90099-01013
New Genuine Part
|
90099-01013 |
— | ||
| replacement | |||||
|
9009901013
|
9009901013
90099-02310
New Genuine Part
|
90099-02310 |
— | ||
|
9009901014
|
9009901014
90099-01014
New Genuine Part
|
90099-01014 |
— | ||
|
9009901390
|
9009901390
90099-01390
New Genuine Part
|
90099-01390 |
— | ||
|
9009904808
|
9009904808
90099-04808
New Genuine Part
|
90099-04808 |
— | ||
|
9009905060
|
9009905060
90099-05060
Collar Or Nut(For Alternator Drive End Frame)
|
90099-05060 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009920582
|
9009920582
90099-20582
New Genuine Part
|
90099-20582 |
— | ||
| replacement | |||||
|
9009920582
|
9009920582
90092-20582
New Genuine Part
|
90092-20582 |
— | ||
|
9020110490
|
9020110490
90201-10490 Washer, Plate(For Distributor Drive Gear) |
90201-10490 |
US $2.33 |
||
|
9111141028
|
9111141028
91111-41028 New Genuine Part |
91111-41028 |
US $2.77 |
||
| replacement | |||||
|
9111141028
|
9111141028
91111-51028 New Genuine Part |
91111-51028 |
US $3.20 |
||
|
9321914022
|
9321914022
93219-14022
New Genuine Part
|
93219-14022 |
— | ||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $2.72 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9452100500
|
9452100500
94521-00500
New Genuine Part
|
94521-00500 |
— | ||
|
9452500600
|
9452500600
94525-00600 New Genuine Part |
94525-00600 |
US $2.18 |
||
