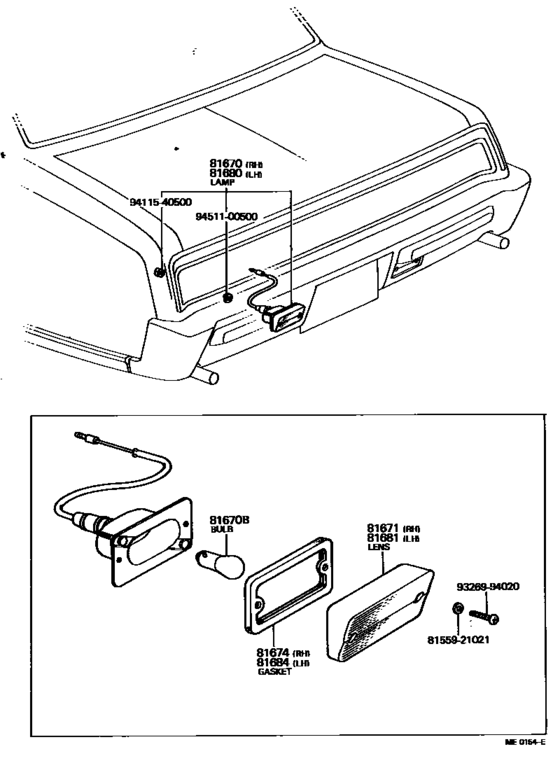

Back Up Lamp ([11.1967 - ] (6711- )) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81670
|
81670
81670-49015 Lamp Assy, Back-Up, RhBACK-UP, RH [11.1967 - 09.1982] VG2#,3# |
81670-49015 |
US $42.81 |
||
|
81670B
|
81670B
99132-11230
Bulb, Fog Lamp
[11.1971 - 09.1982] VG2#,3# １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
|
81670B
|
81670B
99132-11250 Bulb(For Back-Up Lamp)[11.1967 - 11.1971] VG20 12V 25W |
99132-11250 |
US $2.48 |
||
| replacement | |||||
|
81670B
|
81670B
99132-11230
Bulb, Fog Lamp
[11.1967 - 11.1971] VG20 12V 25W |
99132-11230 |
— | ||
|
81671
|
81671
81671-40020 Lens, Back-Up Lamp, RhBACK-UP LAMP, RH [11.1967 - 09.1982] VG2#,3# |
81671-40020 |
US $12.67 |
||
|
81674
|
81674
81674-40020
Gasket, Back-Up Lamp Body, Rh
[11.1967 - 09.1982] VG2#,3# |
81674-40020 |
— | ||
|
81680
|
81680
81670-49015 Lamp Assy, Back-Up, RhBACK-UP, RH [11.1967 - 09.1982] VG2#,3# |
81670-49015 |
US $42.81 |
||
|
81681
|
81681
81671-40020 Lens, Back-Up Lamp, RhBACK-UP LAMP, RH [11.1967 - 09.1982] VG2#,3# |
81671-40020 |
US $12.67 |
||
|
81684
|
81684
81674-40020
Gasket, Back-Up Lamp Body, Rh
[11.1967 - 09.1982] VG2#,3# |
81674-40020 |
— | ||
|
8155921021
|
8155921021
81559-21021
Moulding, Rear Combination Lamp, Rh
|
81559-21021 |
— | ||
|
9326994020
|
9326994020
93269-94020 Moulding, Rear Combination Lamp, Rh |
93269-94020 |
US $2.18 |
||
| replacement | |||||
|
9326994020
|
9326994020
81559-10050 Screw |
81559-10050 |
US $5.12 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
