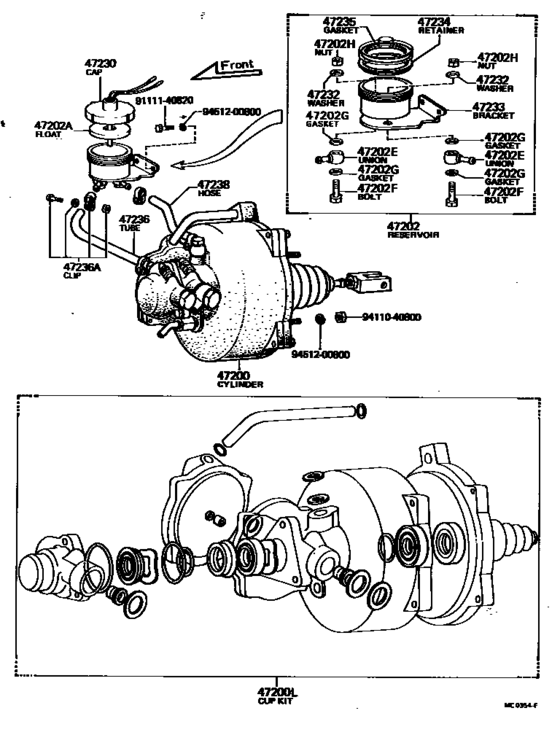

Brake Master Cylinder ([11.1967 - 03.1969] (6711-6903)) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47200
|
47200
47200-40030 Cylinder Assy, Brake Master[11.1967 - 05.1968] VG20 |
47200-40030 |
US $851.76 |
||
| replacement | |||||
|
47200
|
47200
47200-40031
Cylinder Assy, Brake Master
[11.1967 - 05.1968] VG20 |
47200-40031 |
— | ||
|
47200
|
47200
47200-40031
Cylinder Assy, Brake Master
[05.1968 - 03.1969] VG20 |
47200-40031 |
— | ||
|
47200L
|
47200L
04472-40020
Cup Kit, Brake Master, W/booster
[11.1967 - 05.1968] VG20 |
04472-40020 |
— | ||
|
47200L
|
47200L
04472-40021
Cup Kit, Brake Master, W/booster
[05.1968 - 03.1969] VG20 |
04472-40021 |
— | ||
|
47202
|
47202
47202-40010
Reservoir Sub-Assy, Brake Master Cylinder
[11.1967 - 03.1969] VG20 |
47202-40010 |
— | ||
| replacements | |||||
|
47202
|
47202
90445-12442 Tube, Reservoir Brake[11.1967 - 03.1969] VG20 |
90445-12442 |
US $2.48 |
||
|
47202
|
47202
90445-12441
Hose, Master Cylinder Bridge
[11.1967 - 03.1969] VG20 |
90445-12441 |
— | ||
|
47202
|
47202
47202-40013
Reservoir Sub-Assy, Brake Master Cylinder
[11.1967 - 03.1969] VG20 |
47202-40013 |
— | ||
|
47202
|
47202
47202-40012 Reservoir Sub-Assy, Brake Master Cylinder[03.1969 - 05.1969] VG20 |
47202-40012 |
US $42.95 |
||
| replacement | |||||
|
47202
|
47202
47202-40013
Reservoir Sub-Assy, Brake Master Cylinder
[03.1969 - 05.1969] VG20 |
47202-40013 |
— | ||
|
47202
|
47202
47202-40013
Reservoir Sub-Assy, Brake Master Cylinder
[05.1969 - 02.1970] VG20 |
47202-40013 |
— | ||
|
47202
|
47202
47202-40014 Reservoir Sub-Assy, Brake Master Cylinder[02.1970 - 09.1971] VG20 |
47202-40014 |
US $165.98 |
||
| replacement | |||||
|
47202
|
47202
47202-40016
Reservoir Sub-Assy, Brake Master Cylinder
[02.1970 - 09.1971] VG20 |
47202-40016 |
— | ||
|
47202
|
47202
47202-40015 Reservoir Sub-Assy, Brake Master Cylinder[09.1971 - 02.1973] VG20 |
47202-40015 |
US $165.98 |
||
| replacement | |||||
|
47202
|
47202
47202-40016
Reservoir Sub-Assy, Brake Master Cylinder
[09.1971 - 02.1973] VG20 |
47202-40016 |
— | ||
|
47202A
|
47202A
83461-40010
Float, Master Cylinder Reservoir
[11.1967 - 01.1969] VG20 |
83461-40010 |
— | ||
| replacement | |||||
|
47202A
|
47202A
83461-40011
Float, Master Cylinder Reservoir
[11.1967 - 01.1969] VG20 |
83461-40011 |
— | ||
|
47202A
|
47202A
83461-40011
Float, Master Cylinder Reservoir
[01.1969 - 02.1973] VG20 |
83461-40011 |
— | ||
|
47202E
|
47202E
90405-08094
Union(For Master Cylinder Reservoir Set)
[11.1967 - 03.1969] VG20 |
90405-08094 |
— | ||
|
47202E
|
47202E
90407-08035
Union(For Master Cylinder Reservoir Set)
[03.1969 - 02.1970] VG20 |
90407-08035 |
— | ||
|
47202F
|
47202F
90401-14042
Bolt, Union(For Master Cylinder Reservoir Set)
[11.1967 - 05.1969] VG20 |
90401-14042 |
— | ||
|
47202G
|
47202G
90430-14156 Gasket(For Oil Pump)[05.1969 - 02.1970] VG20 |
90430-14156 |
US $2.04 |
||
|
47202H
|
47202H
90170-14108
Nut, Hexagon(For Master Cylinder Reservoir Set)
[11.1967 - 02.1970] VG20 |
90170-14108 |
— | ||
|
47230
|
47230
83460-40011
Cap Assy, Brake Master Cylinder Reservoir Filler
[11.1967 - 09.1971] VG20 |
83460-40011 |
— | ||
| replacements | |||||
|
47230
|
47230
47234-40011
Retainer, Reservoir Gasket
[11.1967 - 09.1971] VG20 |
47234-40011 |
— | ||
|
47230
|
47230
83460-40012
Cap Assy, Brake Master Cylinder Reservoir Filler
[11.1967 - 09.1971] VG20 |
83460-40012 |
— | ||
|
47230
|
47230
83460-40012
Cap Assy, Brake Master Cylinder Reservoir Filler
[09.1971 - 05.1975] VG2# |
83460-40012 |
— | ||
|
47232
|
47232
47232-40010
Washer, Brake Reservoir Set Bolt
[11.1967 - 02.1970] VG20 |
47232-40010 |
— | ||
|
47233
|
47233
47233-40010 Bracket, Reservoir[11.1967 - 03.1969] VG20 |
47233-40010 |
US $27.66 |
||
| replacement | |||||
|
47233
|
47233
47233-40011
Bracket, Reservoir
[11.1967 - 03.1969] VG20 |
47233-40011 |
— | ||
|
47233
|
47233
47233-40012
Bracket, Reservoir
[03.1969 - 05.1969] VG20 |
47233-40012 |
— | ||
|
47233
|
47233
47233-40013
Bracket, Reservoir
[05.1969 - 02.1970] VG20 |
47233-40013 |
— | ||
|
47233
|
47233
47233-40014
Bracket, Reservoir
[02.1970 - 05.1975] VG2# |
47233-40014 |
— | ||
|
47234
|
47234
47234-40010
Retainer, Reservoir Gasket
[11.1968 - 09.1971] VG20 |
47234-40010 |
— | ||
|
47234
|
47234
47234-40011
Retainer, Reservoir Gasket
[09.1971 - 05.1975] VG2# |
47234-40011 |
— | ||
|
47235
|
47235
47235-40010 Gasket, Reservoir[11.1968 - 09.1982] VG2#,3# |
47235-40010 |
US $5.68 |
||
|
47235
|
47235
90430-76155 Gasket, Reservoir[11.1967 - 11.1968] VG20 |
90430-76155 |
US $5.82 |
||
| replacements | |||||
|
47235
|
47235
47234-40010
Retainer, Reservoir Gasket
[11.1967 - 11.1968] VG20 |
47234-40010 |
— | ||
|
47235
|
47235
47235-40010 Gasket, Reservoir[11.1967 - 11.1968] VG20 |
47235-40010 |
US $5.68 |
||
|
47236
|
47236
90445-12442 Tube, Reservoir Brake[03.1969 - 02.1970] VG20 |
90445-12442 |
US $2.48 |
||
|
47236
|
47236
90445-16547 Tube, Reservoir Brake[02.1970 - 05.1975] VG2# |
90445-16547 |
US $3.20 |
||
|
47236
|
47236
90446-10173 Tube, Reservoir Brake[11.1967 - 03.1969] VG20 |
90446-10173 |
US $2.18 |
||
| replacement | |||||
|
47236
|
47236
90445-13003 Tube, Reservoir Brake[11.1967 - 03.1969] VG20 |
90445-13003 |
US $4.95 |
||
|
47236A
|
47236A
90460-10054
Clip(For Reservoir Tube)
[11.1967 - 03.1969] VG20 |
90460-10054 |
— | ||
|
47236A
|
47236A
90460-16069
Clip(For Reservoir Tube)
[02.1970 - 05.1975] VG2# |
90460-16069 |
— | ||
|
47236A
|
47236A
90467-11012 Clip(For Reservoir Tube)[03.1969 - 02.1970] VG20 |
90467-11012 |
US $2.18 |
||
| replacement | |||||
|
47236A
|
47236A
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[03.1969 - 02.1970] VG20 |
90467-11085 |
from US $0.86 |
||
|
47238
|
47238
90445-12441
Hose, Master Cylinder Bridge
[03.1969 - 02.1970] VG20 |
90445-12441 |
— | ||
|
47238
|
47238
90445-16546 Hose, Master Cylinder Bridge[02.1970 - 05.1975] VG2# |
90445-16546 |
US $4.37 |
||
|
47238
|
47238
90446-10174
Hose, Master Cylinder Bridge
[11.1967 - 03.1969] VG20 |
90446-10174 |
— | ||
|
9111140820
|
9111140820
91111-40820
New Genuine Part
|
91111-40820 |
— | ||
| replacement | |||||
|
9111140820
|
9111140820
91111-50820 New Genuine Part |
91111-50820 |
from US $2.91 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
